Manhattan

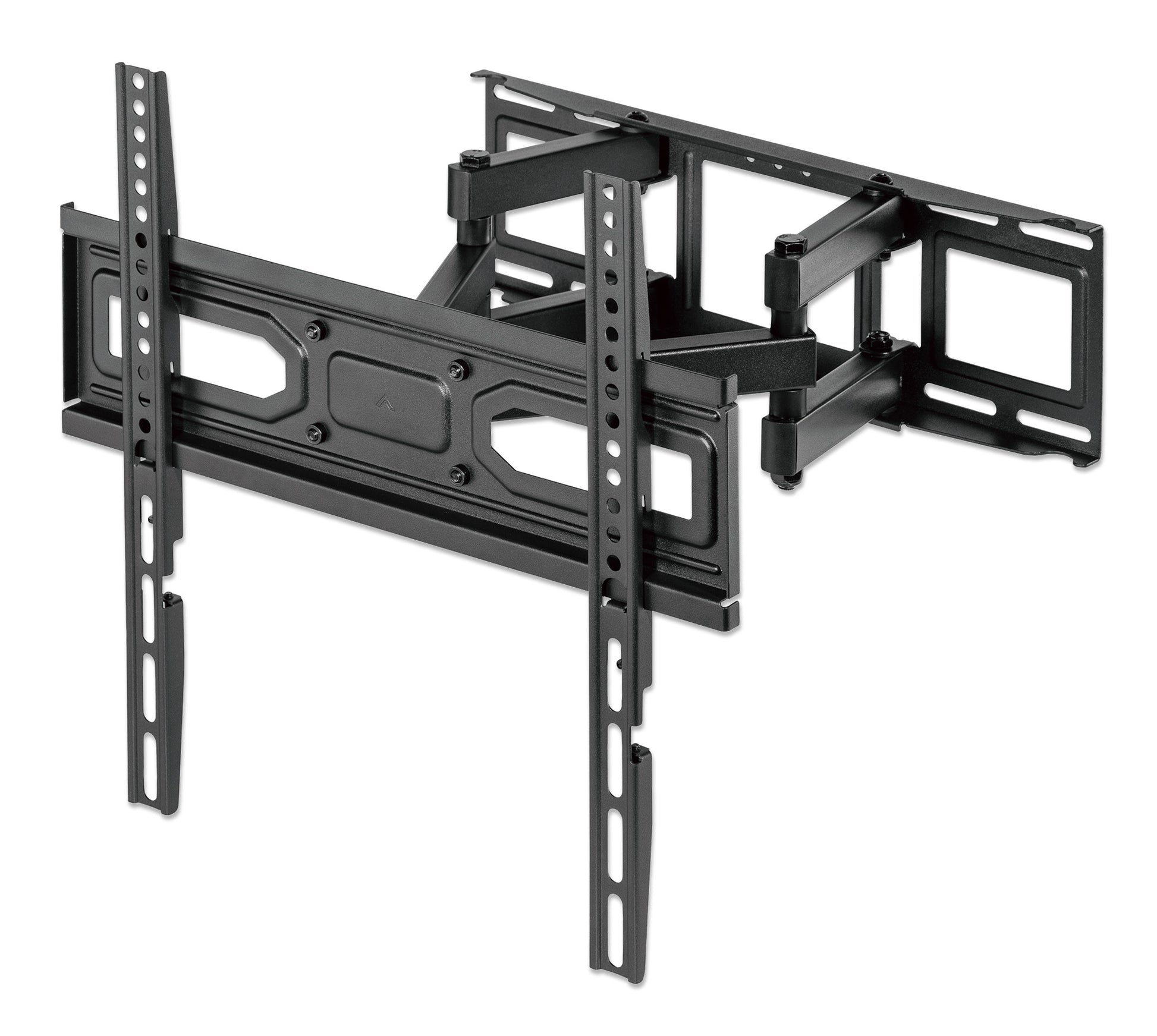

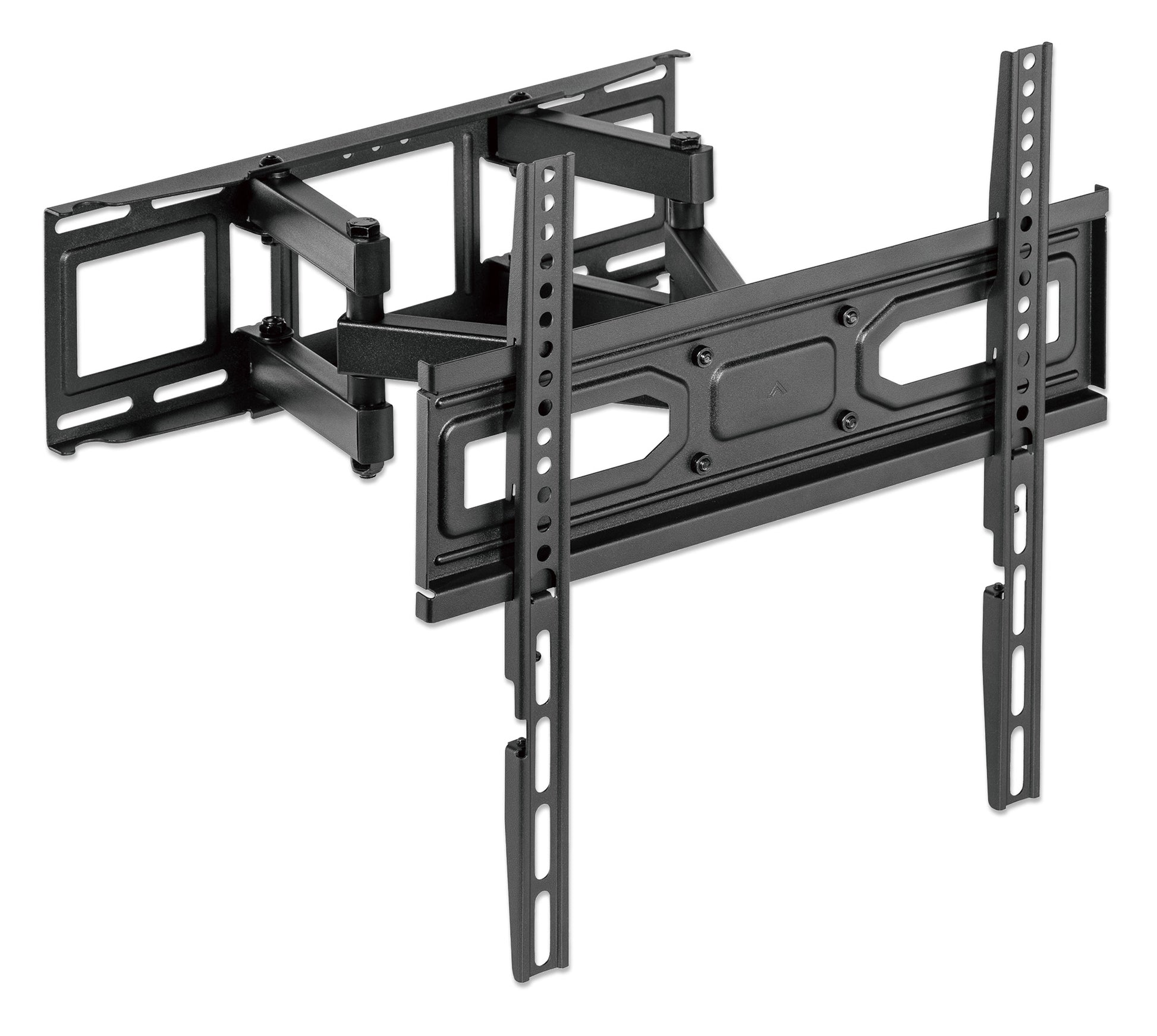

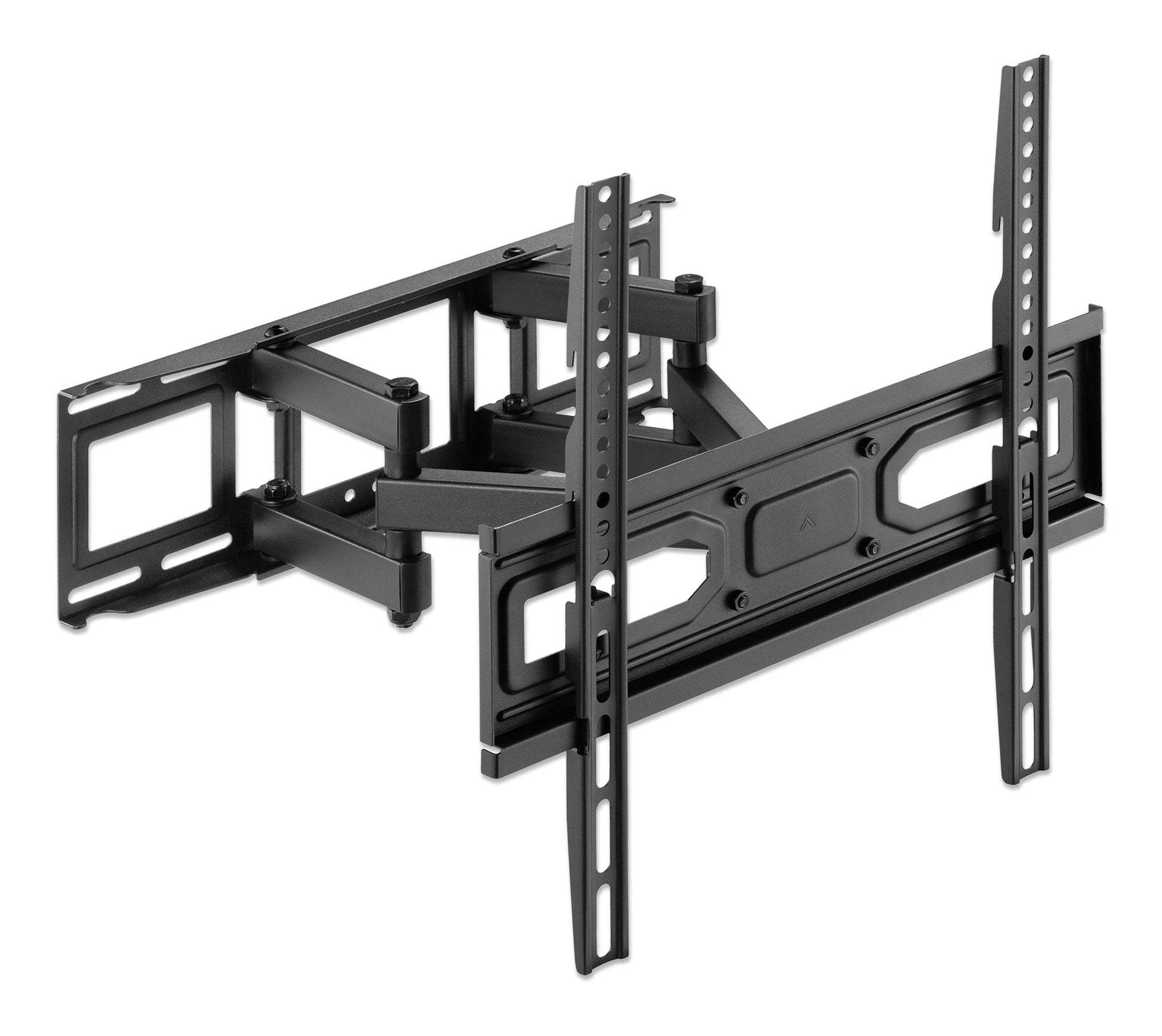

Full-Motion TV Wall Mount with Post-Leveling Adjustment, for 32" to 70" Displays

Holds One 32" to 70" TV up to 40 kg (88 lbs.), Adjustment Options for Tilt, Swivel and Post-installation Leveling, Black

Highlights

Supports one flat or curved 32" to 70" TV up to 40 kg (88 lbs.)
Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment

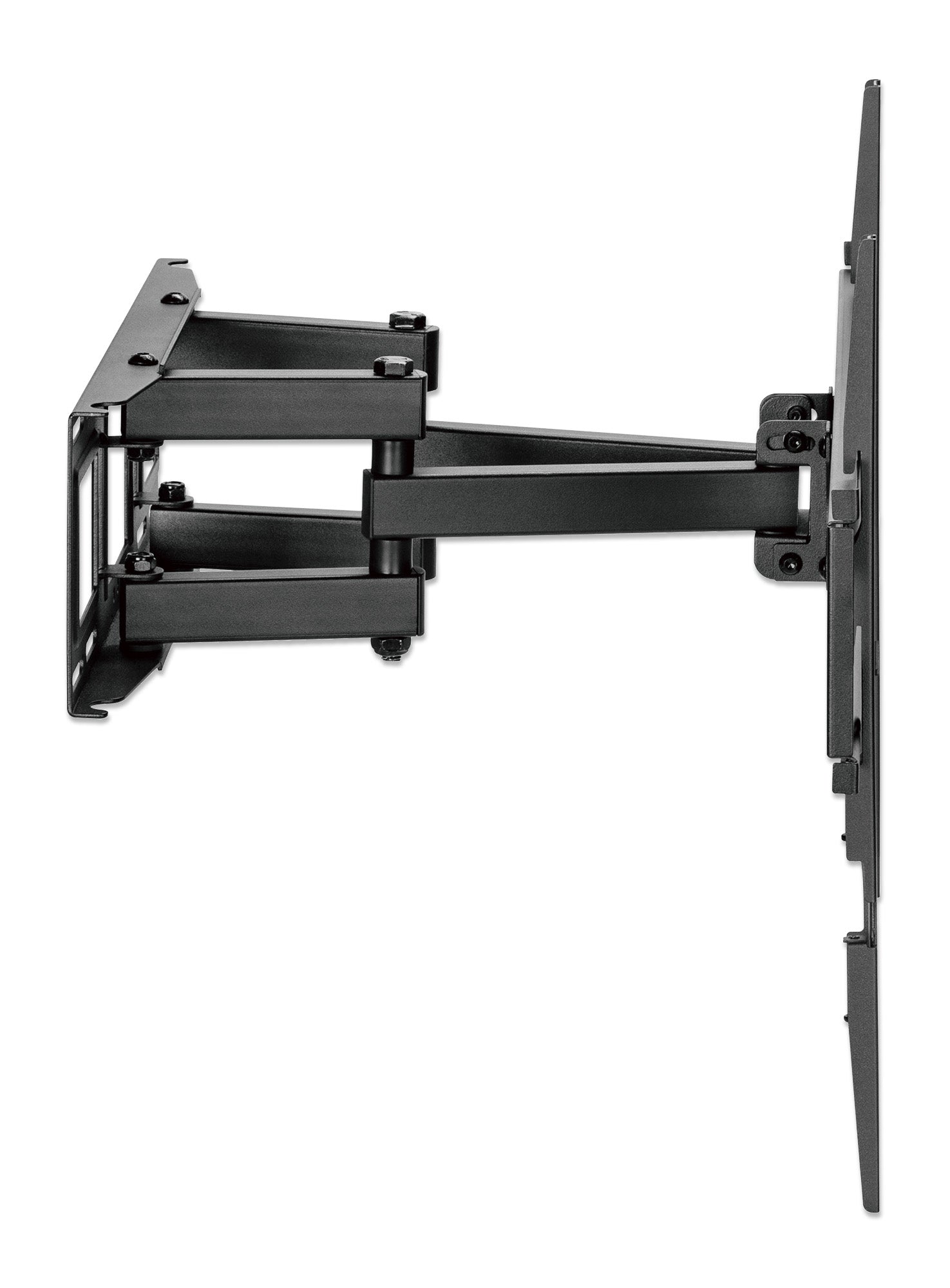

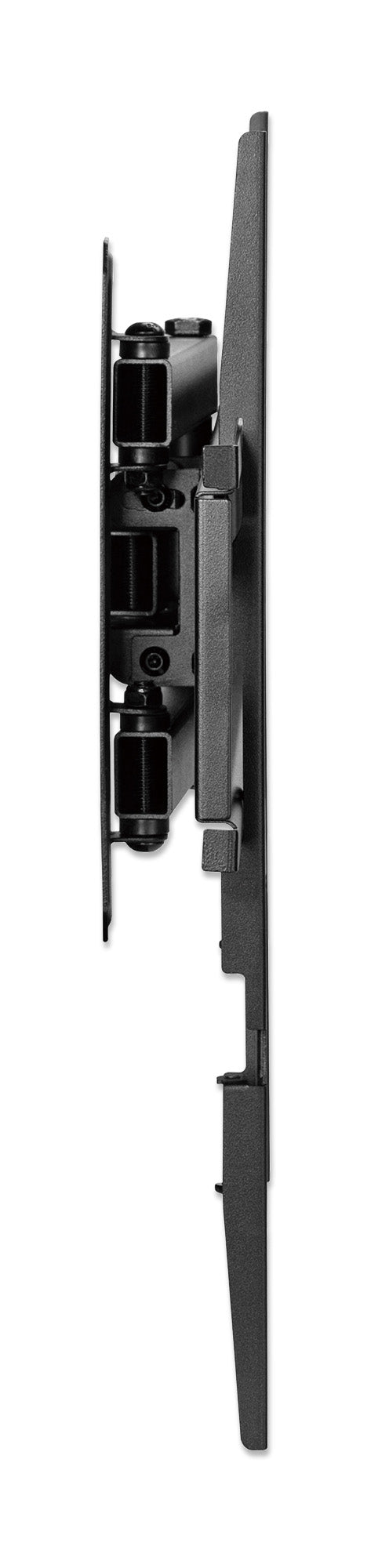

Holds TV 67 to 355 mm (2.6 to 14 in.) from wall

SKU: 462433

[ view high resolution images ]

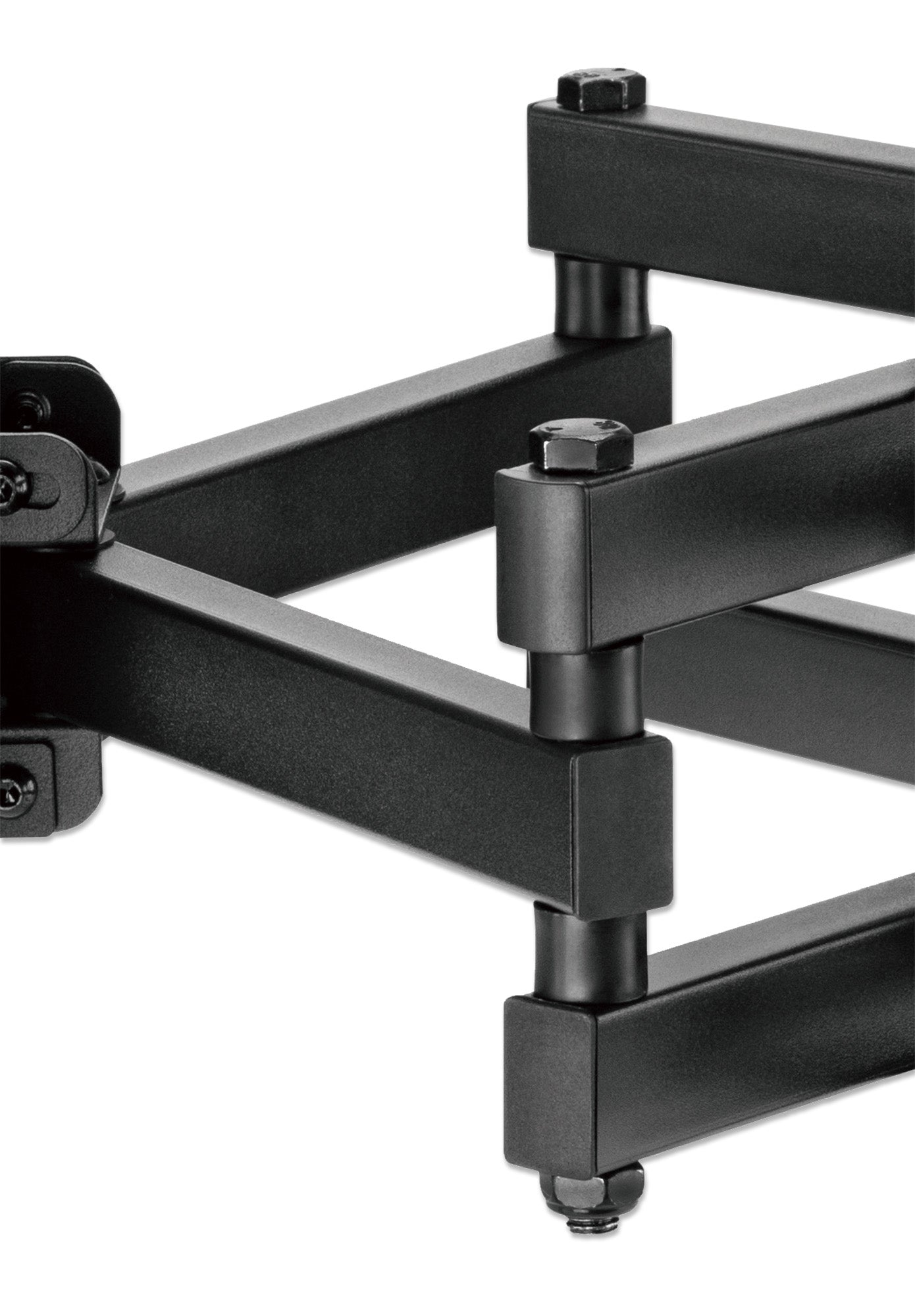

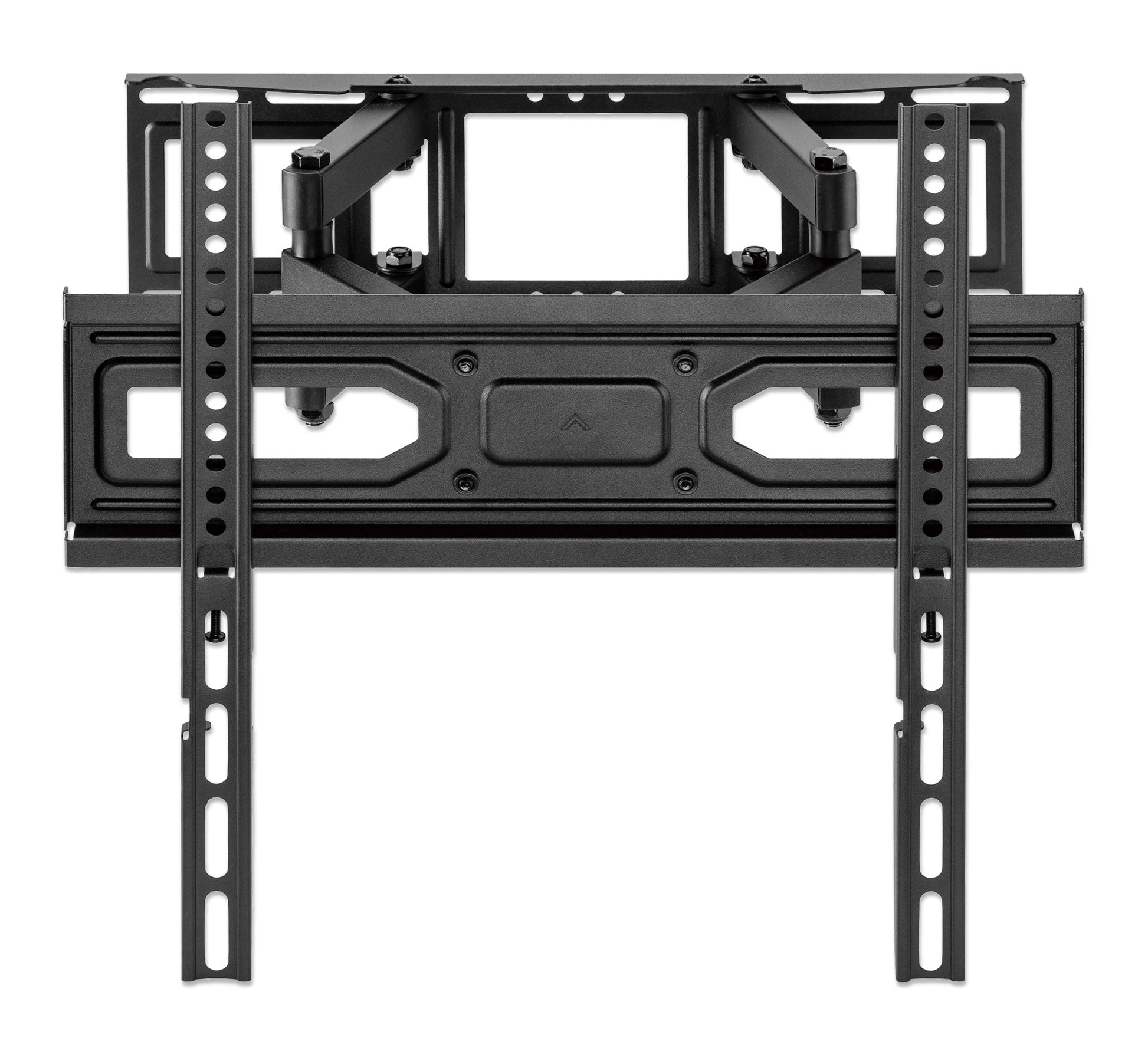

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space

This strong, full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 70" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.

Supports one flat or curved 32" to 70" TV up to 40 kg (88 lbs.)
Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
Holds TV 67 to 355 mm (2.6 to 14 in.) from wall
Heavy-duty steel construction with powder coating
Includes attachable bubble level

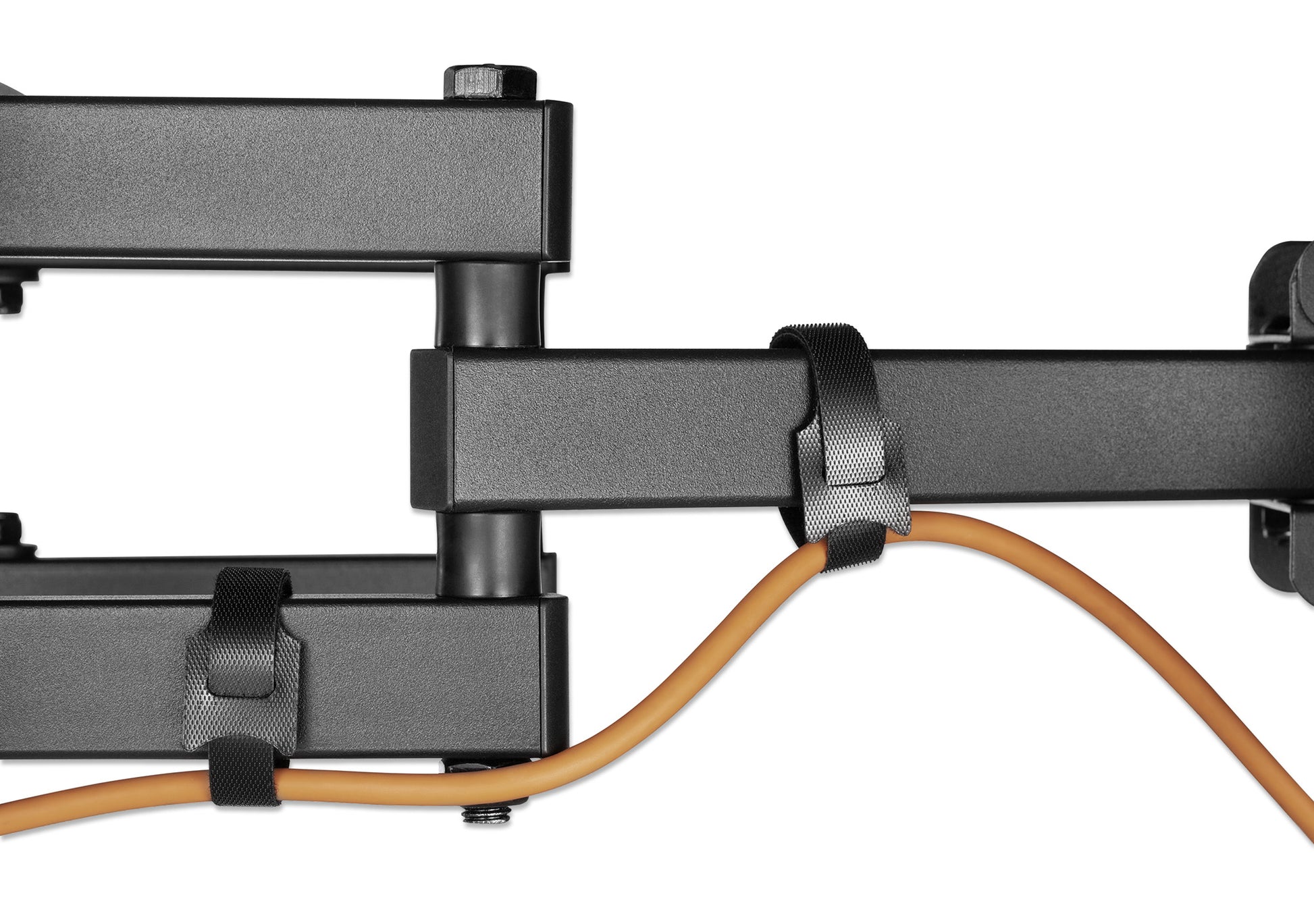

Built-in cable management to minimize clutter
Easy installation; ideal for home, office and commercial applications
Meets VESA standards from 100x100 to 400x400 (e.g., 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400)
Lifetime warranty

Designed for most 32" to 70" flat and curved screens
Weight capacity: 40 kg (88 lbs.)
Tilt: +3 to -15°
Swivel: +/-60°
Post-installation leveling adjustment: +/-3°

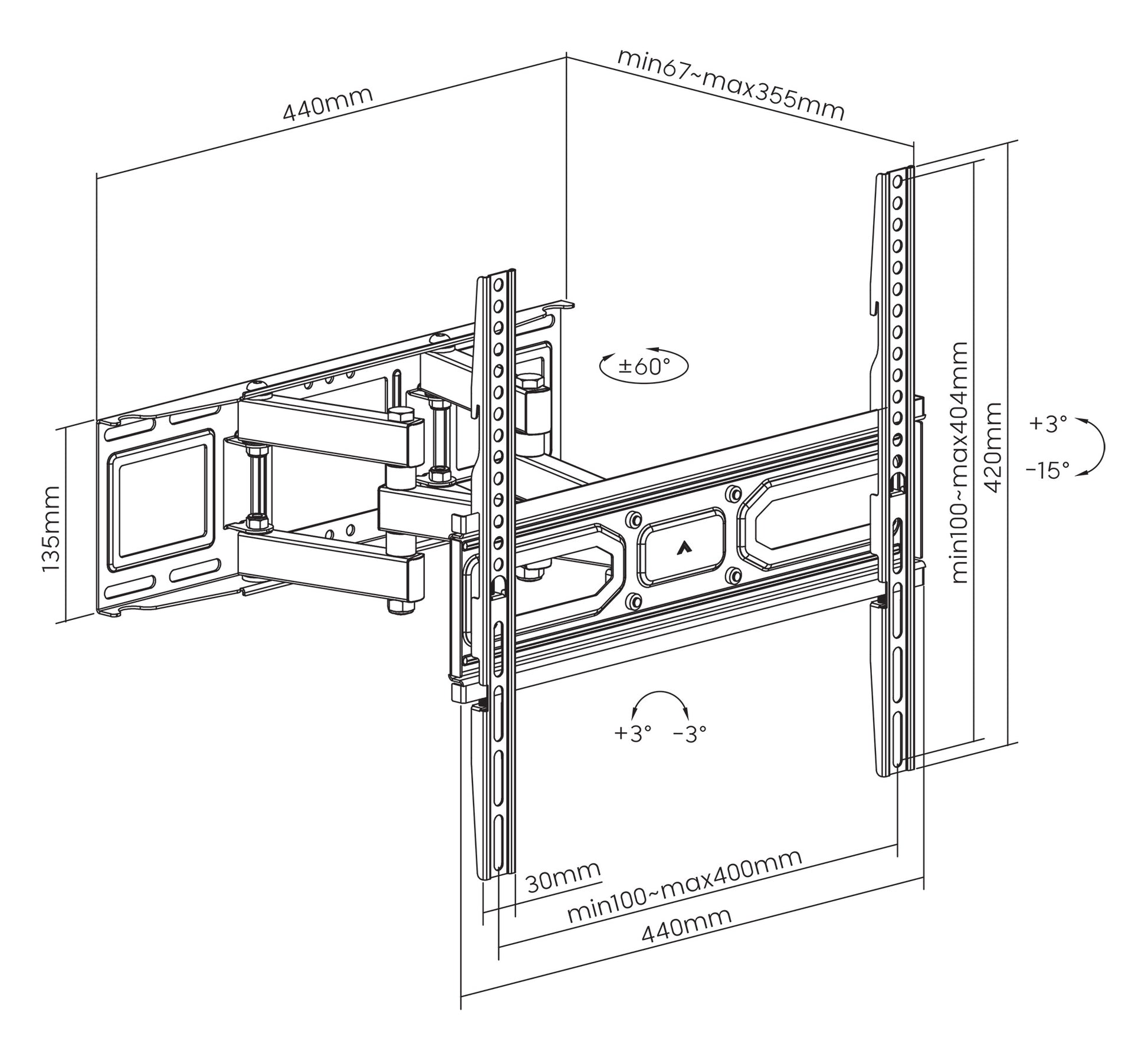

Dimensions (L x W x H): 420 x 440 x 355 mm (16.54 x 17.32 x 13.98 in.)
Wall profile: 67 to 355 mm (2.6 to 14 in.)
Net weight: 3.33 kg (7.34 lbs.)
Gross weight: 3.56 kg (7.85 lbs.)
Material: steel
VESA standards: 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400
Full-Motion TV Wall Mount with Post-Leveling Adjustment
Attachable bubble level
Installation hardware with instructions
