Manhattan

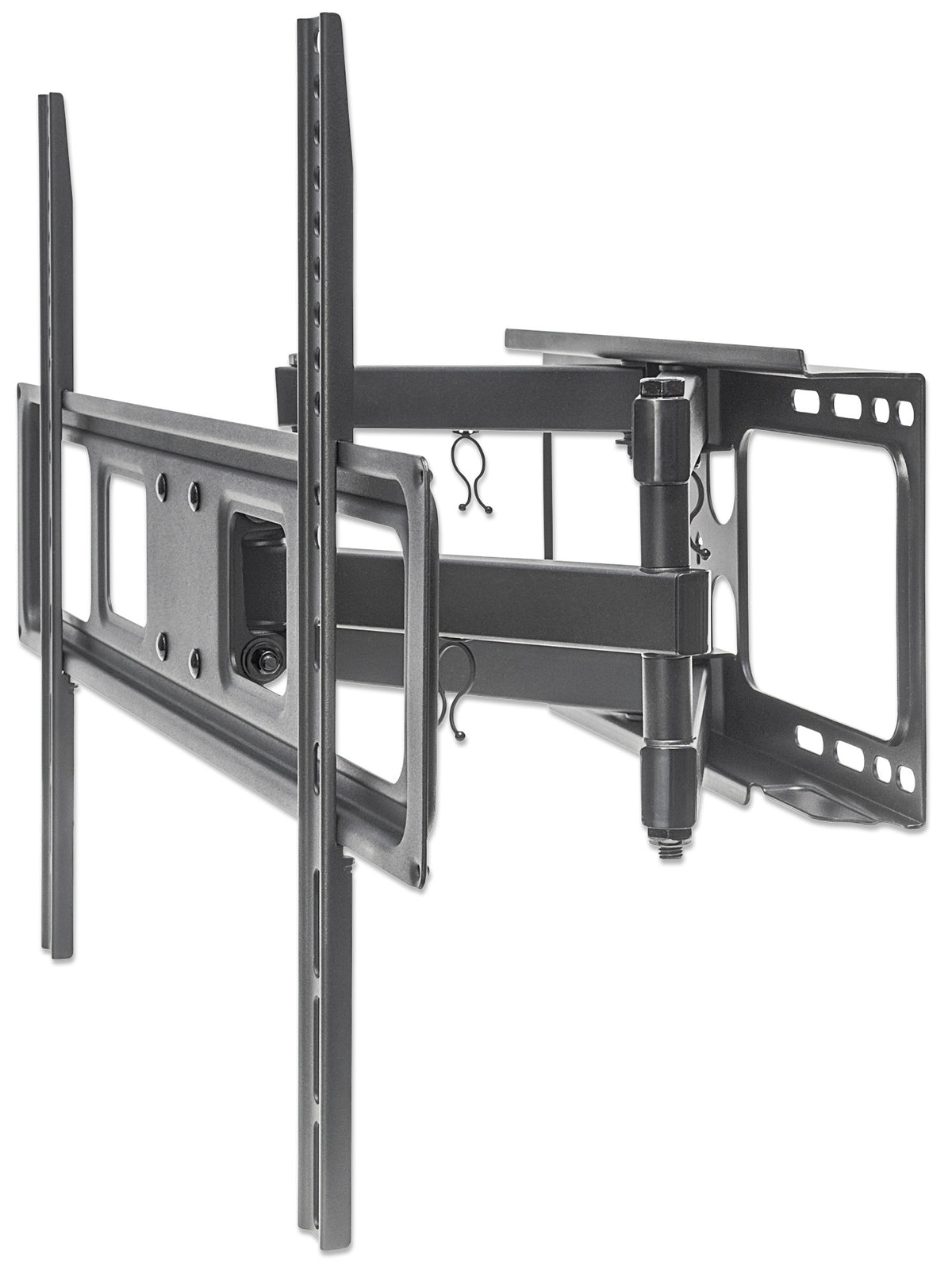

Full-Motion TV Wall Mount with Post-Leveling Adjustment, for 37" to 70" Displays

Holds One 37" to 70" TV up to 40 kg (88 lbs.), Adjustment Options for Tilt, Swivel and Post-installation Leveling, Black

Highlights

Supports one flat or curved 37" to 70" TV up to 40 kg (88 lbs.)
Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall

SKU: 461351

[ view high resolution images ]

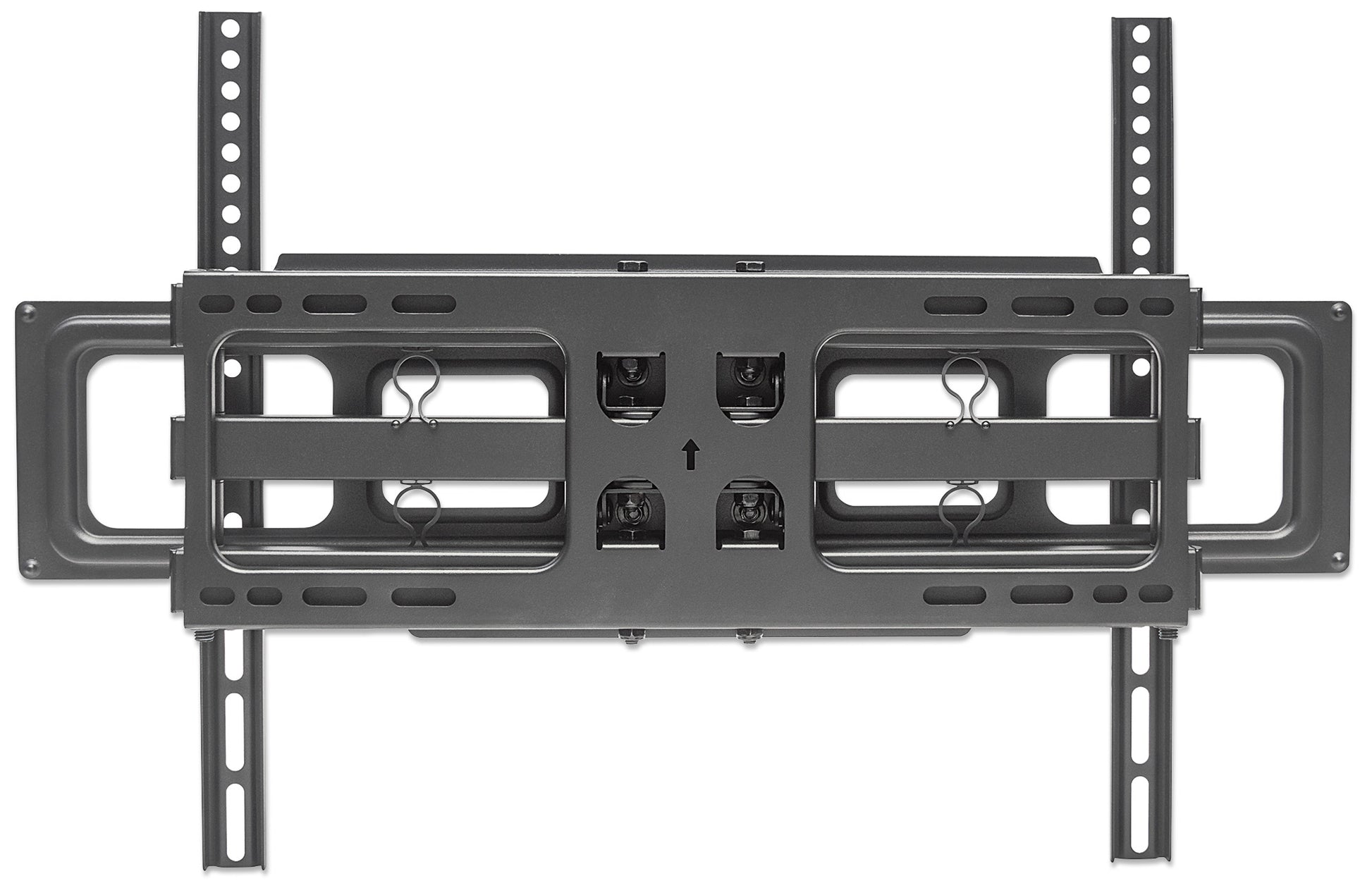

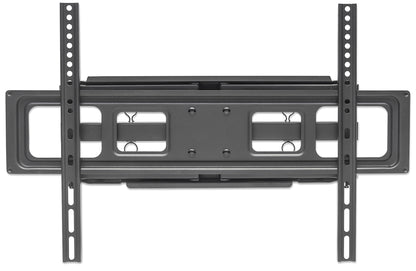

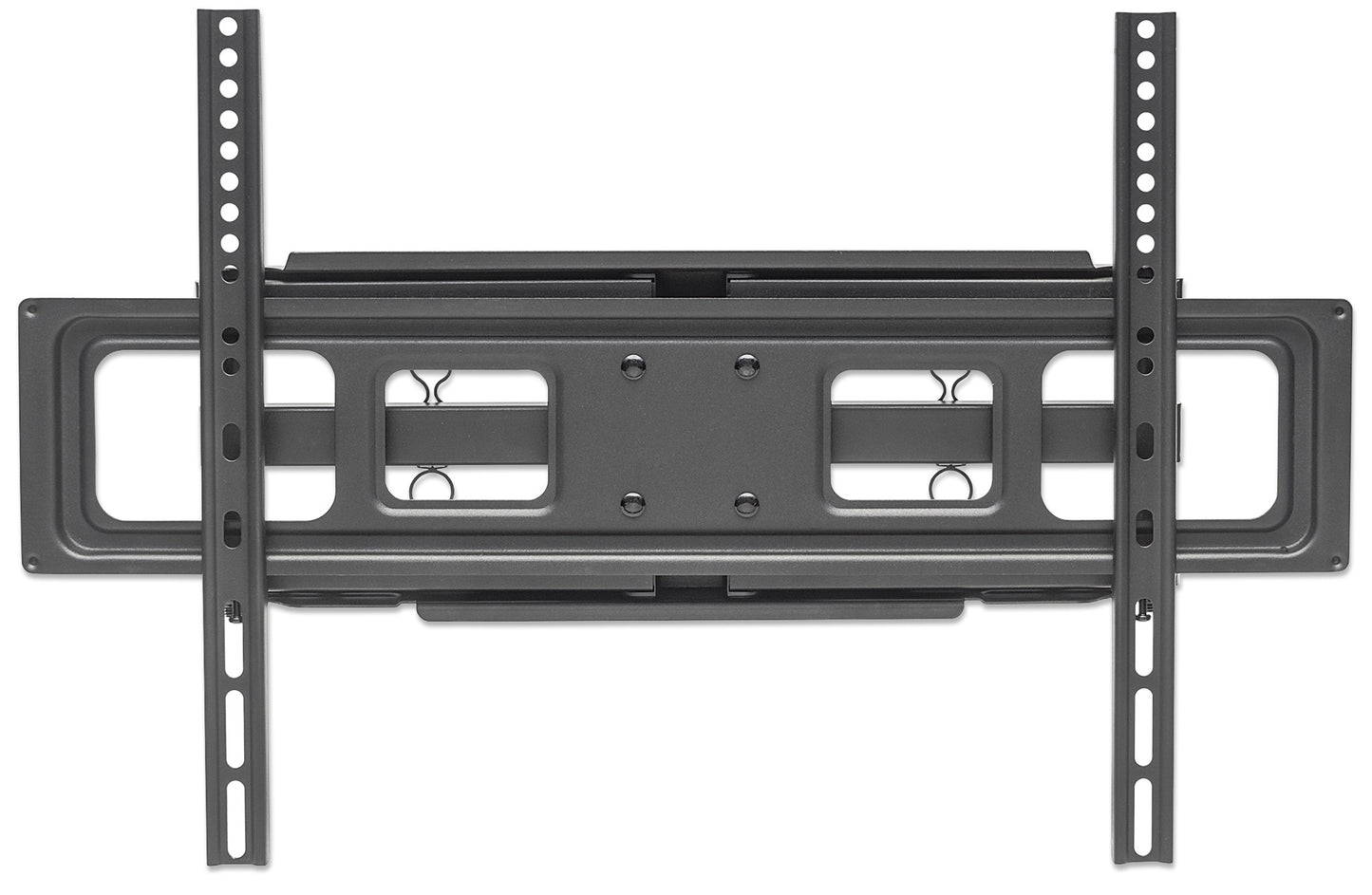

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space

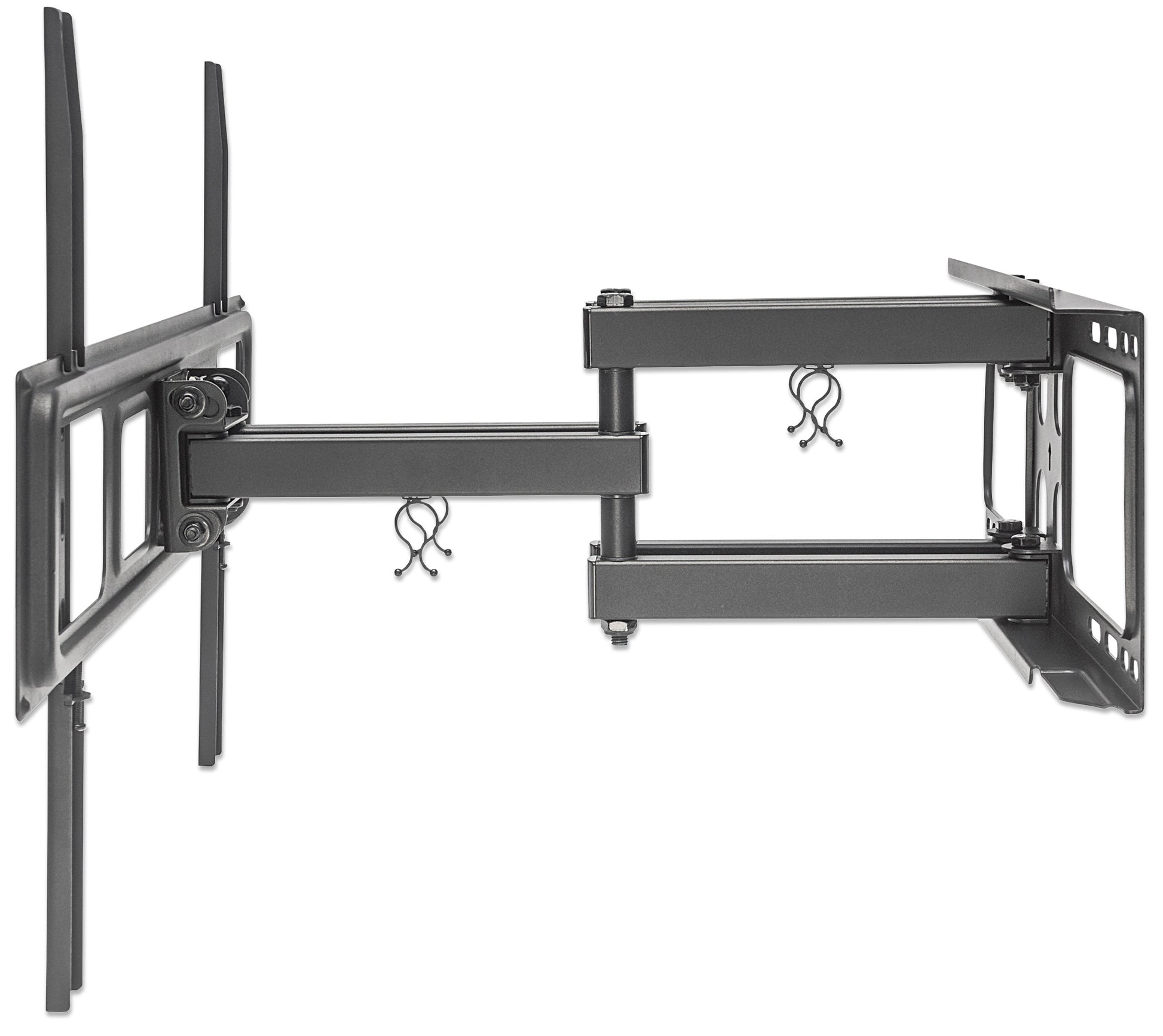

This strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15° tilt and +/-60° swivel adjustment for optimized views. It fits flat and curved LCD, OLED or plasma TVs up to 70" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.

Supports one flat or curved 37" to 70" TV up to 40 kg (88 lbs.)
Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall
Heavy-duty steel construction with powder coating
Built-in cable management to minimize clutter
Easy installation ideal for home, office and commercial applications
Meets VESA standards 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Lifetime warranty

Designed for most 37" to 70" flat and curved screens
Weight capacity: 40 kg (88 lbs.)

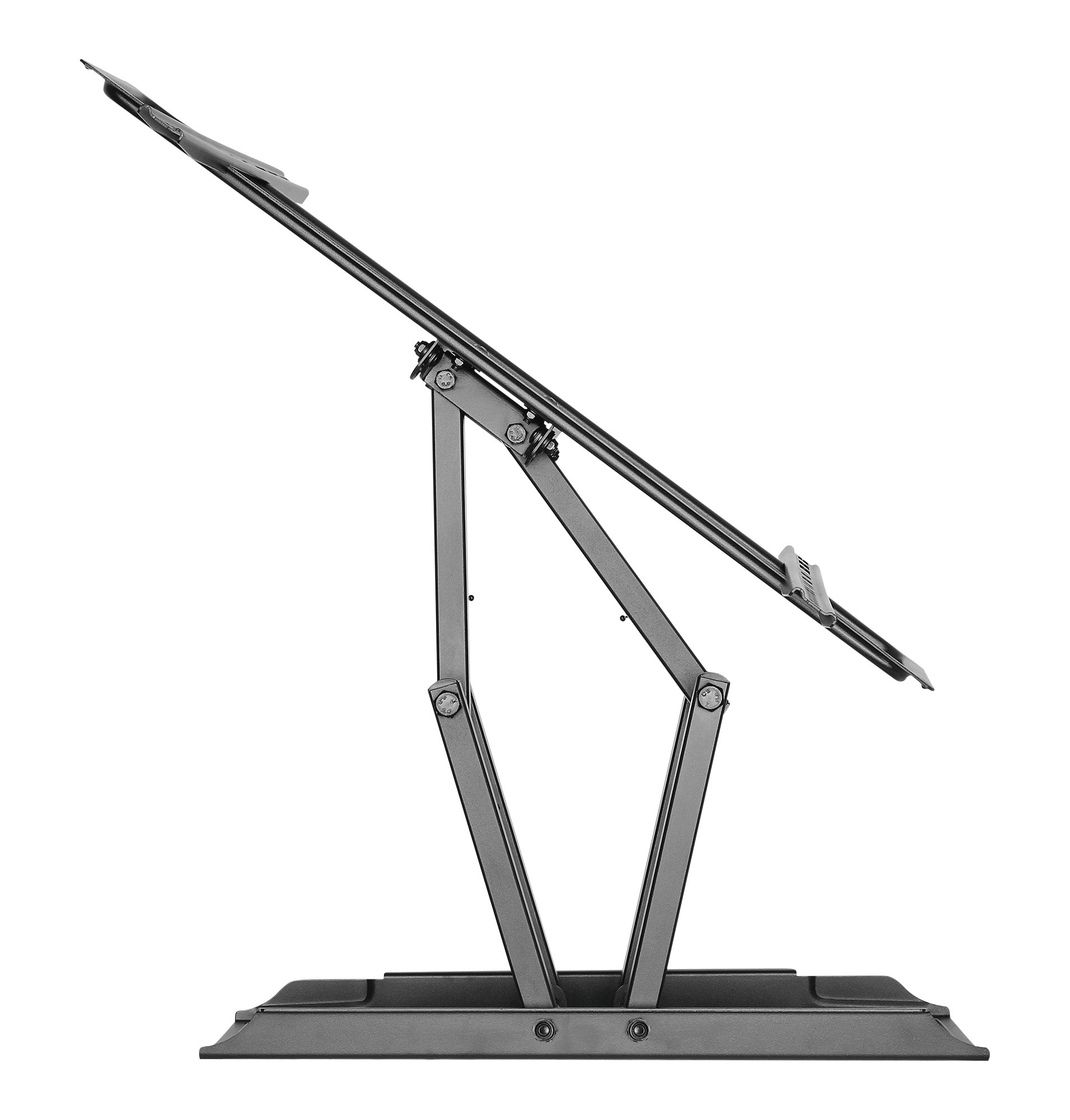

Tilt: +5/-15°
Swivel: +/-60°
Post-installation leveling adjustment: +/-3°
Dimensions (L x W x H): 464 x 655 x 420 mm (18.27 x 25.79 x 16.54 in.)

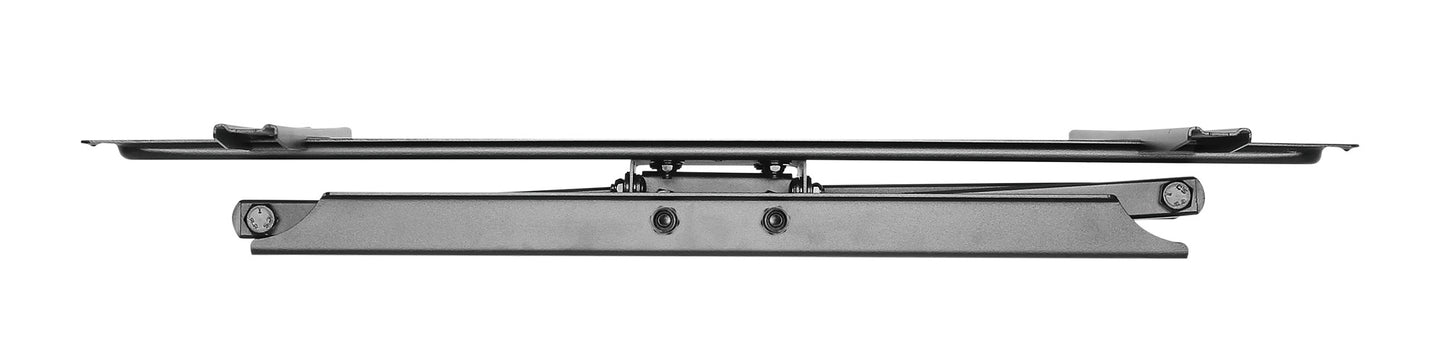

Wall profile: 53 to 464 mm (2.1 to 18.3 in.)
Net weight: 4.61 kg (10.16 lbs.)
Gross weight: 5.28 kg (11.64 lbs.)
Material: steel
VESA standards: 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Full-Motion TV Wall Mount with Post-Leveling Adjustment
Installation hardware with instructions
