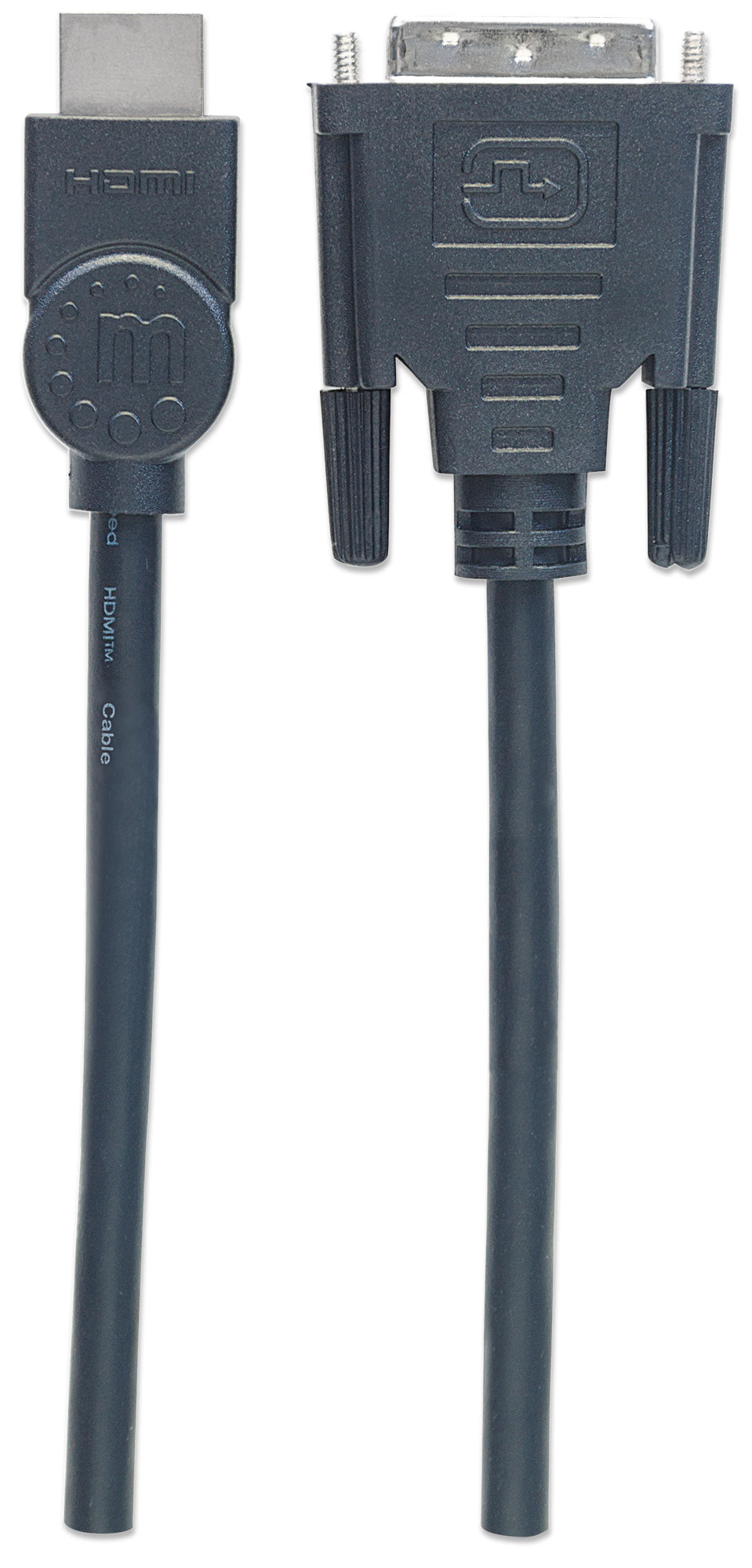

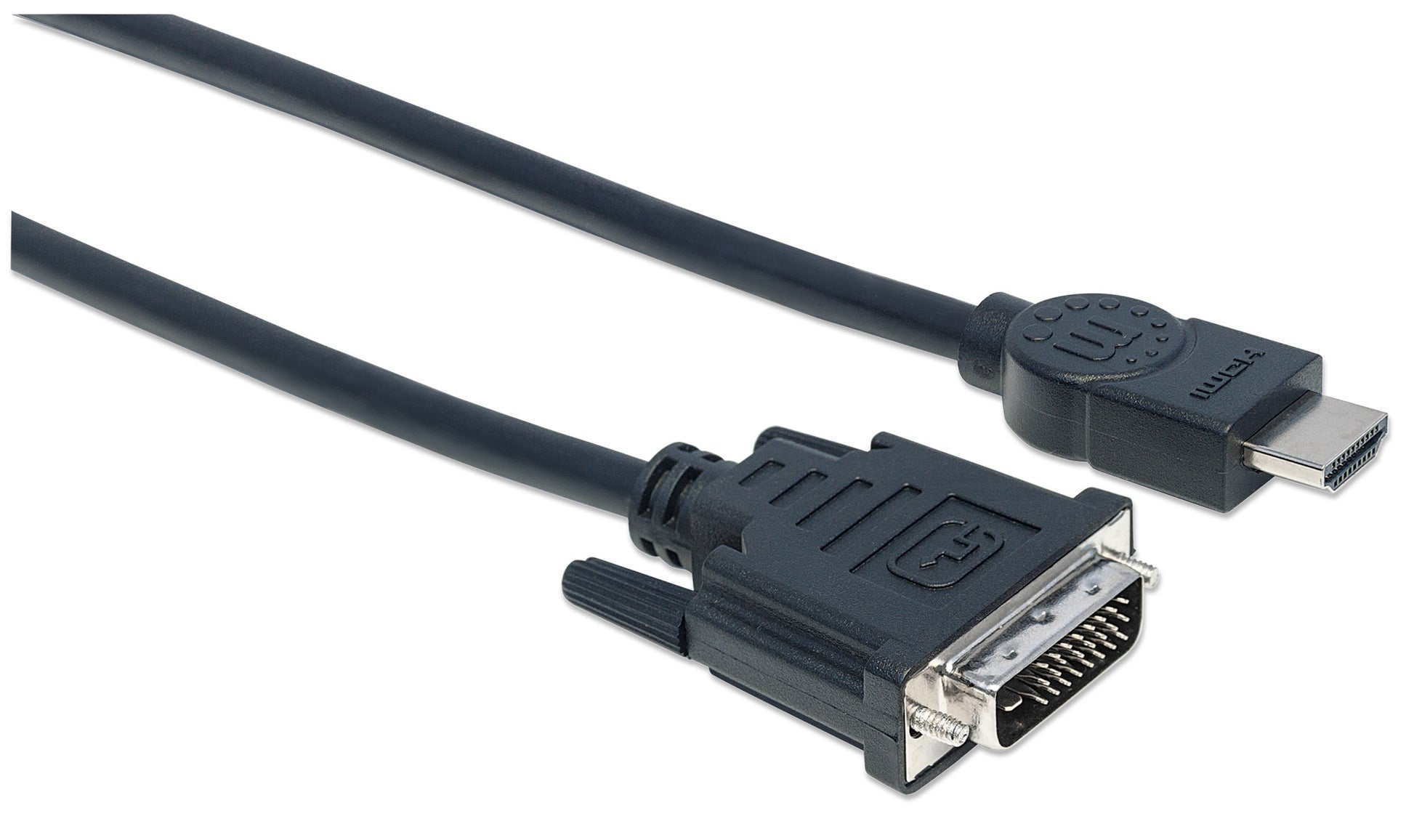

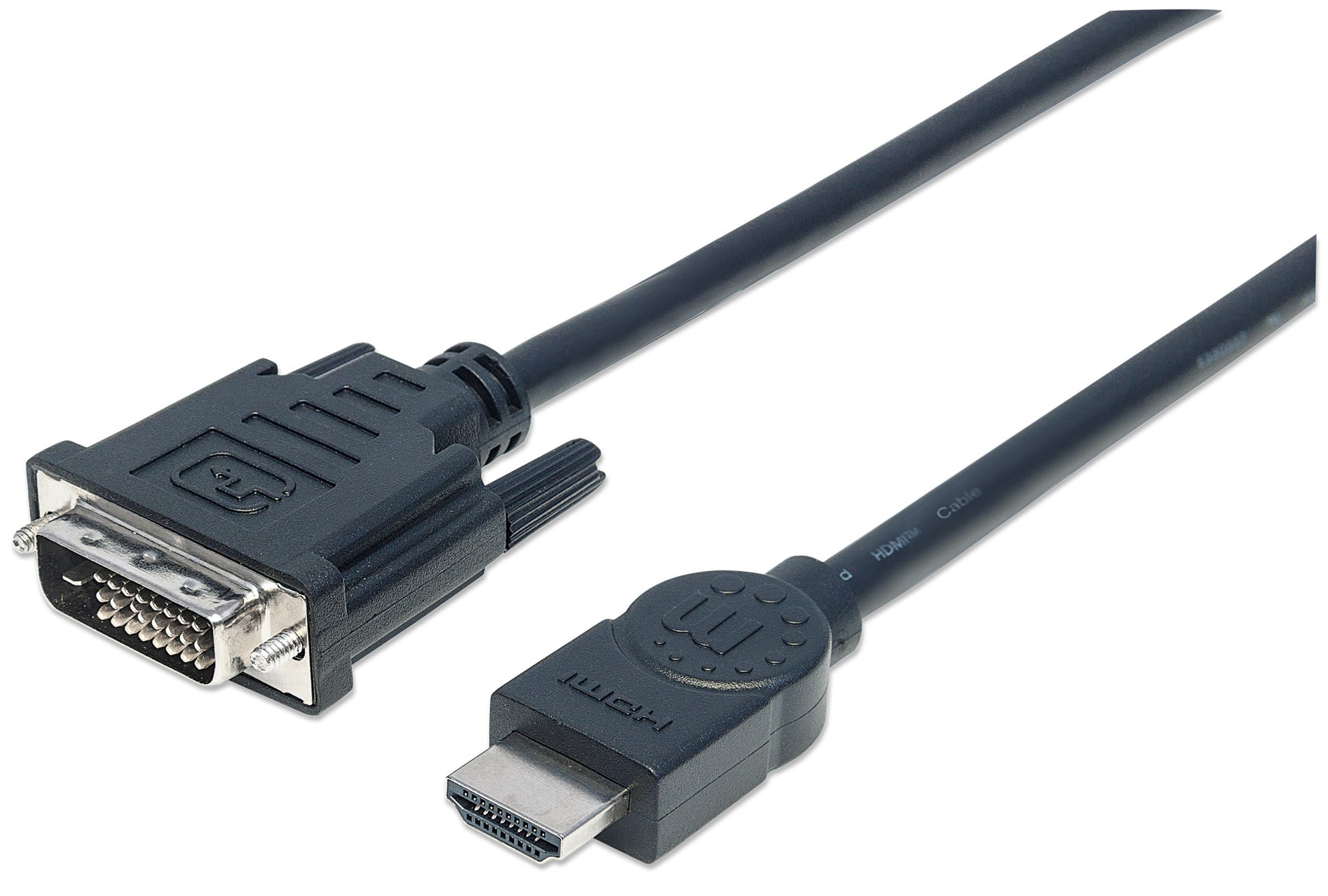

HDMI to DVI-D Cable

Superior connections for quality digital video performance

Manhattan HDMI to DVI Cables help deliver the brightest, most accurate colors and sharpest detail when connecting high-definition televisions, LCD and plasma displays, digital satellite receivers, DVD players, digital projectors and other DVI- or HDMI-equipped display devices. Manhattan HDMI to DVI Cables are engineered and constructed of quality materials to deliver dependable transmissions in digital video applications. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced distortion.

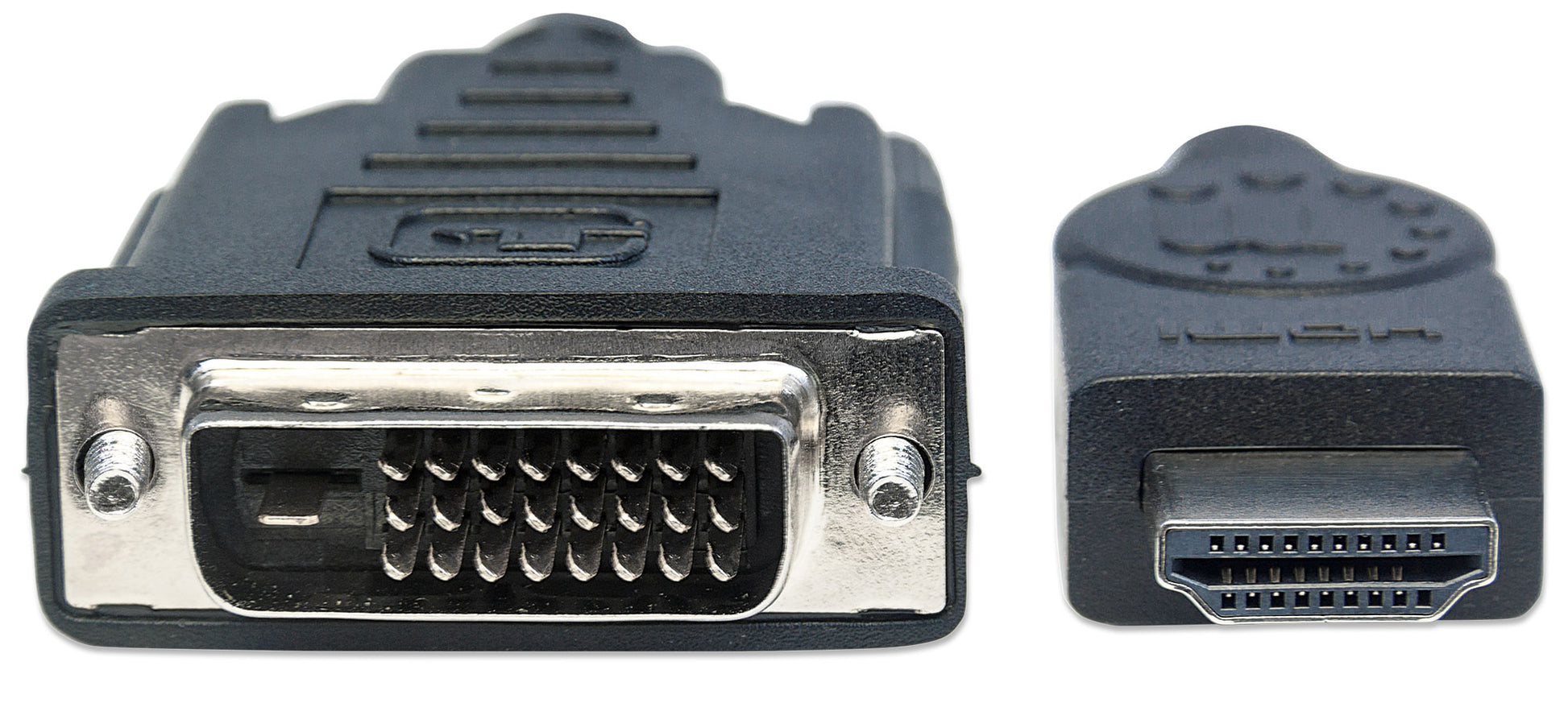

• HDMI 19-pin male to DVI-D 24+1 male gold-plated connections
• Connect between HDMI and DVI-D video source and display
• Supports existing HD (720p, 1080i and 1080p/60) enhanced (480p) and standard (NTSC or PAL) video formats
• Compatible with DVI-I and DVI-D interfaces
• Molded PVC boot
• Lifetime Warranty

Standards and Certifications
• Meets or exceeds existing HDMI and DVI-D standards
• Compatible with DVI-I and DVI-D interfaces
Contacts
• HDMI 19-pin male
• DVI-D 24+1-pin male
• Molded PVC boot
• Shielded
• 28 AWG connectors
Cable
• Shielded
• Length: 3 m (10 ft.)
• Current rating: 0.5 ADC
• Withstanding voltage: 300 VDC
• Insulation resistance: 10 MΩ
• Conductive resistance: 5 Ω
• Thermal plastic casing
Package Contents
• HDMI Cable

• Other Part Numbers

• Amazon ASIN: B00173E5FK
• EAN: 0766623372510
• UPC: 766623372510



• Physical Specifications

• Weight: 0.19 kg
• Dimensions: 3 m
• Carton Quantity: 40
• Carton Weight: 9.00 kg
