Manhattan

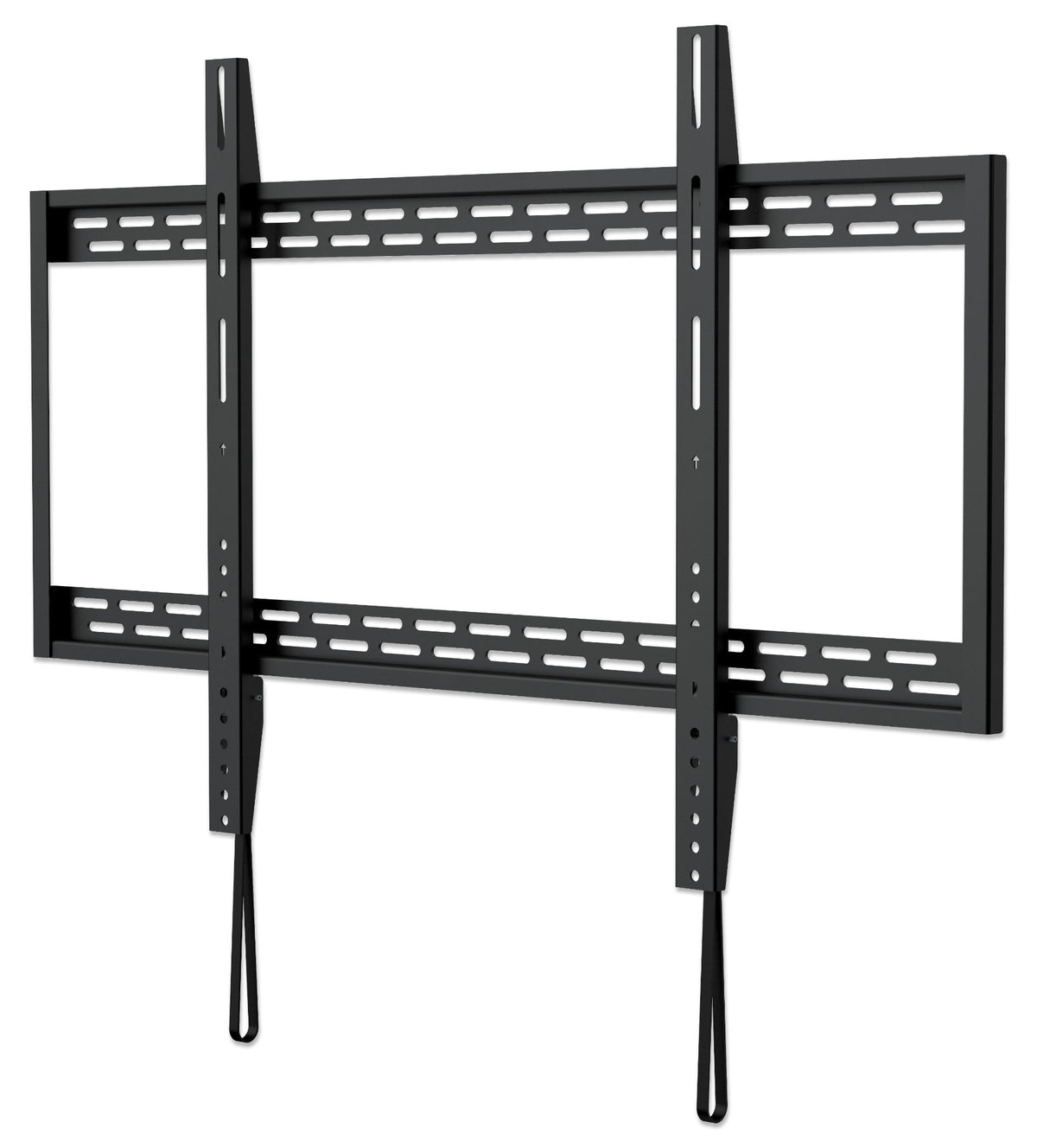

Heavy-Duty Low-Profile Large-Screen TV Wall Mount, for 60" to 100" Displays

Heavy-Duty Low-Profile Large-Screen TV Wall Mount, for 60" to 100" Displays

Holds One 60" to 100" TV up to 100 kg (220 lbs.), Fixed, Ultra Slim Design, Black

Highlights

  • Supports one 60" to 100" TV up to 100 kg (220 lbs.)
  • Heavy-duty steel construction with powder coating
  • Low-profile, fixed installation ideal for home, office and commercial applications

SKU: 461993

NDAA Compliant
[ view high resolution images ]

Heavy-Duty Low-Profile Large-Screen TV Wall Mount — a strong mount for flush-as-possible TV installations

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This mount extends only 32 mm (1.3 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat and curved LCD, LED or plasma TVs up to 100" and weighing up to 100 kg (220 lbs.). It offers VESA compliance up to 900x600. Intuitive snap-in spring locks with release cords let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.



  • Supports one 60" to 100" TV up to 100 kg (220 lbs.)
  • Heavy-duty steel construction with powder coating
  • Low-profile, fixed installation ideal for home, office and commercial applications

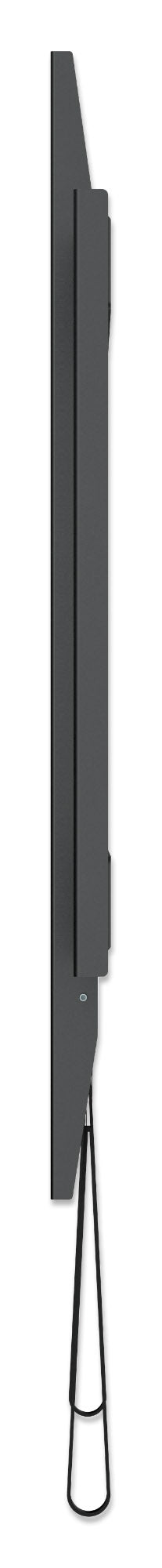

  • Extends TV 32 mm (1.3 in.) from wall

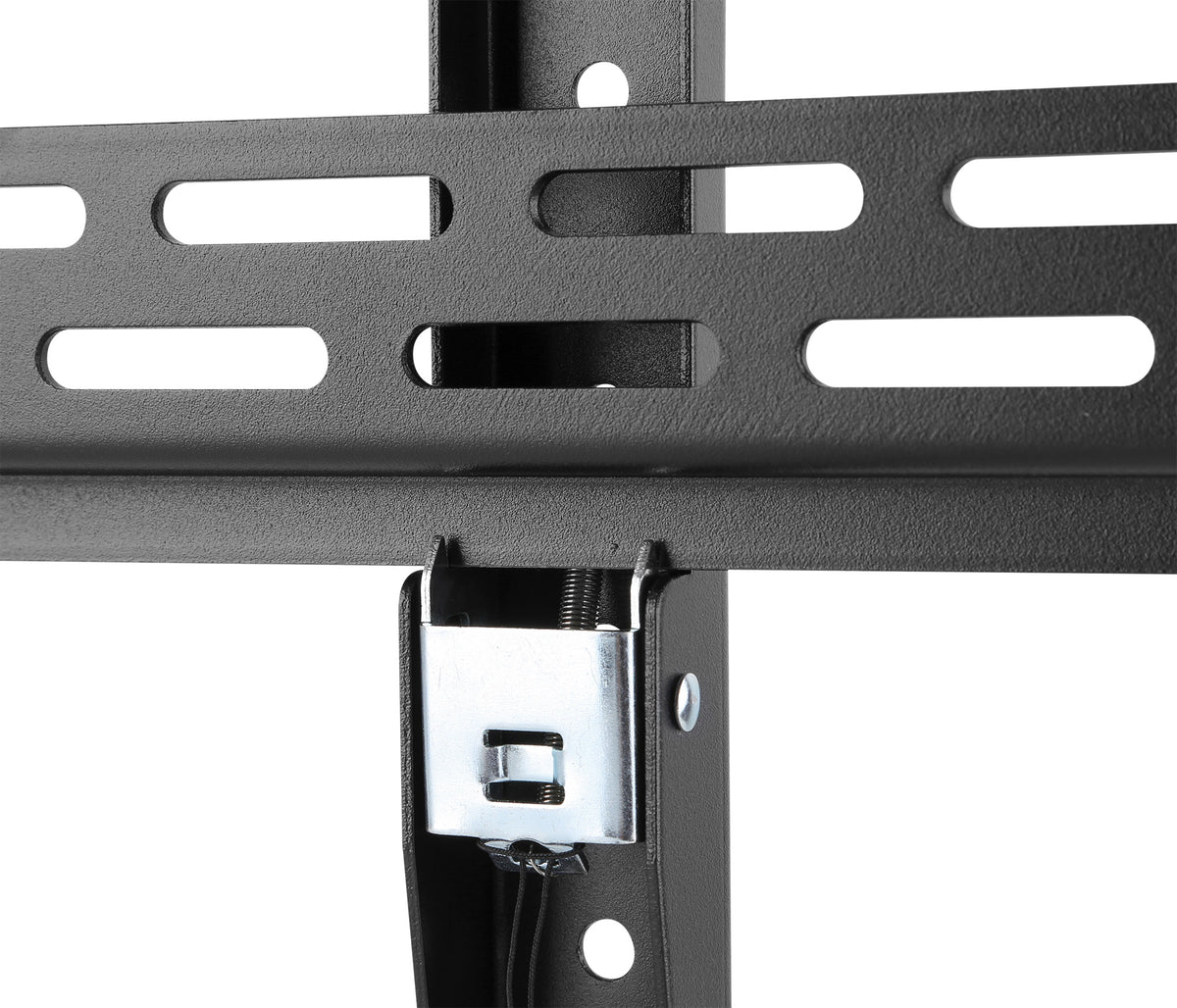

  • Snap-in spring locks with release cords for easy installation and additional safety
  • Meets VESA standards 200x200 to 900x600 e.g. 200x200, 300x300, 400x200, 400x400, 600x400, 800x400, 800x600, 900x600
  • Lifetime warranty


    General
  • Certifications: RoHS
  • Designed for most 60" – 100" flat and curved screens
  • Weight capacity: 100 kg (220 lbs.)
  • Dimensions: 630 x 1009 x 32 mm (24.8 x 39.72 x 1.26 in.)
  • Weight: 5.9 kg (13.01 lbs.)
  • VESA standards: 200x200 to 900x600 e.g. 200x200, 300x300, 400x200, 400x400, 600x400, 800x400, 800x600, 900x600
    • Package Contents
  • Heavy-Duty Low-Profile Large-Screen TV Wall Mount
  • Installation hardware with instructions

  • Other Part Numbers

    • Amazon ASIN: B087DNSG72
    • EAN: 0766623461993
    • UPC: 766623461993

  • Physical Specifications

    • Weight: 4.64 kg
    • Dimensions: 630 (L) x 1009 (W) x 32 (H) [mm]
    • Carton Quantity: 4
    • Carton Weight: 23.50 kg

  • Datasheet
    • Datasheet     » Download

    • Technical Drawing     » Download

    • Declaration of Conformity     » Download


  • Manual
    • Quick Instruction Guide     » Download
