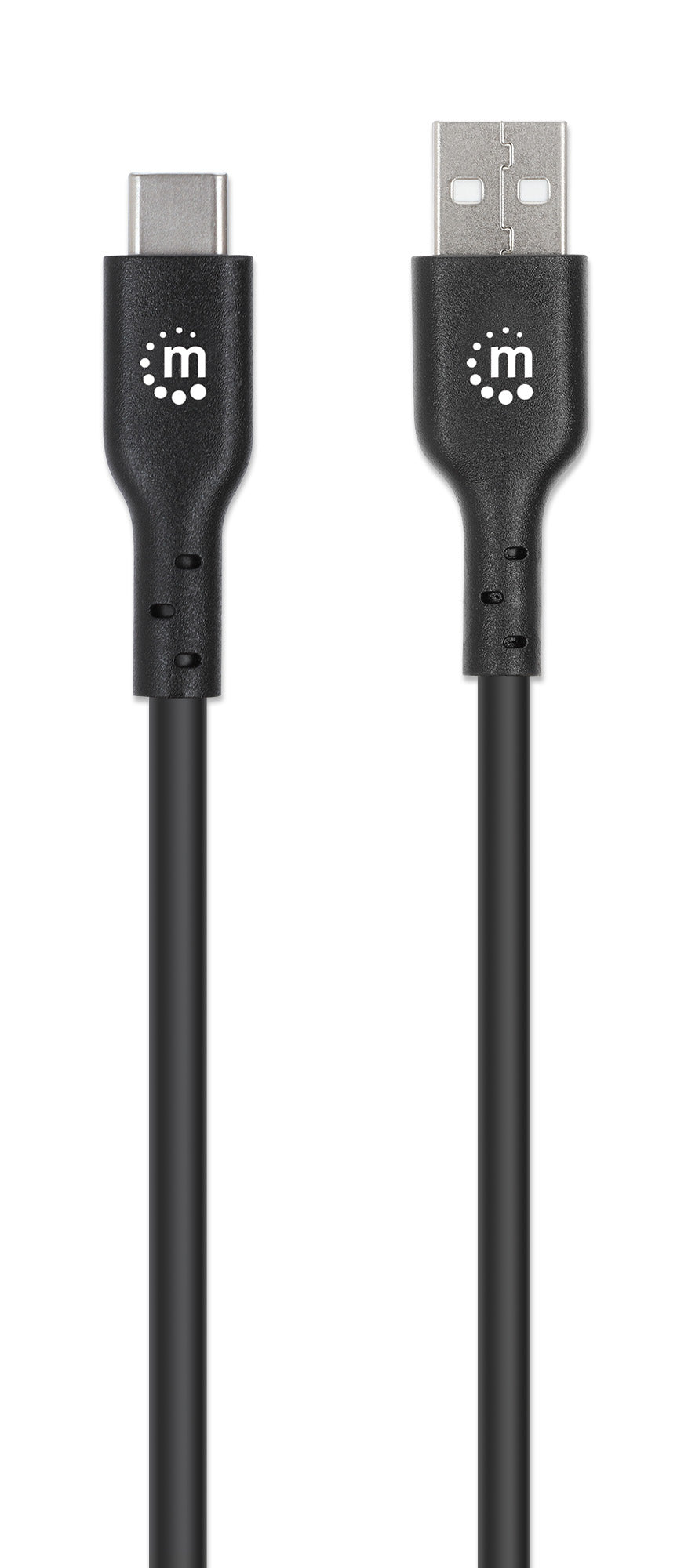

Hi-Speed USB C Device Cable

Manhattan Hi-Speed USB-C Cables easily connect USB-C peripherals and accessories to desktop and notebook computers. Ideal for use with any USB-C plug-and-play device, these cables support data transfer rates up to 480 Mbps on Windows and Mac systems for fast, reliable transmissions. Nickel-plated contacts, shielding and fully molded boots with strain relief provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB 2.0 Type-A male to USB-C male
• Connects a USB-C device to a Hi-Speed USB hub or computer
• Supports speeds of up to 480 Mbps and fast charging of up to 3.0 A
• Hi-Speed USB for ultra-fast data transfer rates and zero data degradation
• Lifetime Warranty

Standards and Certifications
• USB 2.0
• CE
• RoHS
Connectors
• USB-C male
• USB 2.0 Type-A male
• Nickel plated
• Molded PVC boot
Cable
• 28 + 23 AWG conductors
• Shielded
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 10 MΩ min.
• Contact resistance: 2 Ω max.
• Thermal plastic casing
• Outer diameter (OD): 4.0 mm (0.16 in.)
Package Contents
• Hi-Speed USB-C Cable

• Other Part Numbers

• Amazon ASIN: B0768D8S69
• EAN: 0766623354936
• UPC: 766623354936



• Physical Specifications

• Weight: 0.11 kg
• Dimensions: 3000 (L) x 16 (W) x 8 (H) [mm]
• Carton Quantity: 90
• Carton Weight: 8.00 kg

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download
