Hi-Speed USB Mini-B Device Cable

Connect with confidence

Manhattan Hi-Speed USB 2.0 Device Cables easily connect USB peripherals and accessories with desktop and notebook computers. Ideal for use with many USB external enclosures, hubs and other hot-swap, Plug and Play devices, Manhattan Hi-Speed USB 2.0 Device Cables support data transfer rates up to 480 Mbps on Windows and Mac systems for fast, reliable transmissions. Gold-plated contacts, shielding and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

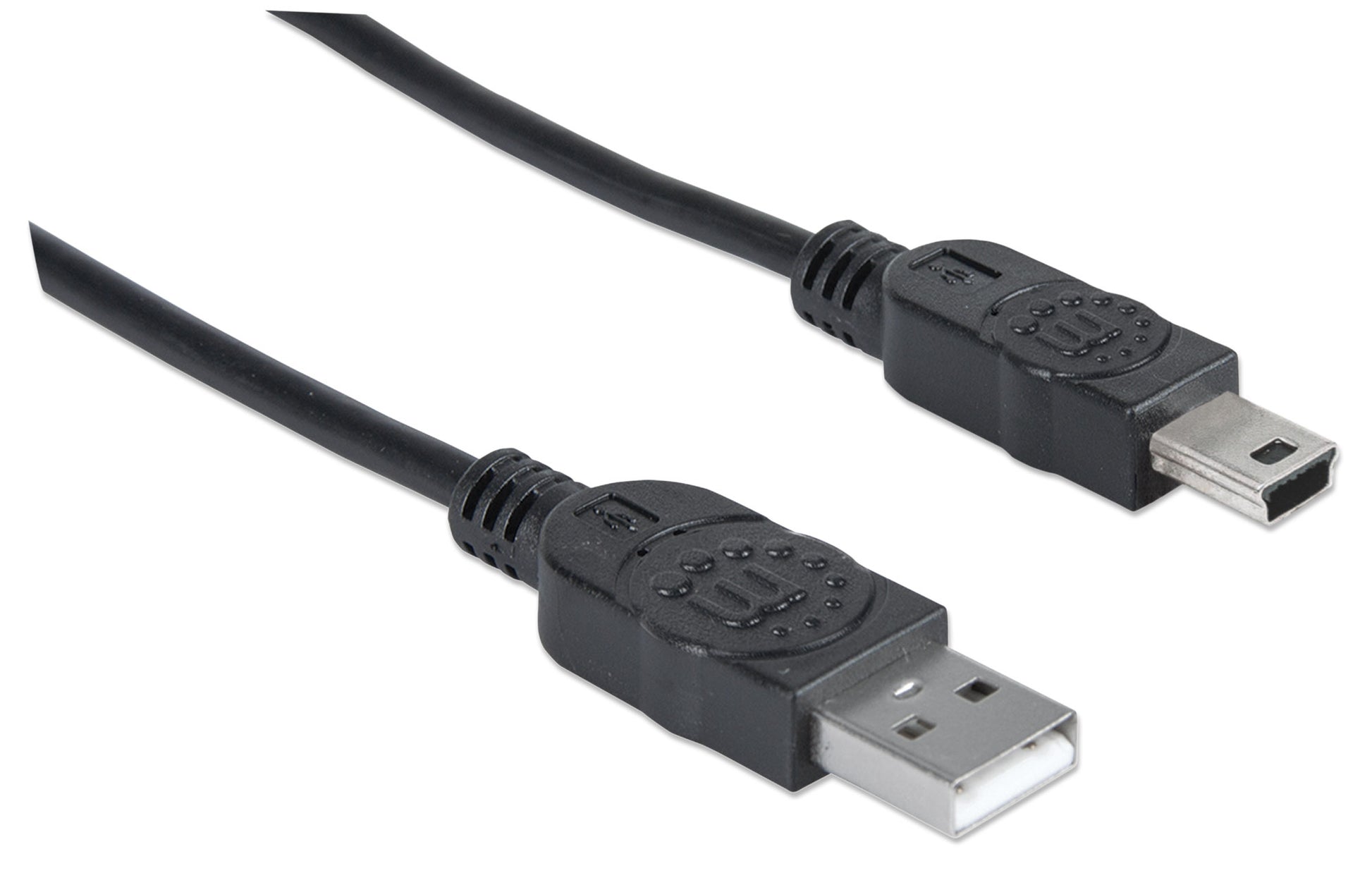

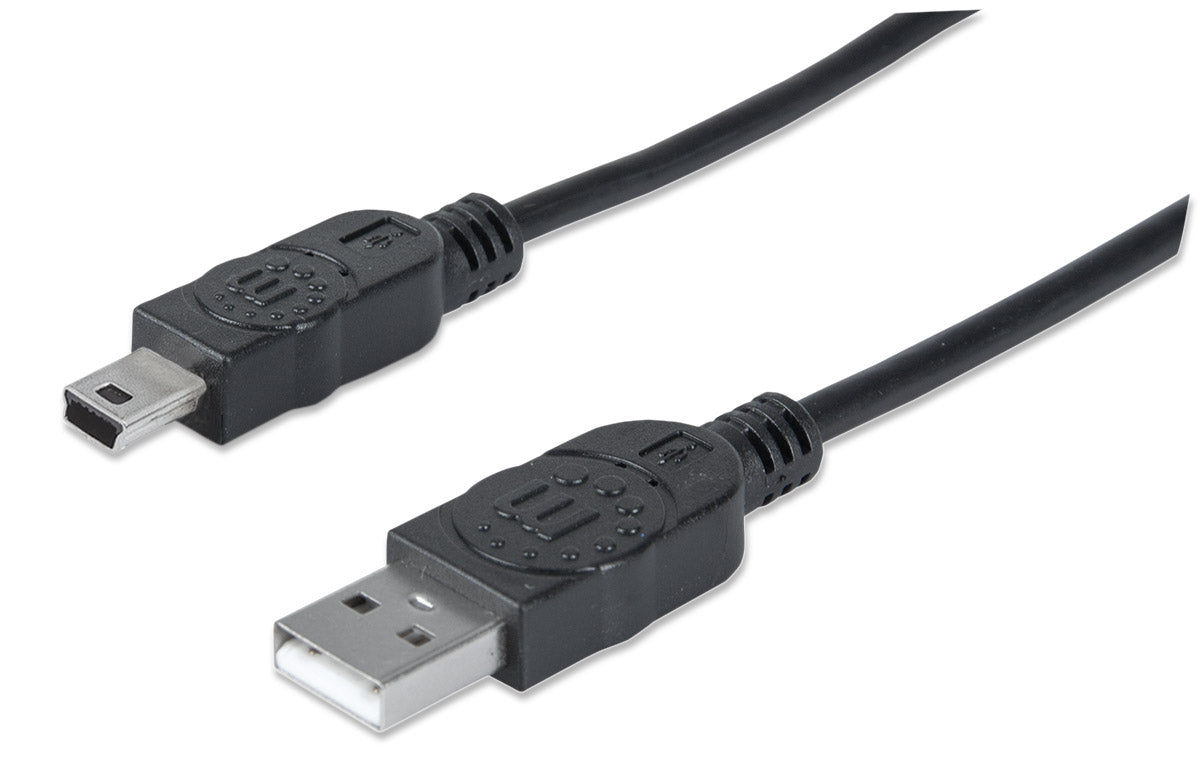

• USB 2.0 Standard-A male to USB 2.0 Mini-B male
• Connects a Hi-Speed USB device to a Hi-Speed USB hub or computer
• Supports speeds of up to 480 Mbps
• Hi-Speed USB for ultra-fast data transfer rates with zero data degradation
• Lifetime Warranty

Standards and Certifications
• UL 2725
• USB 2.0
Connectors

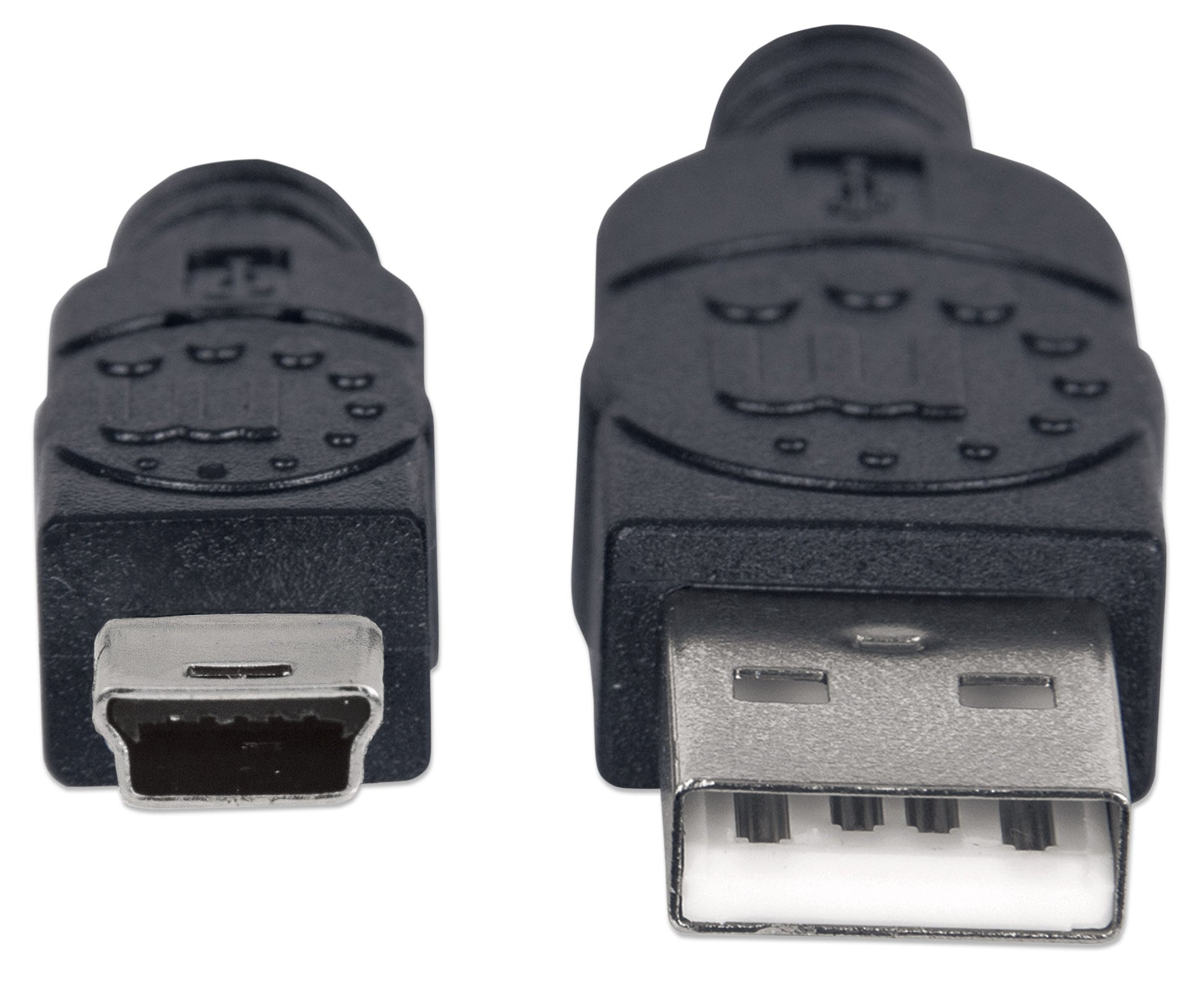

• One 4-pin USB 2.0 Type-A male
• One 5-pin USB 2.0 Mini-B male
• Gold plated
• Molded PVC boot
Cable
• 28 AWG conductors
• Shielded
• Withstanding voltage: 300 V DC 10 ms
• Insulation resistance: 5 MOhms
• Contact resistance: 10 Ohms
• Thermal plastic casing
Package Contents
• Hi-Speed USB Device Cable

• Other Part Numbers

• Amazon ASIN: B00173FX74
• EAN: 0766623333375
• UPC: 766623333375



• Physical Specifications

• Weight: 0.04 kg
• Dimensions: 1.8 m
• Carton Quantity: 350
• Carton Weight: 17.20 kg
