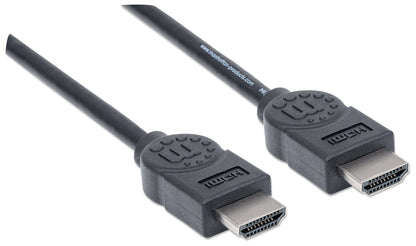

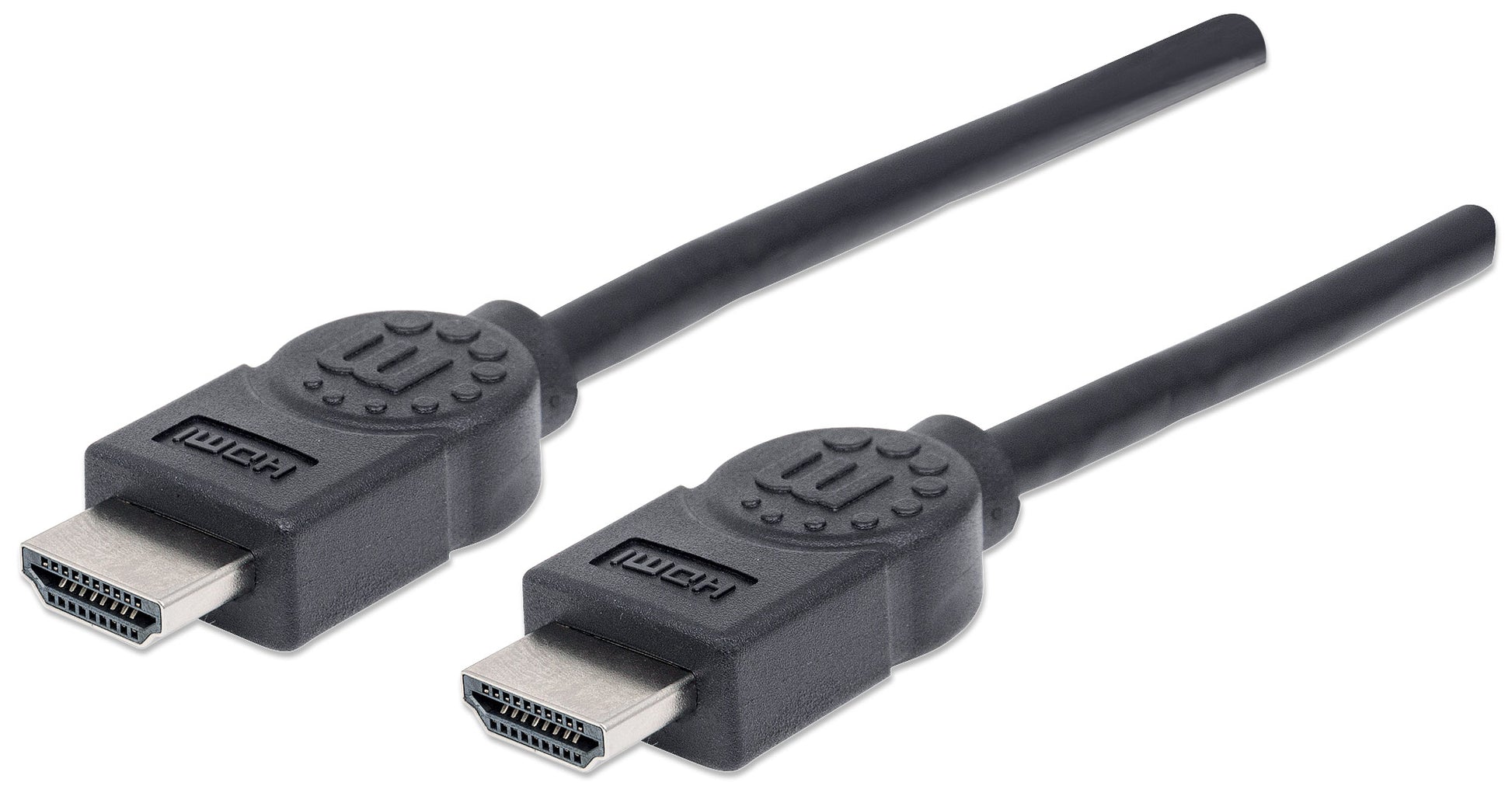

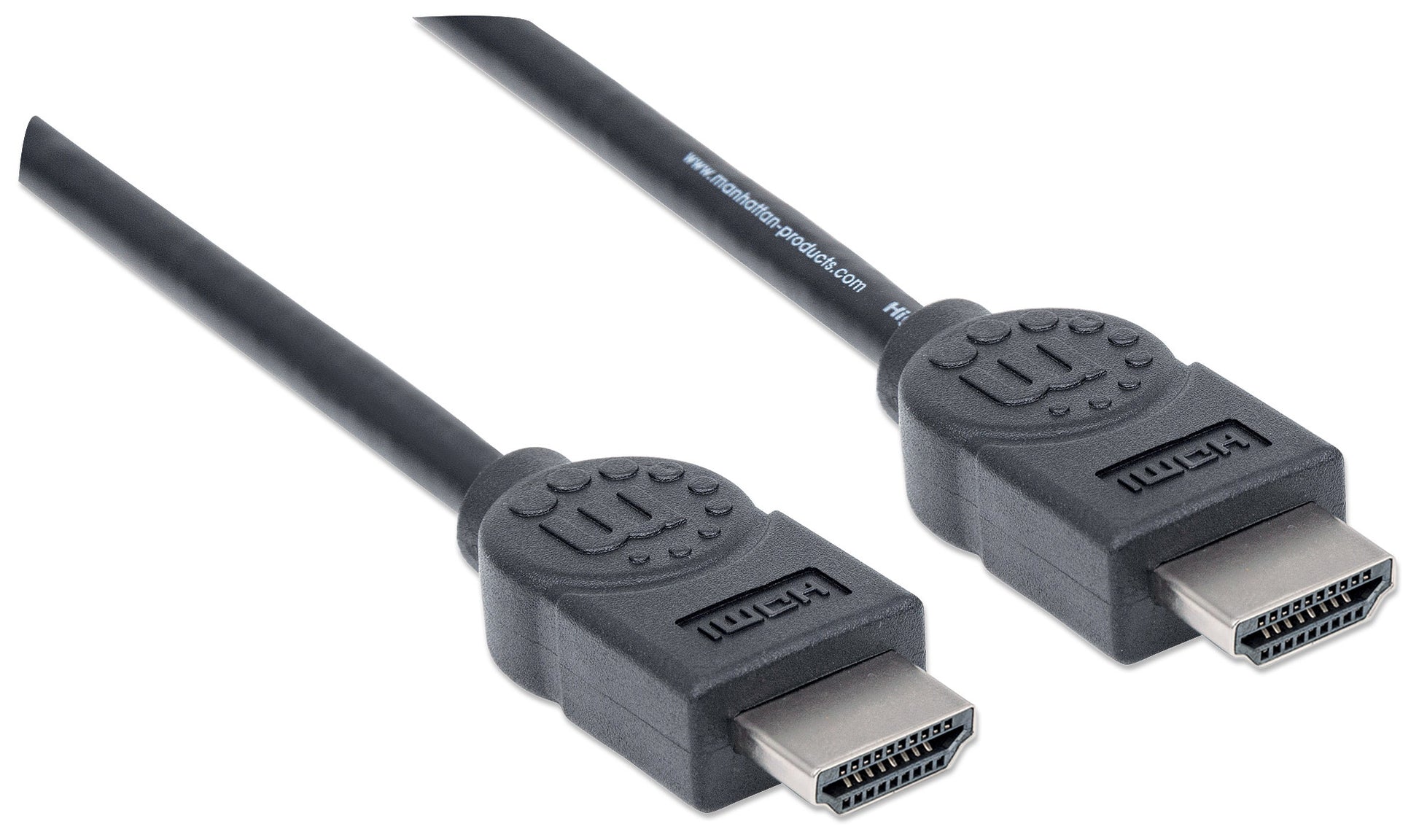

High Speed HDMI Cable

High-speed cables deliver high-definition performance

HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. Manhattan High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Shielded Cables provide 4K resolution and a bandwidth of 10.2 Gigabits per second at 340 MHz. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics, greater accuracy and expanded features.

• 4K@30Hz resolution supports video resolution beyond 1080p; up to 1080p resolution in 3D and Deep Color
• Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
• Compliant with High Speed HDMI specifications
• Double shielded to reduce EMI and other interference sources
• Molded PVC boot
• Lifetime Warranty

Standards and Certifications
• CE
• RoHS
General
• Meets or exceeds existing HDMI standards
• Length: 1.8 m (6 ft.)
Contacts

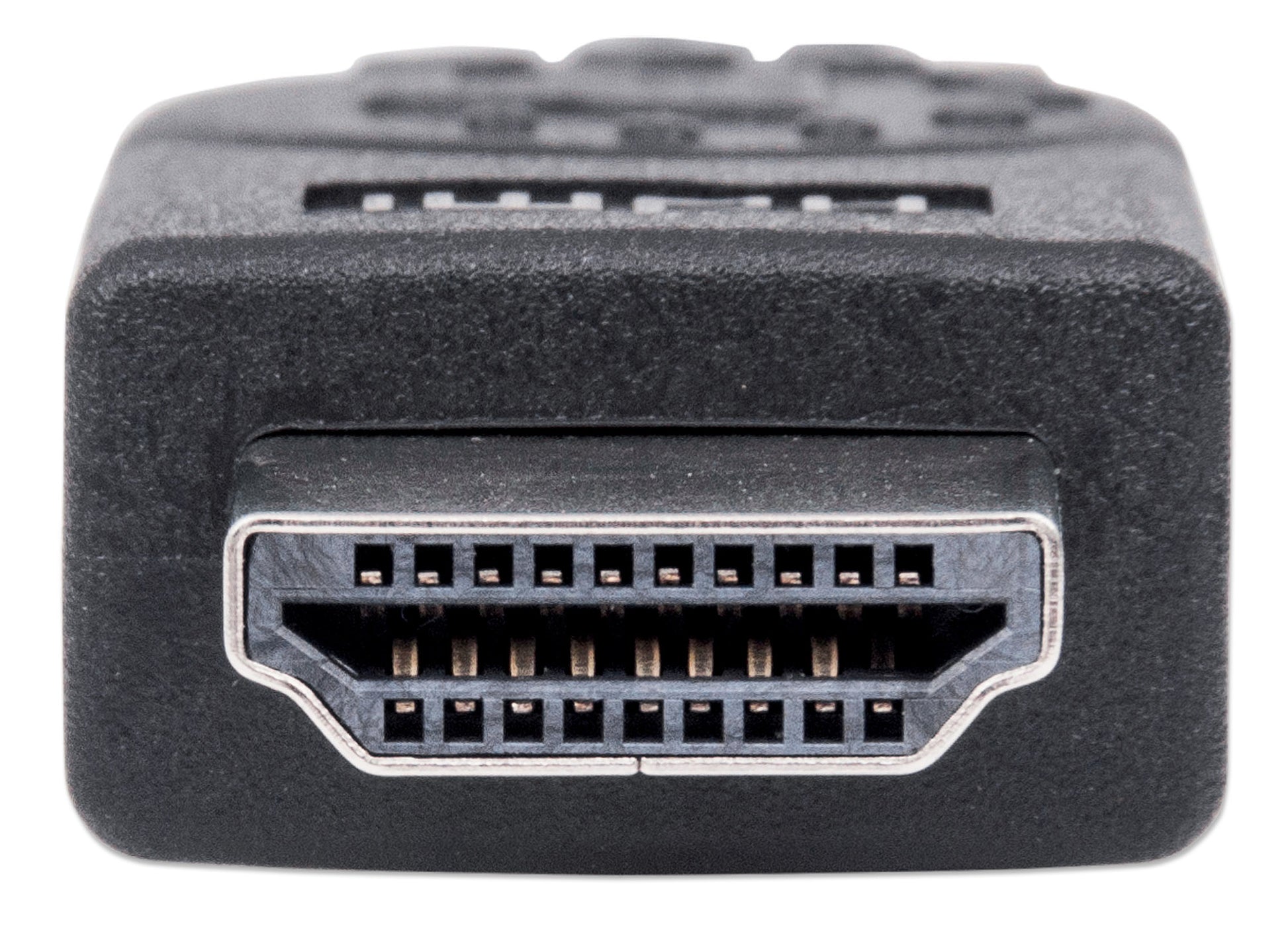

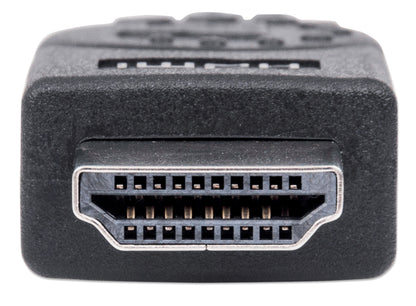

• 2 HDMI 19-pin male
• Nickel-plated contacts
• Molded PVC boot
• Double shielded
• 30 AWG cable
Electrical
• Current rating: 0.5 A DC
• Withstanding voltage: 300 VDC
• Insulation resistance: 5 MΩ
• Conductive resistance: 2 Ω
Package Contents
• High Speed HDMI Cable

• Other Part Numbers

• Amazon ASIN: B001CS9CTE
• EAN: 0766623306119
• UPC: 766623306119



• Physical Specifications

• Weight: 0.08 kg
• Dimensions: 1.8 m
• Carton Quantity: 120
• Carton Weight: 12.10 kg
