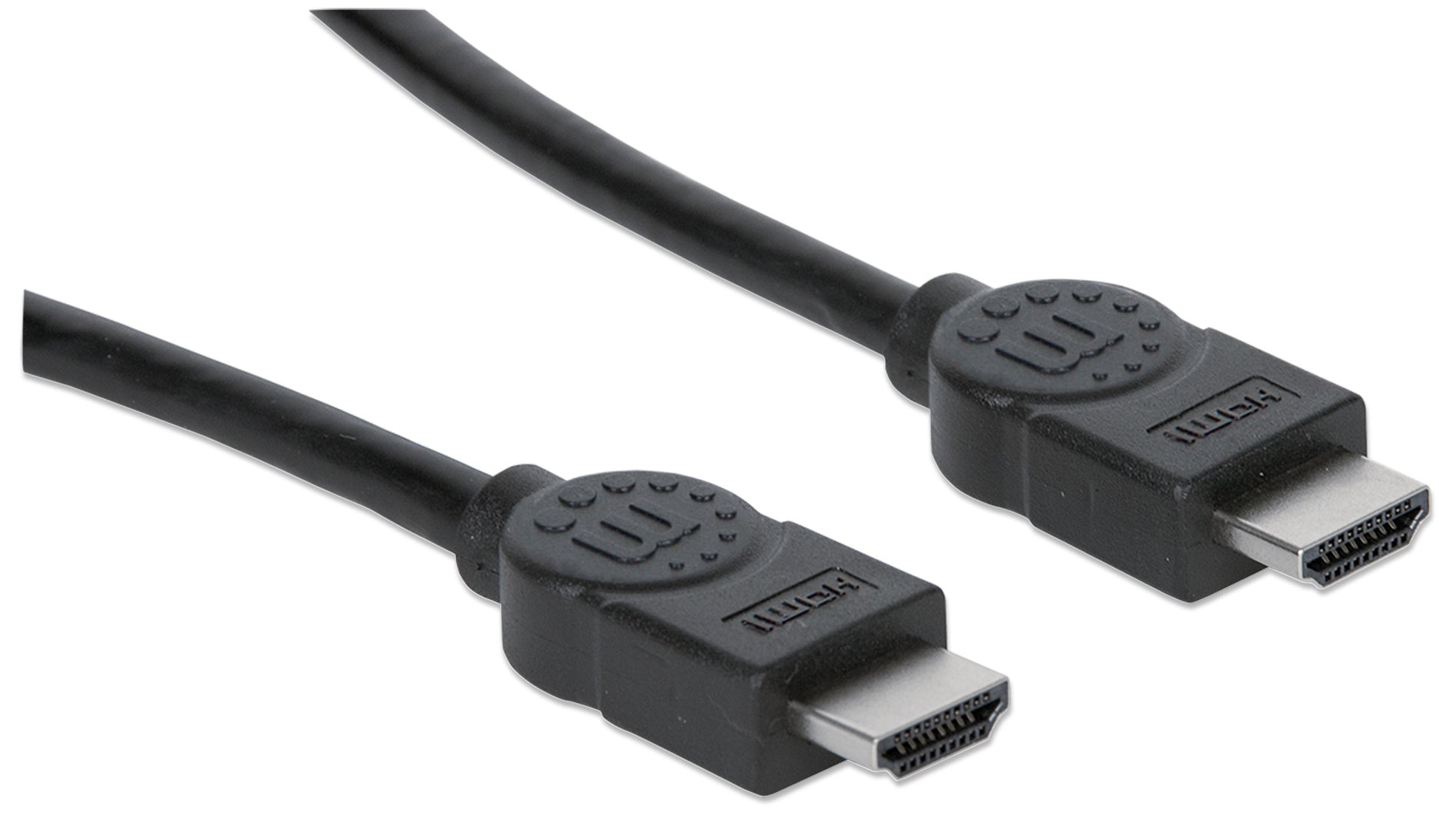

High Speed HDMI Cable

High-speed cables deliver high-definition performance

HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. Manhattan High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Shielded Cables provide 1080p resolution. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics, greater accuracy and expanded features.

• Supports 1080p resolution and Deep Color
• Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
• Compliant with High Speed HDMI specifications
• Double shielded to reduce EMI and other interference sources
• Molded PVC boot
• Lifetime Warranty

Standards and Certifications
• CE
• RoHS
• REACH
General
• Meets or exceeds existing HDMI standards
• Length: 7.5 m (25 ft.)
Contacts

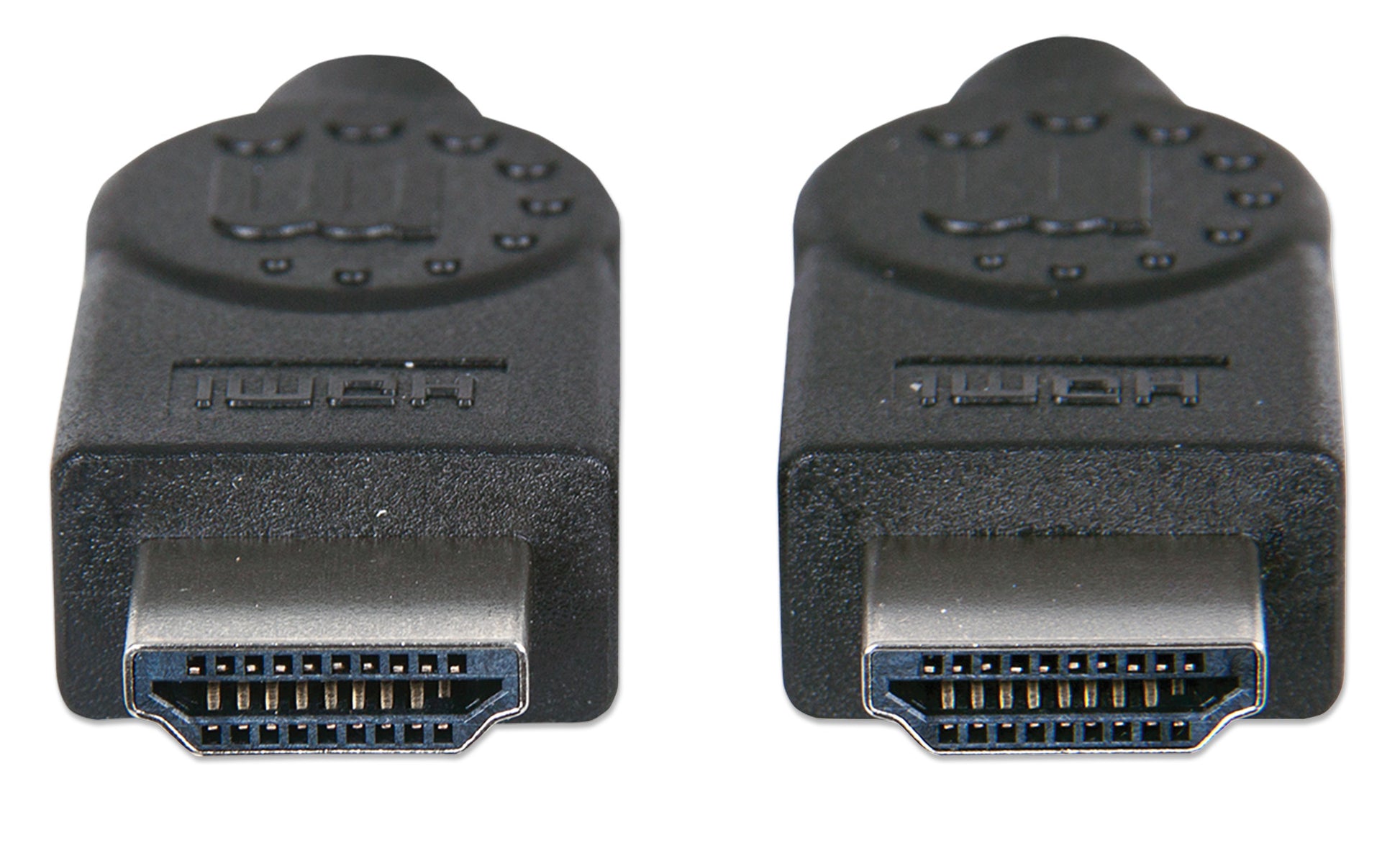

• 2 HDMI 19-pin male
• Nickel-plated contacts
• Molded PVC boot
• Double shielded
• 30 AWG cable
Electrical
• Current rating: 0.5 A DC
• Withstanding voltage: 300 VDC
• Insulation resistance: 5 MΩ
• Conductive resistance: 5 Ω
Package Contents
• High Speed HDMI Cable

• Other Part Numbers

• Amazon ASIN: B002LBTBLU
• EAN: 0766623308441
• UPC: 766623308441



• Physical Specifications

• Weight: 0.32 kg
• Dimensions: 7.5 m
• Carton Quantity: 25
• Carton Weight: 9.50 kg
