Low-Profile Fixed TV Wall Mount, for 32" to 55" Displays

Low-Profile Fixed TV Wall Mount, for 32" to 55" Displays

Holds One 32" to 55" TV up to 45 kg (100 lbs.), Ultra Slim Design, Black

Highlights

  • Supports one 32" to 55" TV up to 45 kg (100 lbs.)
  • Holds TV only 27 mm (1 in.) from wall
  • Heavy-duty steel construction with powder coating

SKU: 462266

NDAA Compliant
[ view high resolution images ]

Ultra Slim TV Wall Mount for flush-as-possible TV installations

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. With this mount, your TV sits only 27 mm (1 in.) from the wall. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 55" and weighing up to 45 kg (100 lbs.). It offers VESA compliance up to 400x400, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

  • Supports one 32" to 55" TV up to 45 kg (100 lbs.)
  • Holds TV only 27 mm (1 in.) from wall
  • Heavy-duty steel construction with powder coating
  • Includes attachable bubble level
  • Low-profile installation ideal for home, office and commercial applications
  • Meets VESA standards 75x75 to 400x400 e.g. 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400
  • Lifetime warranty


    General
  • Certifications: RoHS
  • Designed for most 32" - 55" flat and curved screens
  • Weight capacity: 45 kg (100 lbs.)

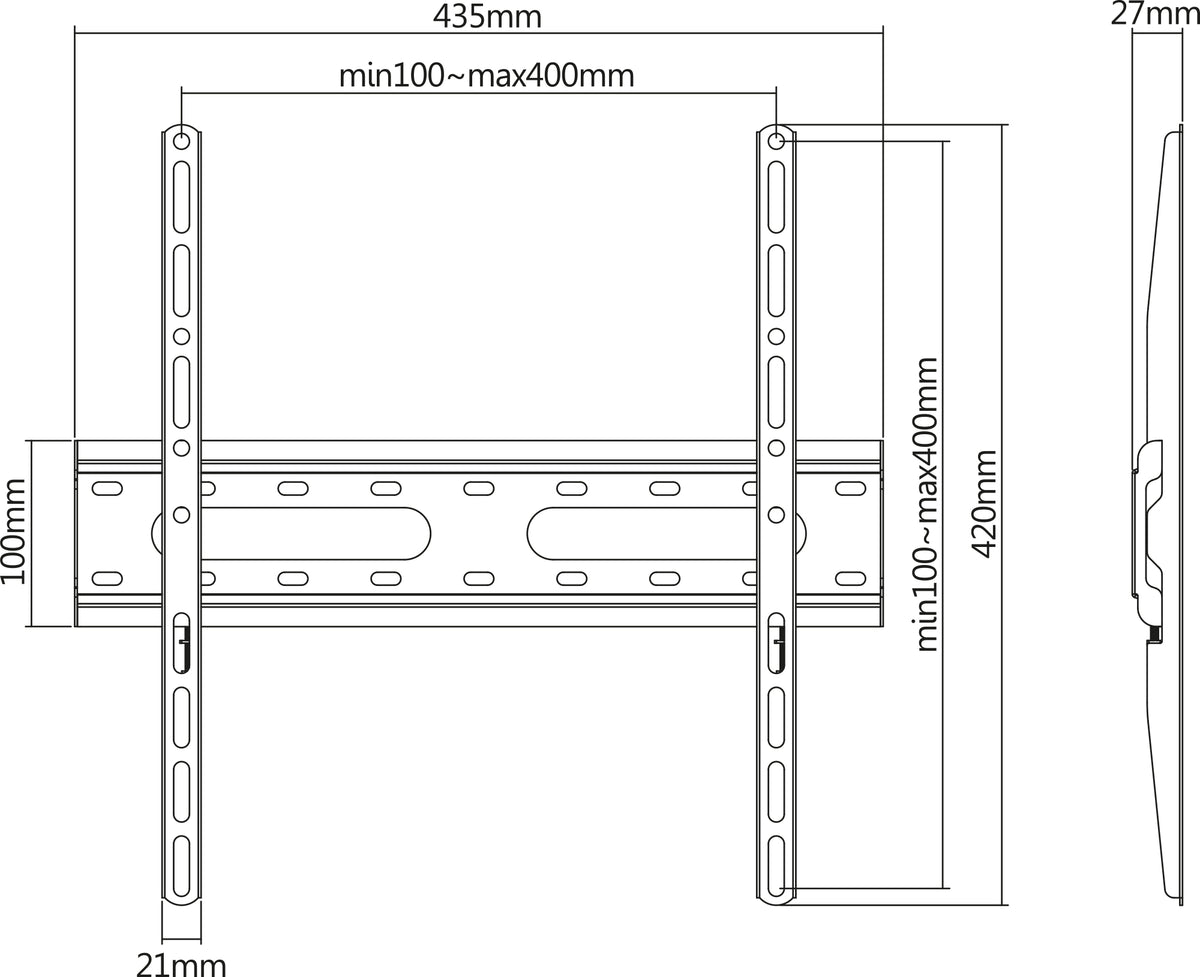

  • Dimensions (L x W x H): 420 x 435 x 27 mm (16.54 x 17.13 x 1.06 in.)
  • Net weight: 1 kg (2.2 lbs.)
  • Gross weight: 1.11 kg (2.45 lbs.)
  • Material: steel
  • VESA standards: 75x75 to 400x400 e.g. 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400
    • Package Contents
  • Low-Profile Fixed TV Wall Mount
  • Attachable bubble level
  • Installation hardware with instructions

California Proposition 65 WarningWarning

This product can expose you to chemicals including Benzene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

  • Other Part Numbers

    • EAN: 0766623462266
    • UPC: 766623462266

  • Physical Specifications

    • Weight: 1 kg
    • Dimensions: 420 (L) x 435 (W) x 27 (H) [mm]
    • Carton Quantity: 15
    • Carton Weight: 17.10 kg

  • Datasheet
    • Datasheet     » Download

    • Technical Drawing     » Download

    • Declaration of Conformity     » Download


  • Manual
    • Quick Instruction Guide     » Download
