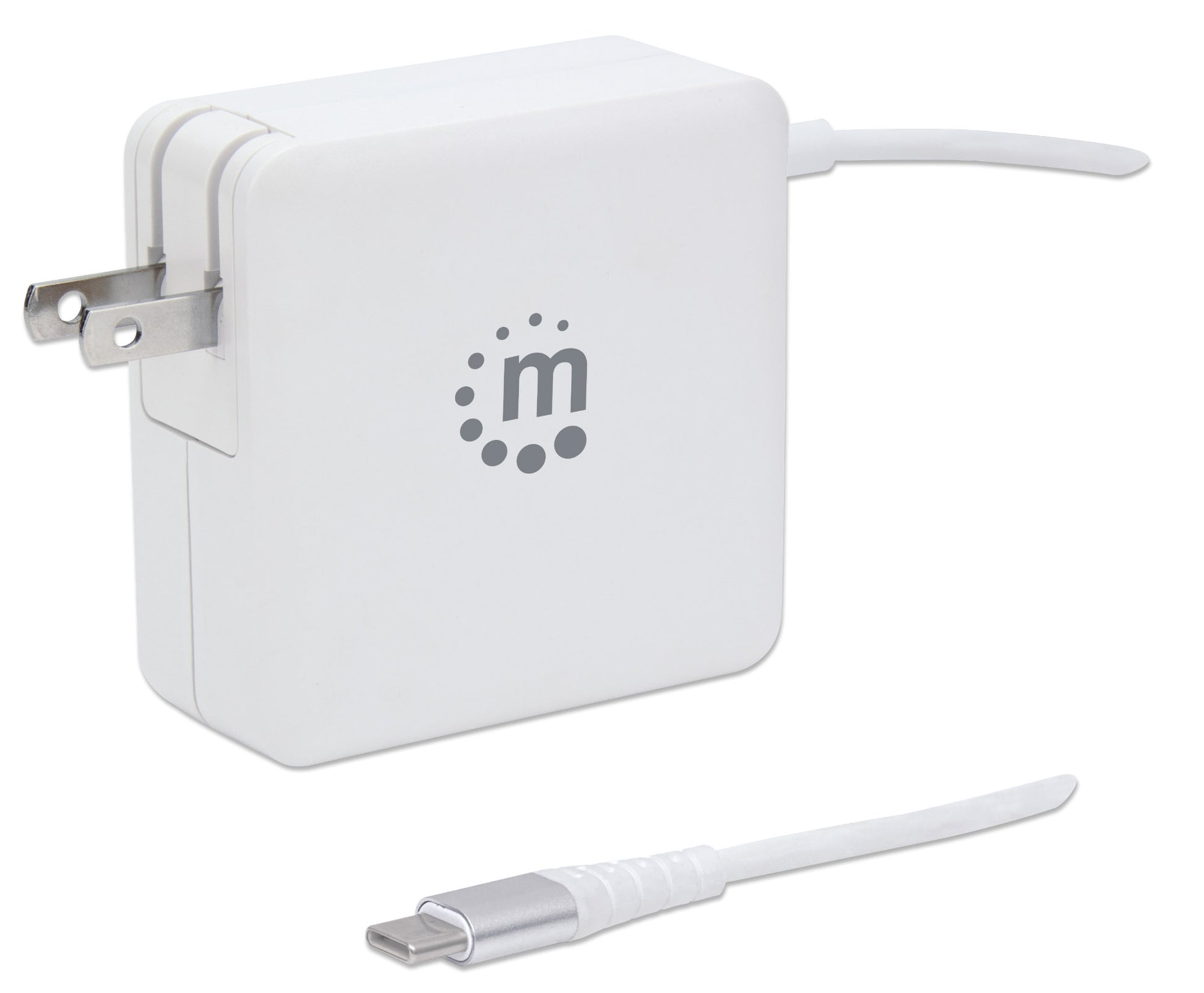

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 1
Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 2

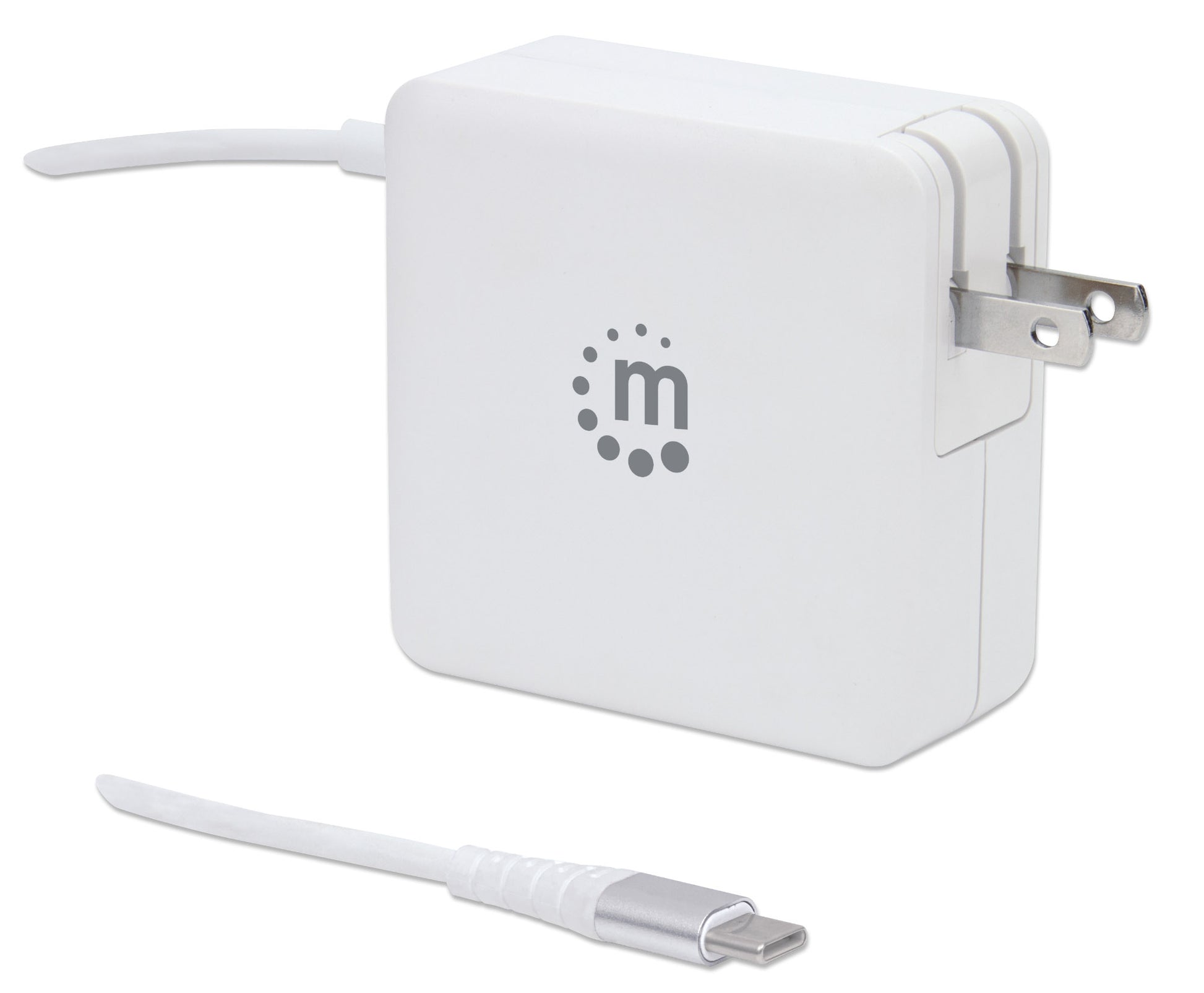

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 3

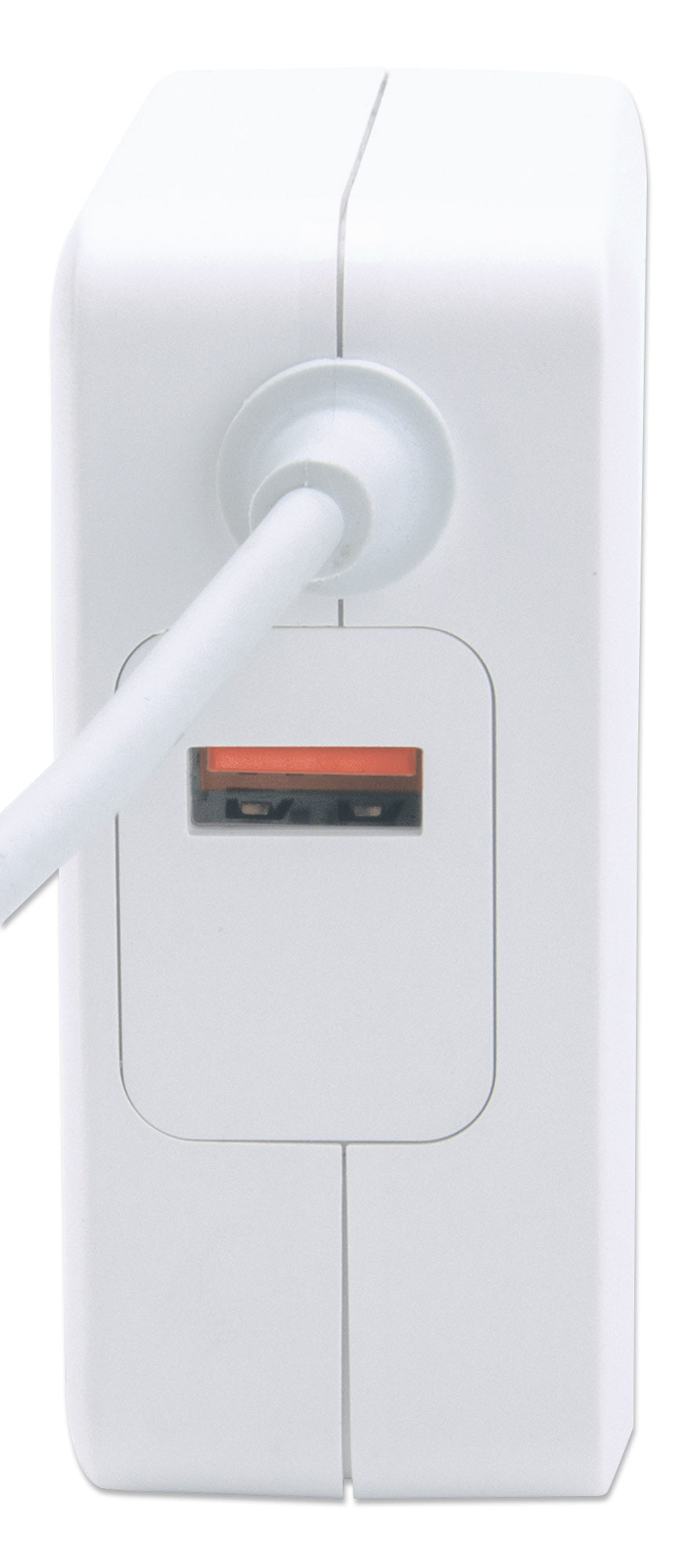

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 4

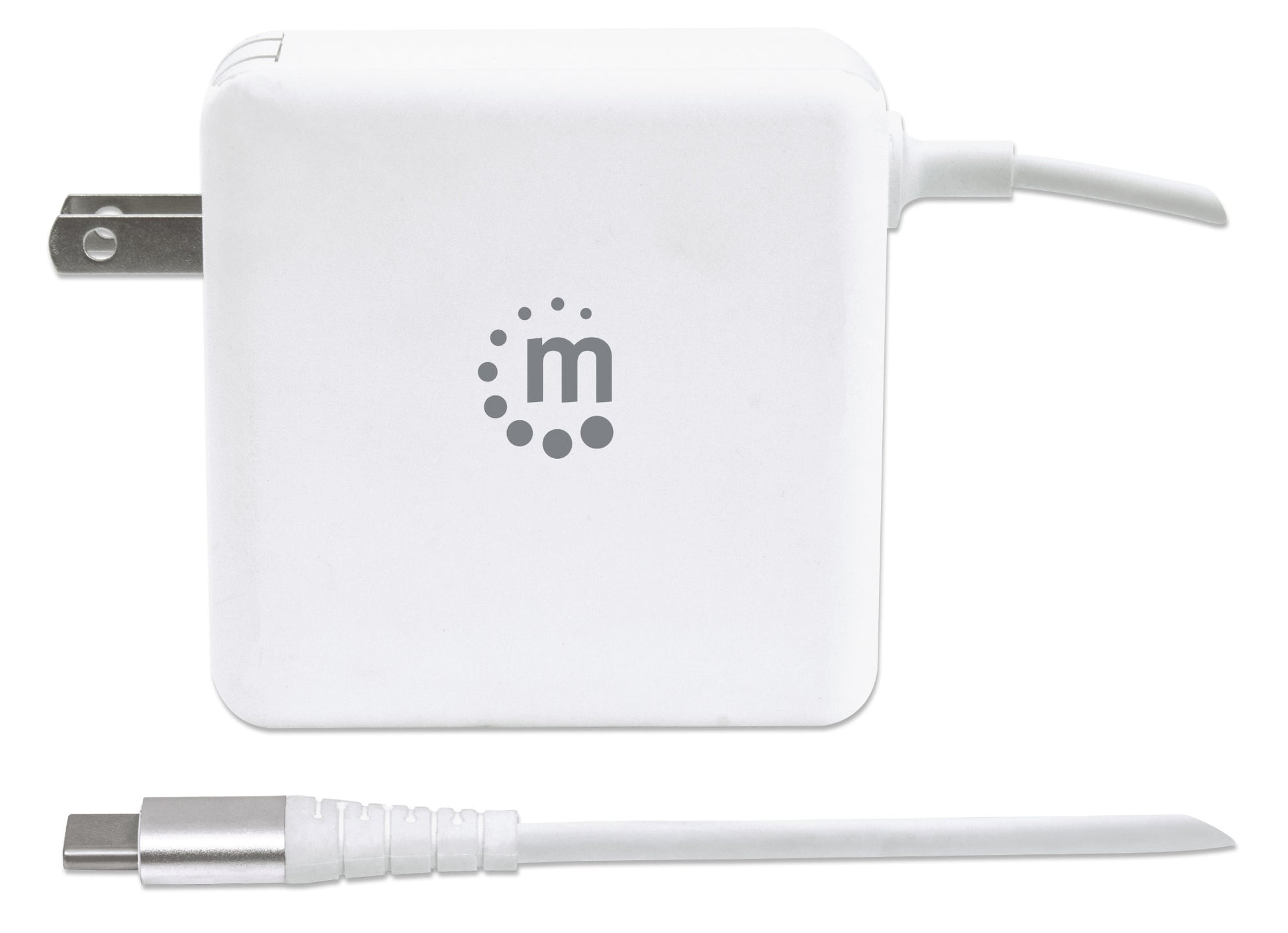

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 5

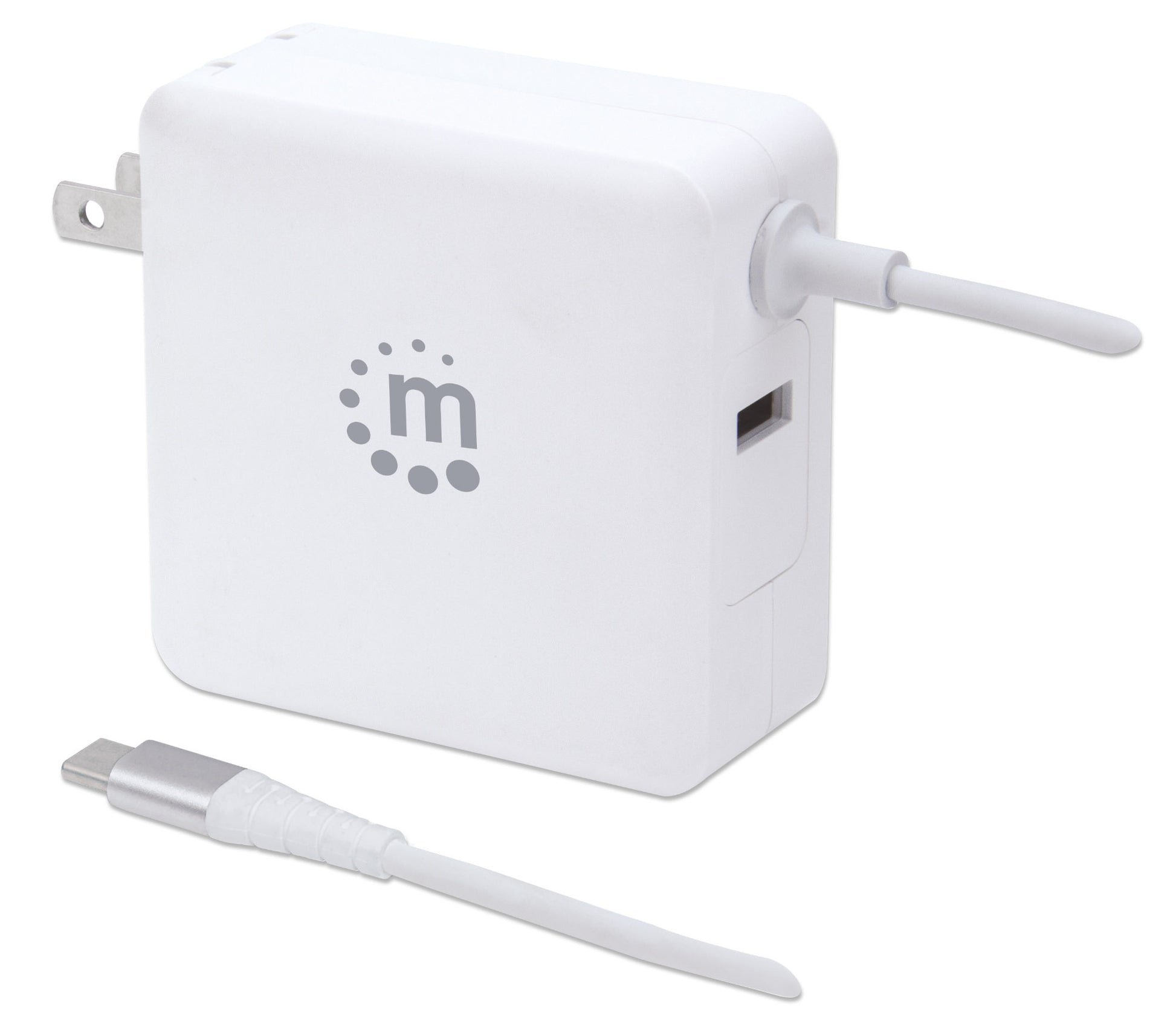

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 6

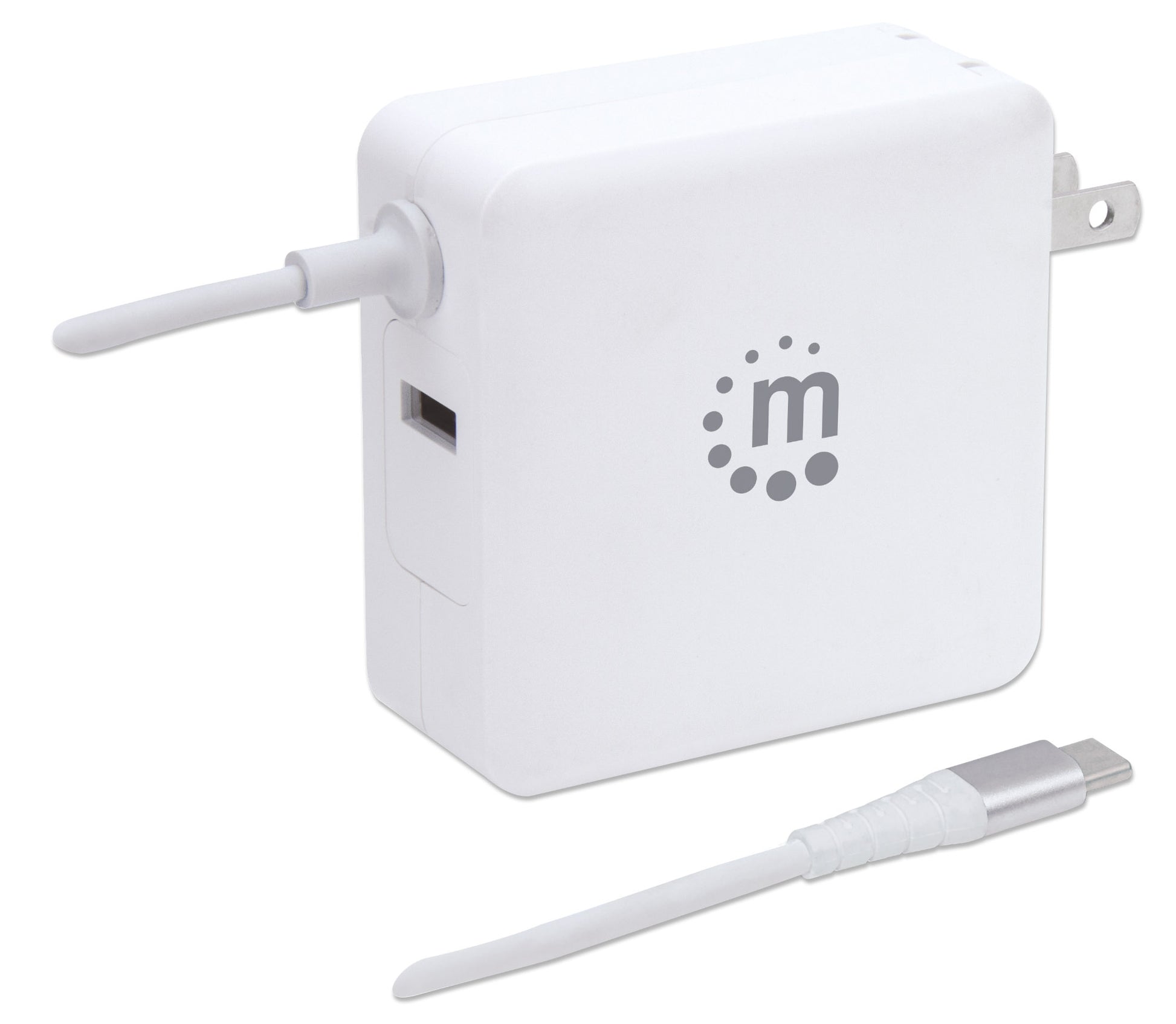

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 7

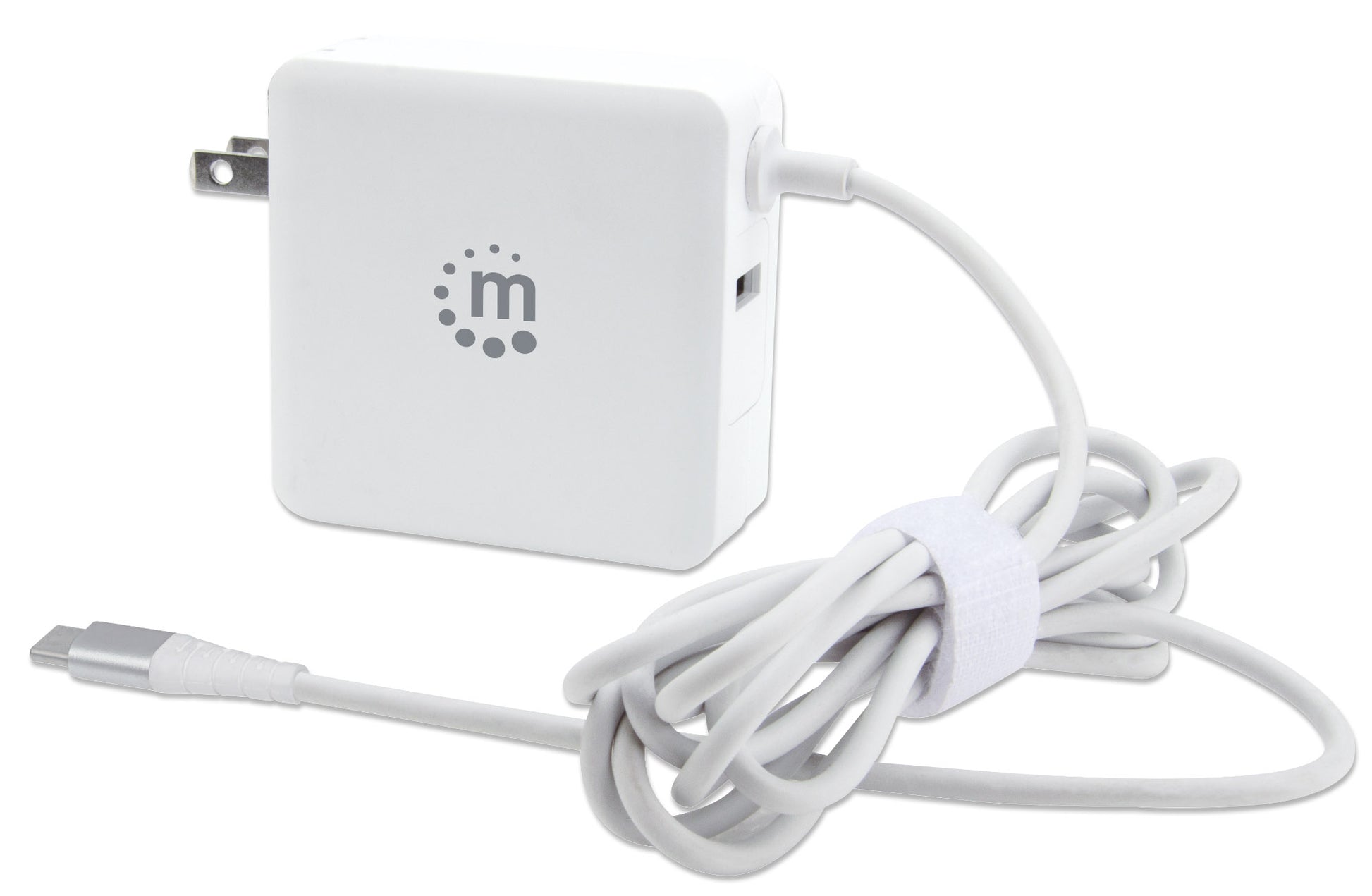

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 8

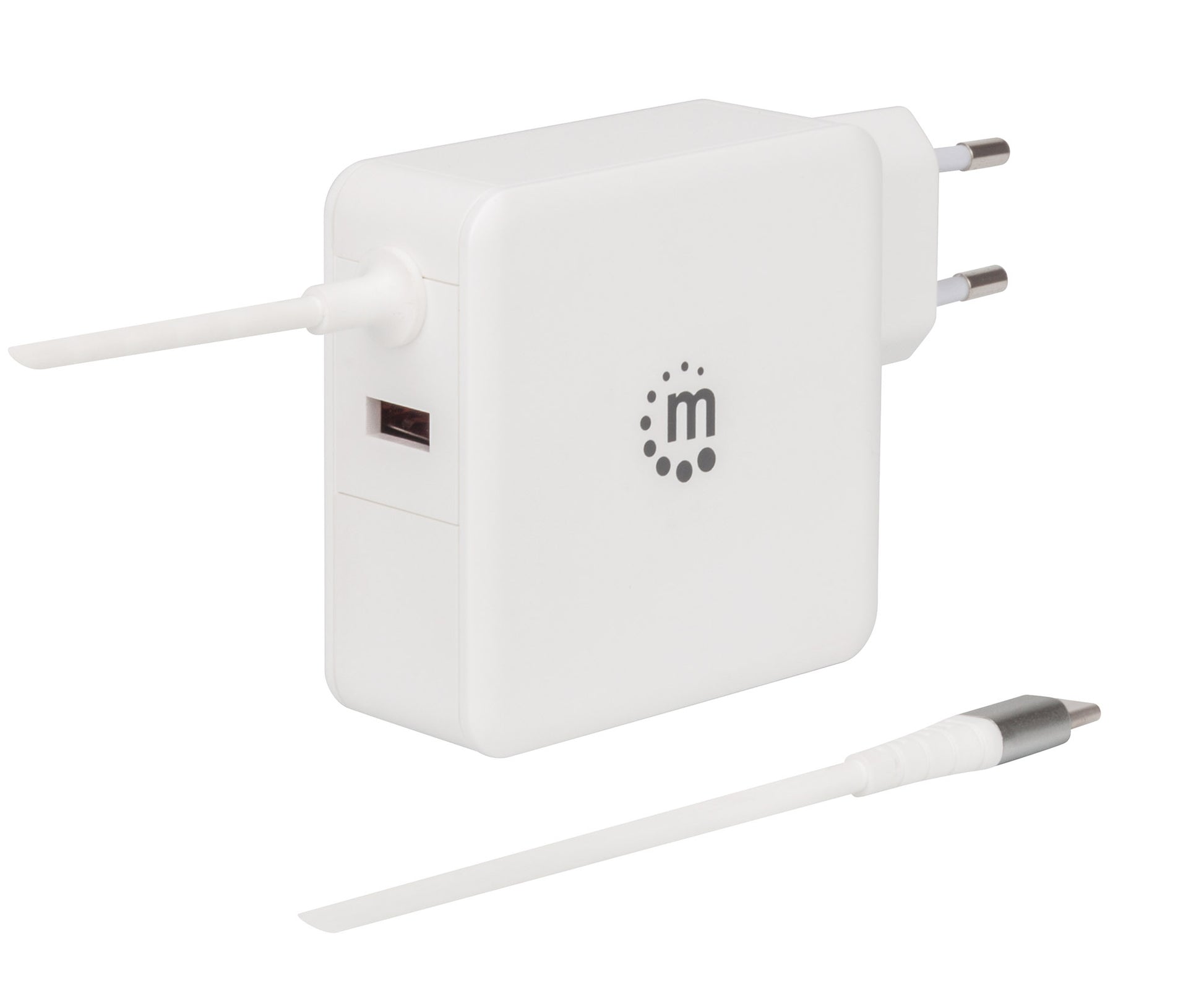

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 9

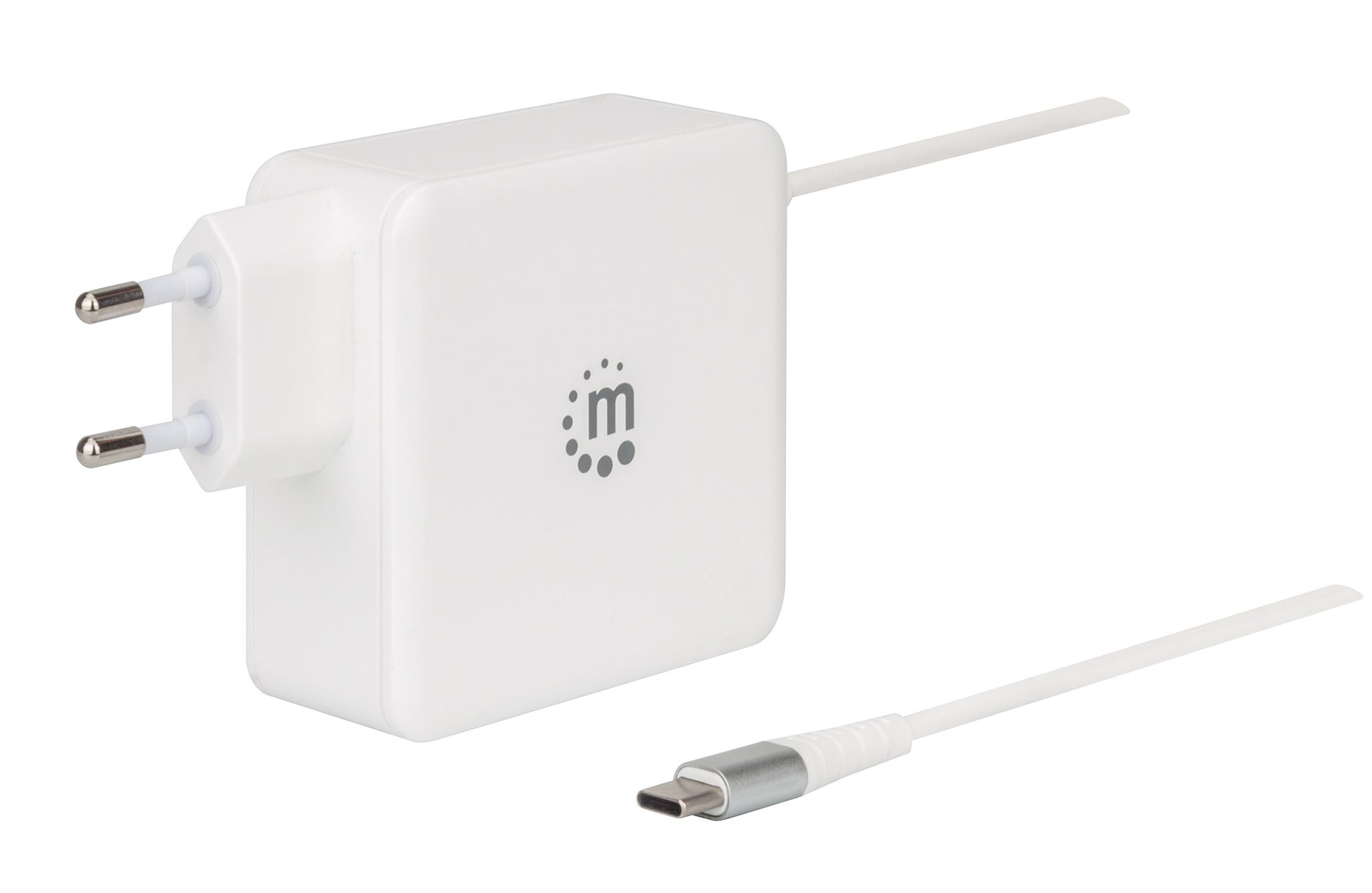

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 10

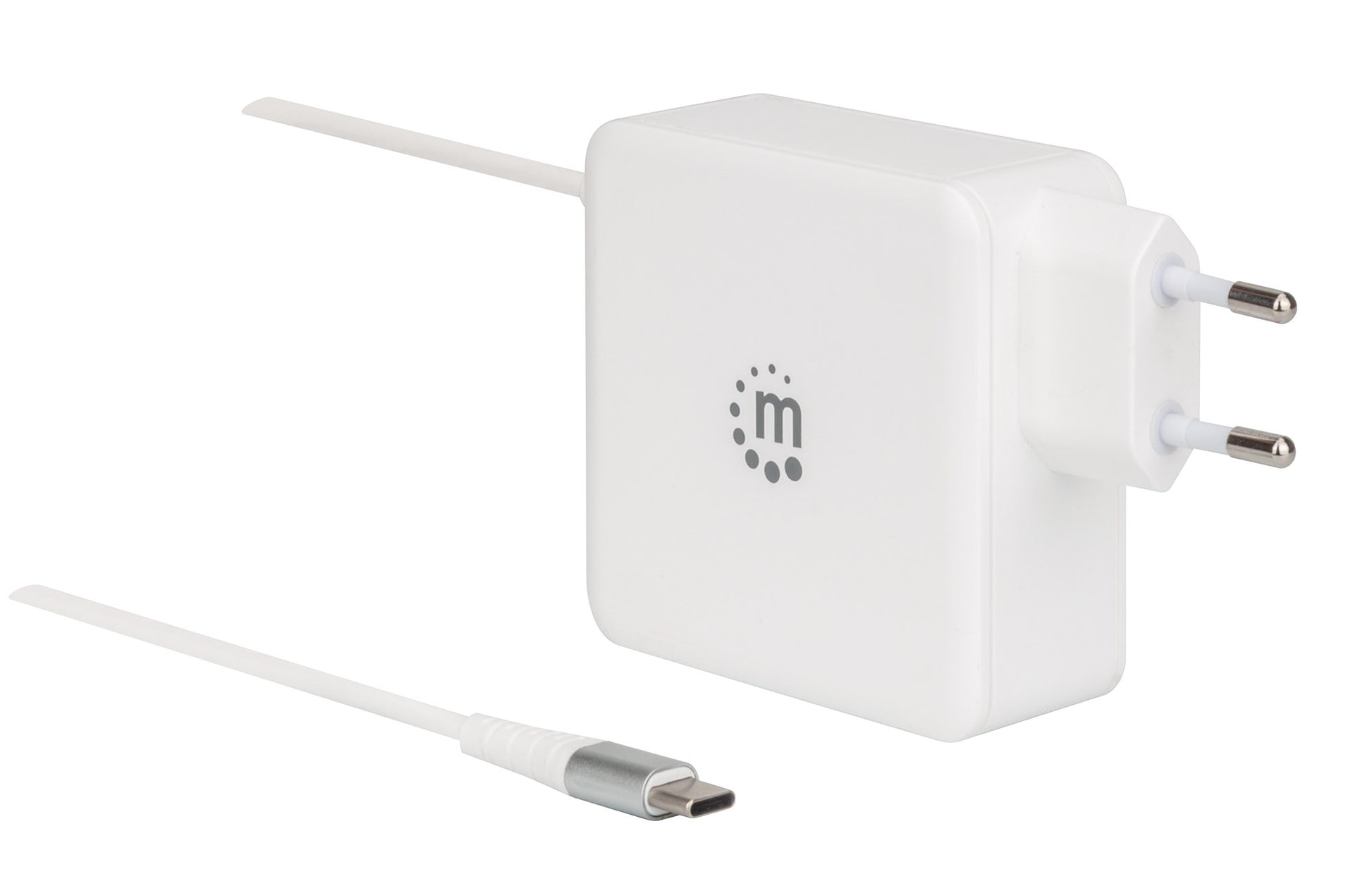

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 11

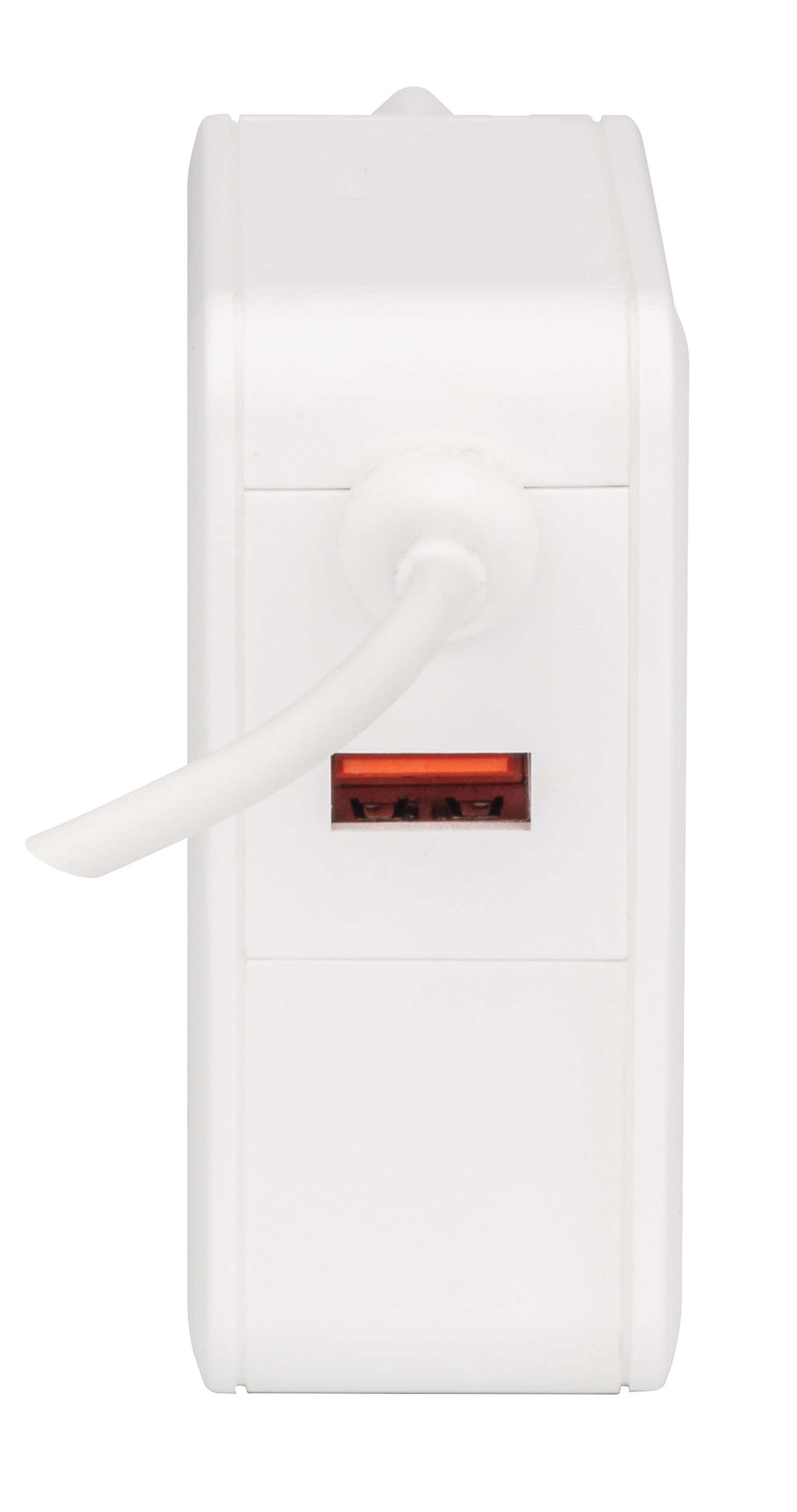

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W Image 12

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W

USB-C Power Delivery Connector (up to 60 W), USB-A Charging Port (up to 2.4 A), White

SKU: 180245

Highlights

  • Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A charging port
  • Charges two different devices simultaneously with ideal potential energy
  • USB-C cable with PD function delivering up to 60 W to charge a notebook, laptop, Ultrabook, tablet or other USB-C powered device

Manufacturer

Manhattan Products


Power up your devices with a portable, powerful Power-Delivery-capable charger.

Enjoy complete charging power with the Manhattan Power Delivery Wall Charger with Built-in USB-C Cable - 60 W. The charger's attached USB-C cable uses Power Delivery (PD) technology to provide plenty of power to laptops and mobile phones, and the additional USB-A port can quickly charge any handheld device or tablet. The perfect companion for travelers with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Wall Charger with Built-in USB-C Cable - 60 W also intelligently safeguards itself and your devices with its short-circuit-, overvoltage-, overcurrent- and overtemperature-protection functions.

  • Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A charging port
  • Charges two different devices simultaneously with ideal potential energy
  • USB-C cable with PD function delivering up to 60 W to charge a notebook, laptop, Ultrabook, tablet or other USB-C powered device
  • USB-A port delivering up to 5 V / 2.4 A to quickly charge a portable device
  • Overload, overcurrent and overheating protection
  • Compact, portable and stylish design for easy travel
  • Three-year warranty

    Standards and Certifications
  • USB 2.0
  • PD 3.0
  • FCC
  • UL
  • CE
  • RoHS
  • WEEE
  • Connections
  • One built-in USB-C cable with Power Delivery (PD 3.0)
  • One USB-A
  • General
  • AC input: 100 – 240 V; 50 – 60 Hz
  • USB-C output: 5 – 20 V; maximum 3 A; 60 W
  • Voltage/current settings (maximum):
  • - USB-C: - 5 V / 3 A - 9 V / 3 A - 12 V / 3 A - 15 V / 3 A - 19 V / 3 A - 20 V / 3 A - USB-A: - 5 V / 2.4 AInput Characteristics
  • AC rated voltage: 100 – 240 V
  • Frequency range: 50 – 60 Hz (±1 Hz)
  • Current: ≤ 1 A at 100 VAC 60 HZ
  • Output Characteristics
  • Rated voltage: 5 / 9 / 12 / 15 / 19 / 20 V
  • Current: 3 A maximum (at constant voltage mode)
  • Rated power: 60 watts maximum
  • Overshoot voltage: ≤ 5%
  • Protection Characteristics
  • Short circuit (SCP) with auto-recovery mode
  • Overvoltage (OVP) with auto-recovery mode
  • Overcurrent (OCP) — current limit: 150% (max)
  • Overtemperature (OTP)
  • Physical
  • Dimensions: 7 x 7 x 3 cm (2.76 x 2.76 x 1.18 in)
  • Weight: 0.22 kg (7.5 oz.)
  • Housing: plastic
  • Cable length: 1.8m
  • Operating Environment
  • Operation Temperature: 0 – 30°C (32 – 86°F)
  • Storage Temperature: -20 – 65°C (-4 – 149°F)
  • Humidity (noncondensing): 10 – 90%
  • Package Contents
  • Power Delivery Wall Charger with Built-in USB-C Cable - 60 W
  • Quick Instruction Guide

California Proposition 65 WarningWarning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • Amazon ASIN: B07KTQLLHC
    • EAN: 0766623180245
    • UPC: 766623180245
