Manhattan

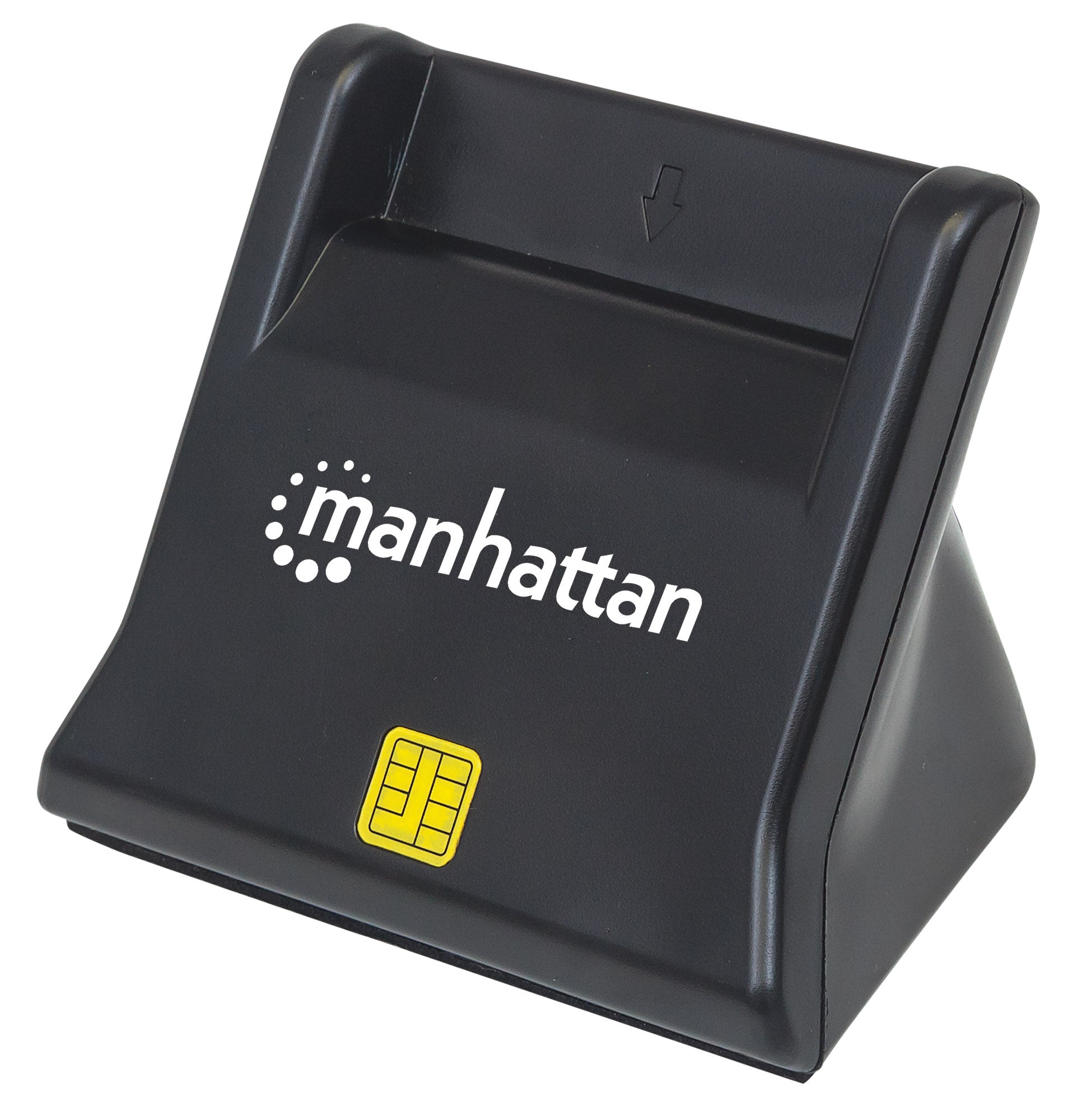

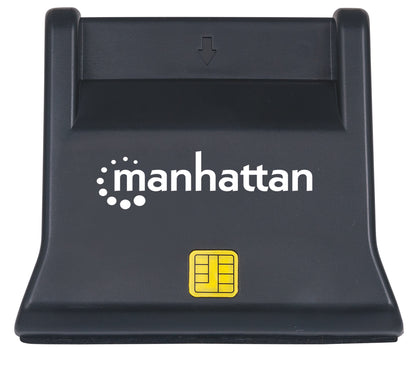

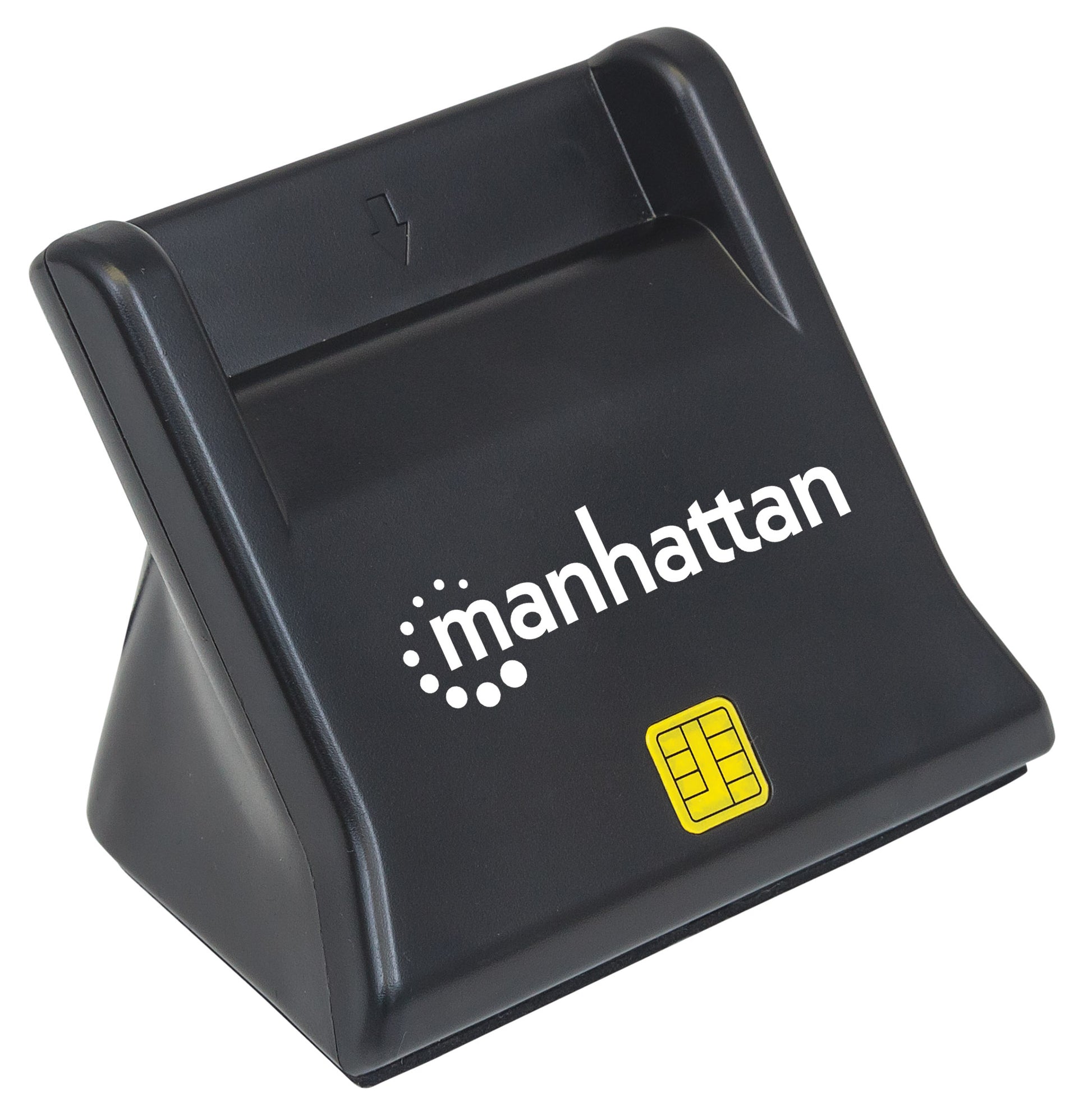

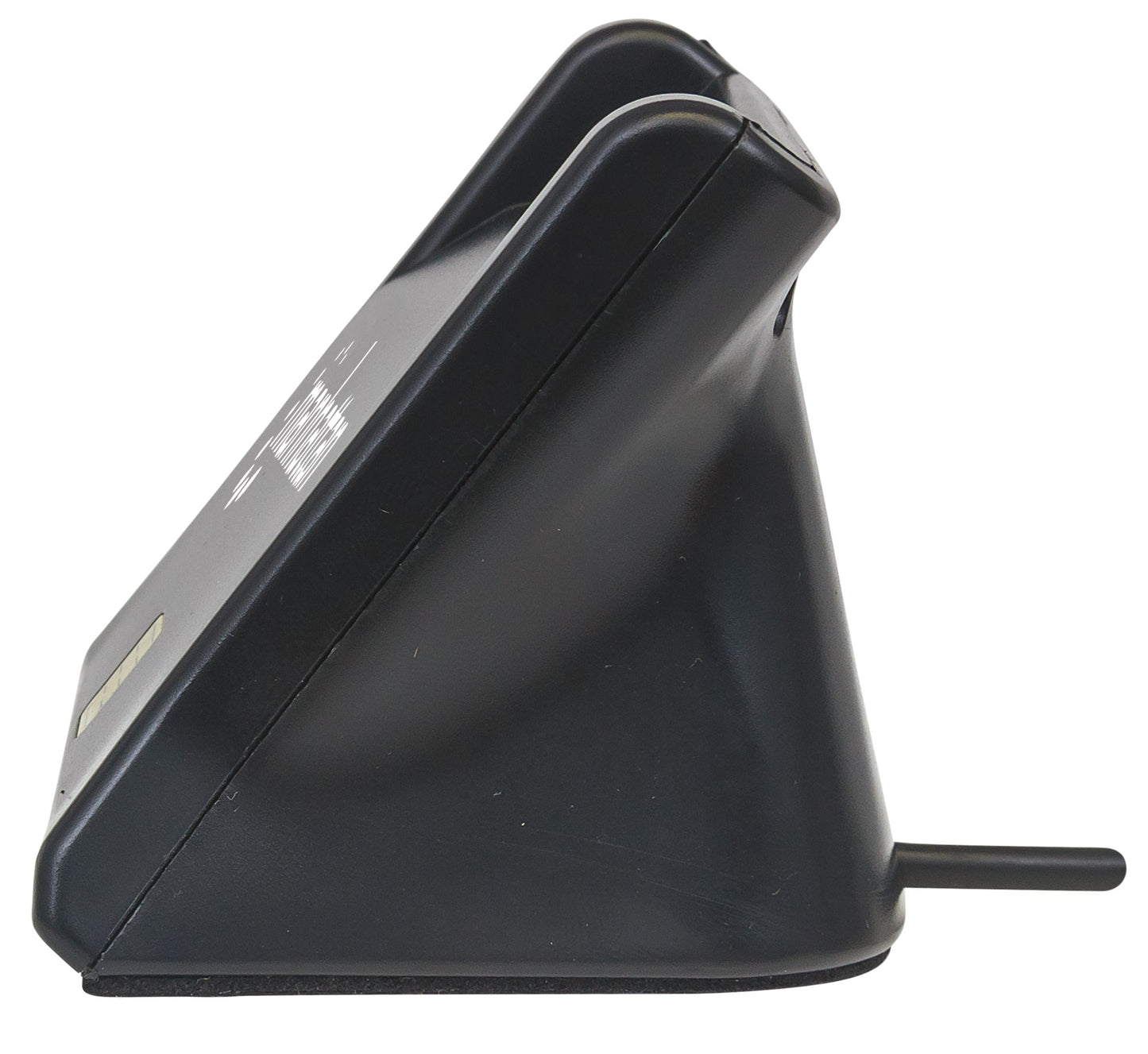

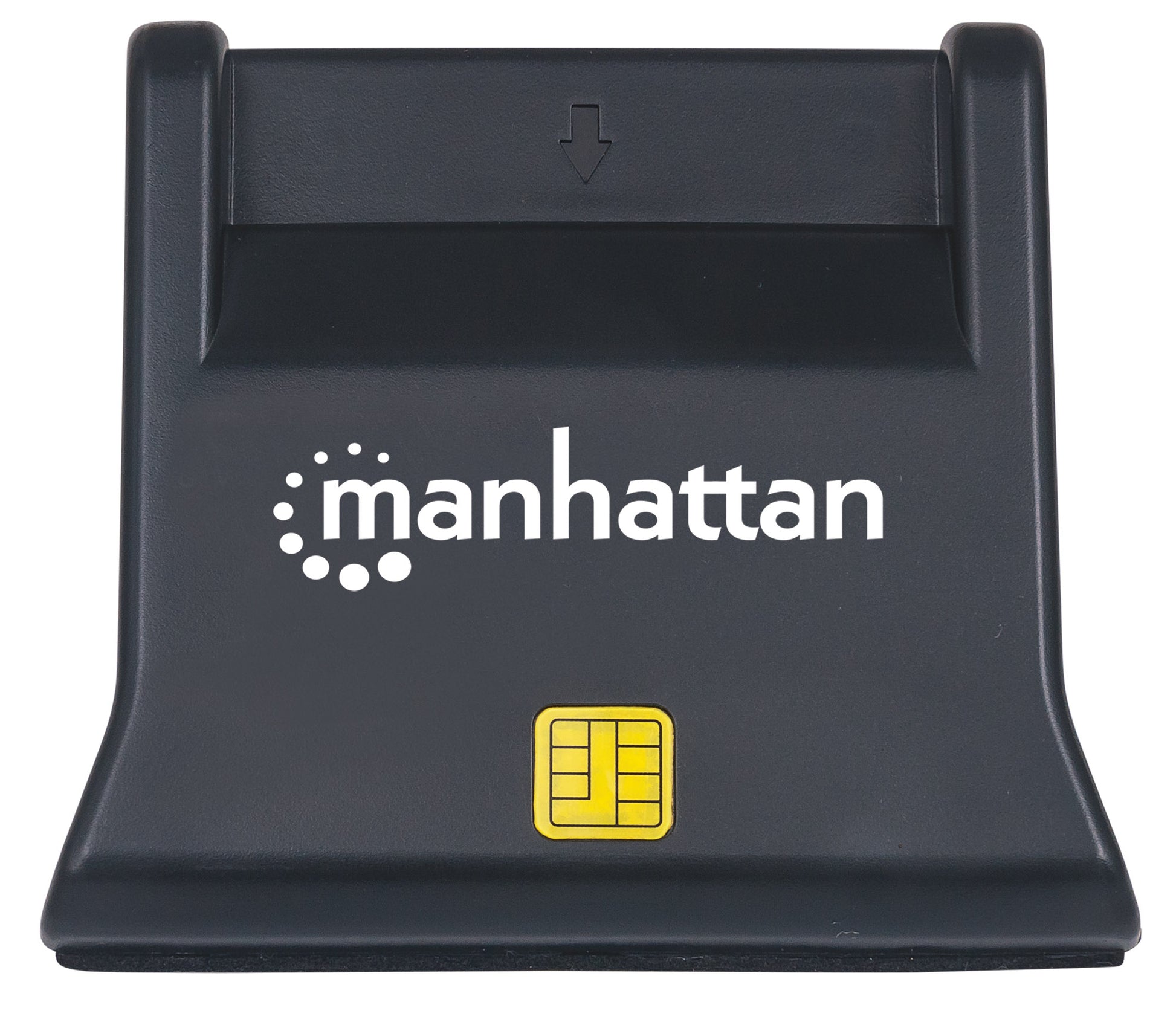

Standing USB-A Smart Card Reader

USB 2.0 Type-A Male to Contact Reader Interface, Supports Windows, macOS and Linux, Reads SIM Cards with Adapter, 90 cm (3 ft.) Cable, Black

Highlights

Compatible with friction-type contact smart/SIM cards
Ideal for transactions and applications requiring secure information exchanges
For use with government, healthcare, banking, entertainment and more

SKU: 102025

[ view high resolution images ]

External Desktop Contact Smart Card Reader for secure data and access protection

Smart card technology finds popular applications in security and access control, financial transactions, medical records, loyalty programs, toll and vending collection, enterprise and single-user network sign-on and more that require secure information exchanges. Contact smart cards have a contact, or “chip," area with several contact pads that, when inserted into a Manhattan USB Standing Smart/SIM Card Reader, can authenticate the user and safely transfer information between the card and the host computer. Smart cards are utilized throughout the world, replacing less secure and less reliable barcode ID and magnetic stripe cards to provide flexible and standard transactions and strong, tamper-resistant authentication with minimal human intervention.

Quick and Easy Installation

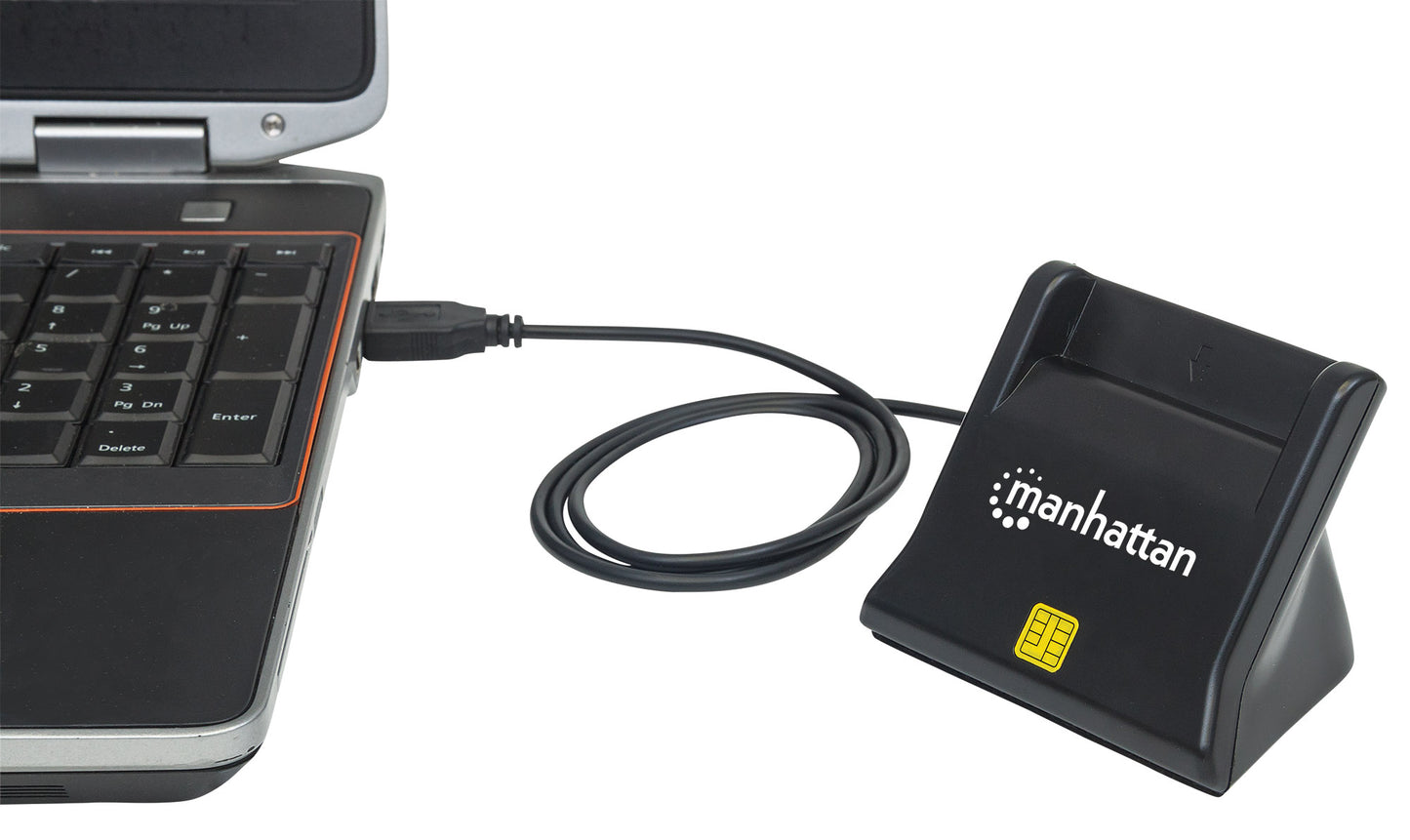

Ideal for desktop and notebook computers without built-in readers, the Manhattan USB Standing Smart/SIM Card Reader is easily installed using any USB port plus the software and driver from the product page. Plug and play with Windows and Mac compatibility, it requires no external power supply or cables for a simple USB connection.

Compatible with friction-type contact smart/SIM cards
Ideal for transactions and applications requiring secure information exchanges
For use with government, healthcare, banking, entertainment and more
Supports host communication speeds up to 480 Mbps
Sturdy and upright design — makes this a great desktop option
Plug and play — installs quickly and easily
Supports JCOP4 and EMV 4.1

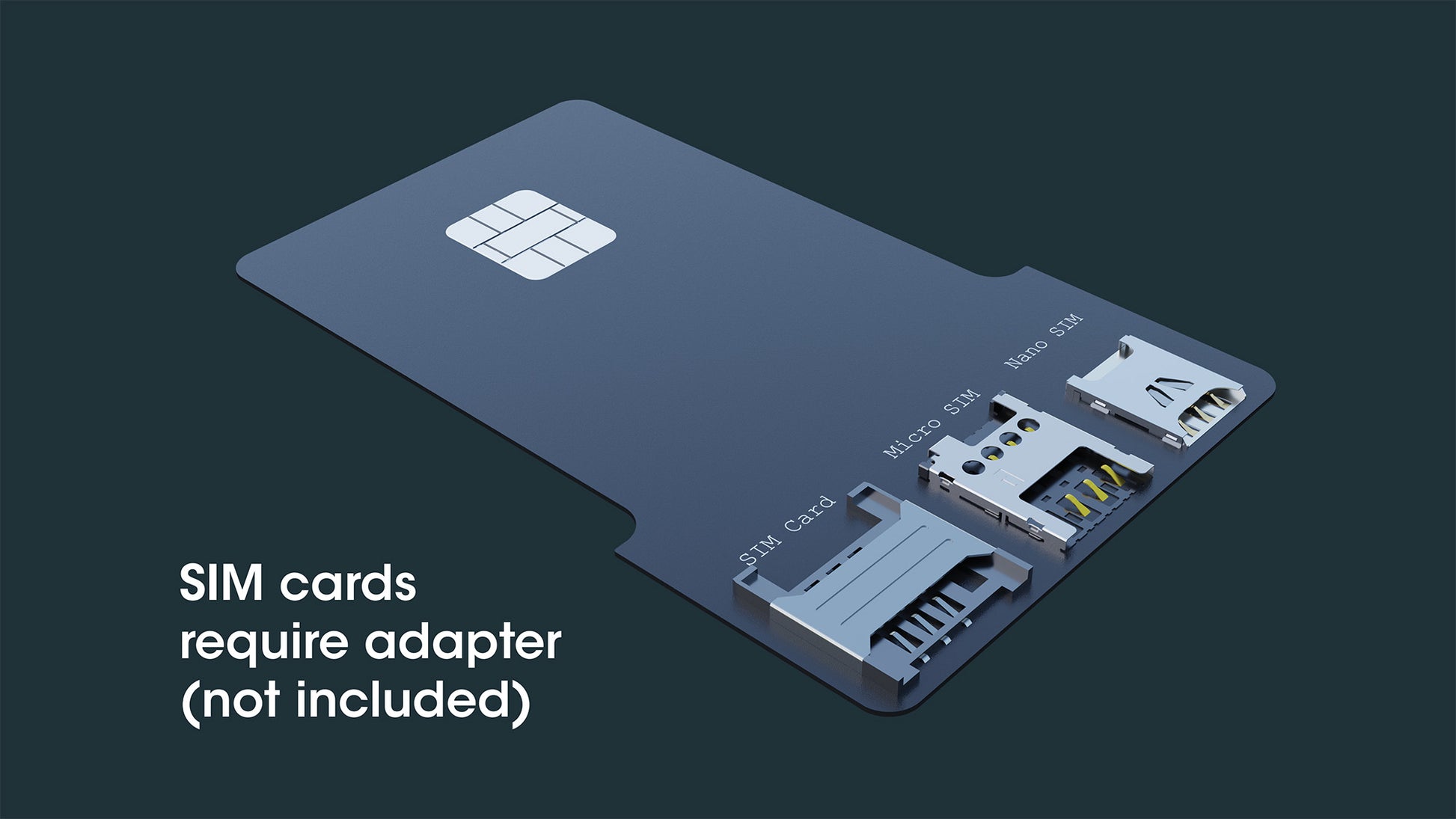

Requires adapter to read SIM cards (not included and not available from Manhattan)
Three-Year Warranty

FCC
CE
RoHS2
USB 2.0
CCID Rev.1.1
EMV4.0
CAC
Supported cards: Smart card / SIM (with SIM bracket) card
Transfer speed: up to 480 Mbps
CPU card: meets ISO 7816-1, 2, 3, 4 (supports T=0 and T=1 protocols), PC/SC version 1.0/2.0 standard and EMV 4.0
Memory card: synchronous 2-line, 3-line, SLE4418, 4428, 4432, 4442, AT88SC1608, 45D041 and I2C interface
PC/SC compliant 1.0/2.0, CT-API software library (SDK)
Supported OS including but not limited to: JCOP4
LED: power indicator, activity indicator
Power: voltage, USB 5 V + 5 %; consumption, 60 mA maximum
Contact smart/SIM card slot
Integrated USB type-A cable: 0.86 m (3 ft.)
Weight: 180 g (6.3 oz.)
Dimensions: 63 x 81 x 63 mm (2.5 x 3.2 x 2.5 in.)
Housing: ABS
Operation Temperature: 32 – 104°F (0 – 40°C)
Storage Temperature: -4 – 140°F (-20 – 60°C)
Humidity (noncondensing): 0 – 96%
Windows XP/Vista/7/8.1/10/11 or Mac OS 9 or above or Linux compatible
Standing USB Smart/SIM Card Reader
Quick Instruction Guide
