Manhattan

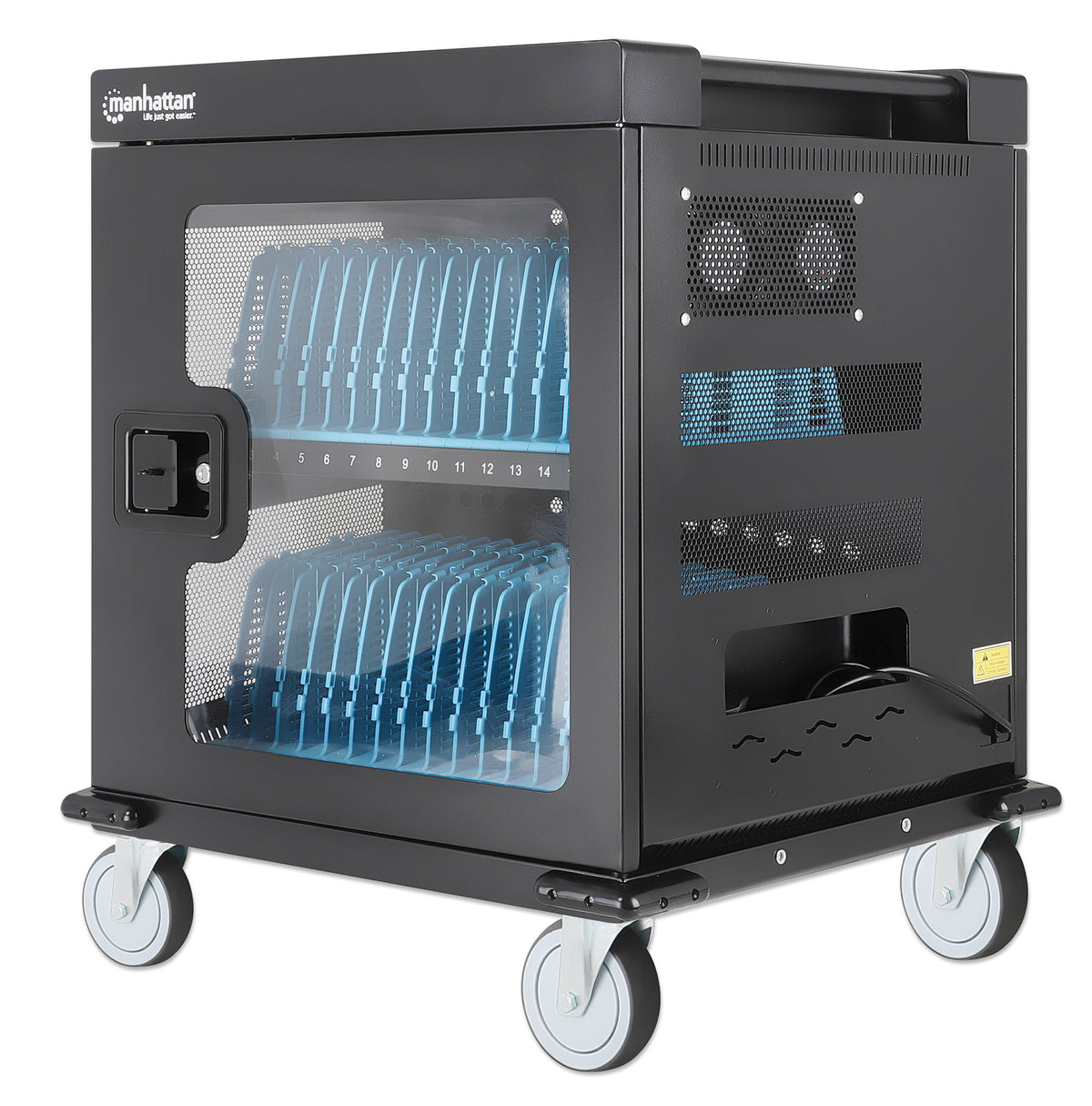

UK 32-Port AC Charging Cart

UK 32-Port AC Charging Cart

British BS1363A Outlets Built-in on the Rear, Spacious Device Bays, Lockable, Surge Protection, Black

Highlights

  • Safely stores and charges devices up to 15.6"
  • Built-in UK BS1363A outlets (32 total) on the back
  • Protection against overload, overcurrent, short-circuiting and voltage spikes

SKU: 180542

NDAA Compliant
[ view high resolution images ]

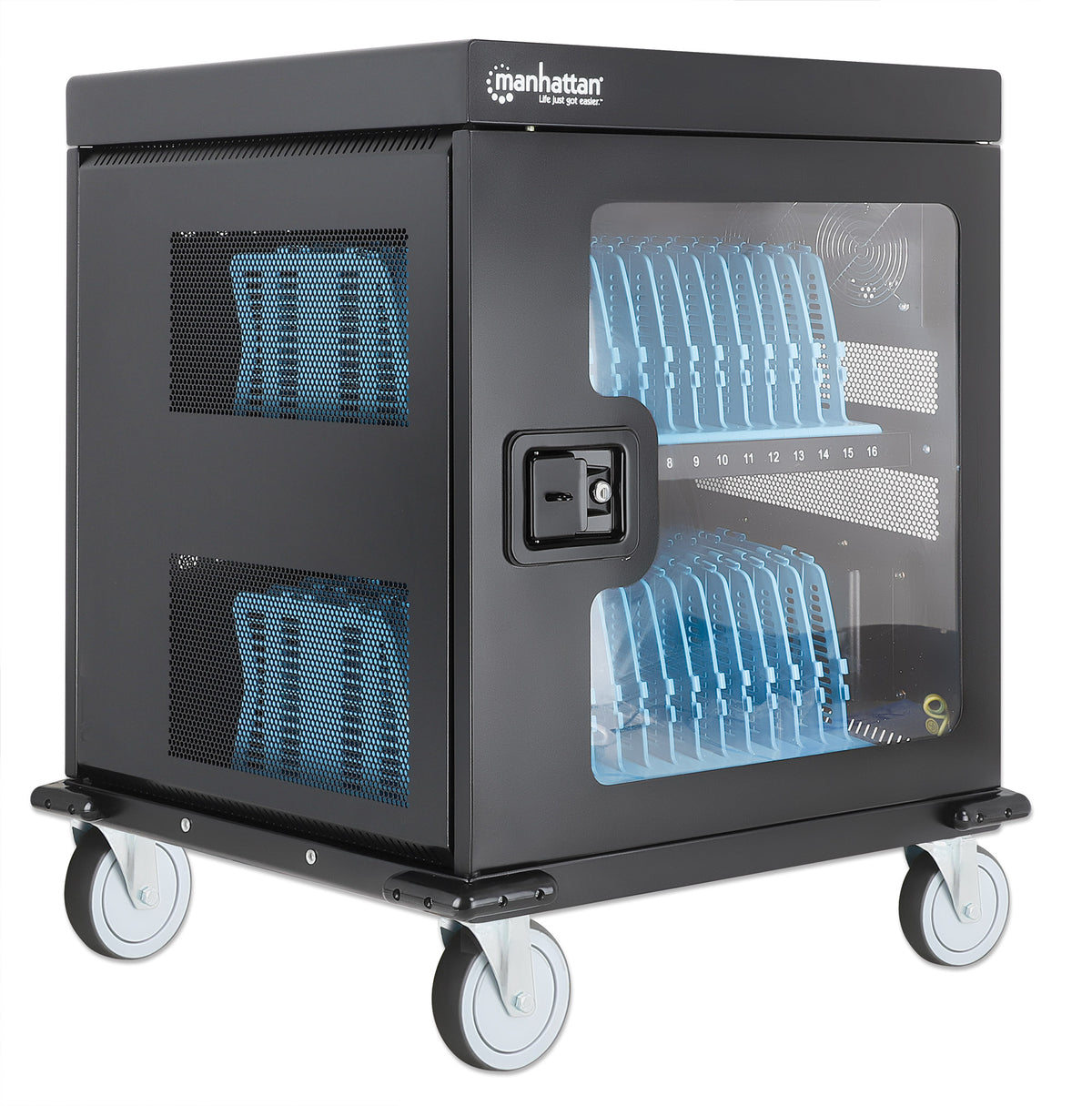

Charging Cart - a mobile charging solution for educational environments, hospitality and more

Charging and storing devices is easy with the Manhattan 32-Port AC Charging Cart. It is the ideal solution for keeping devices ready and secure in schools, restaurants, gyms, doctor’s offices, universities, hotels, car rental agencies and more. It helps you easily power up and store all the devices your students, guests, patients, customers and patrons use each day.

Smart Power

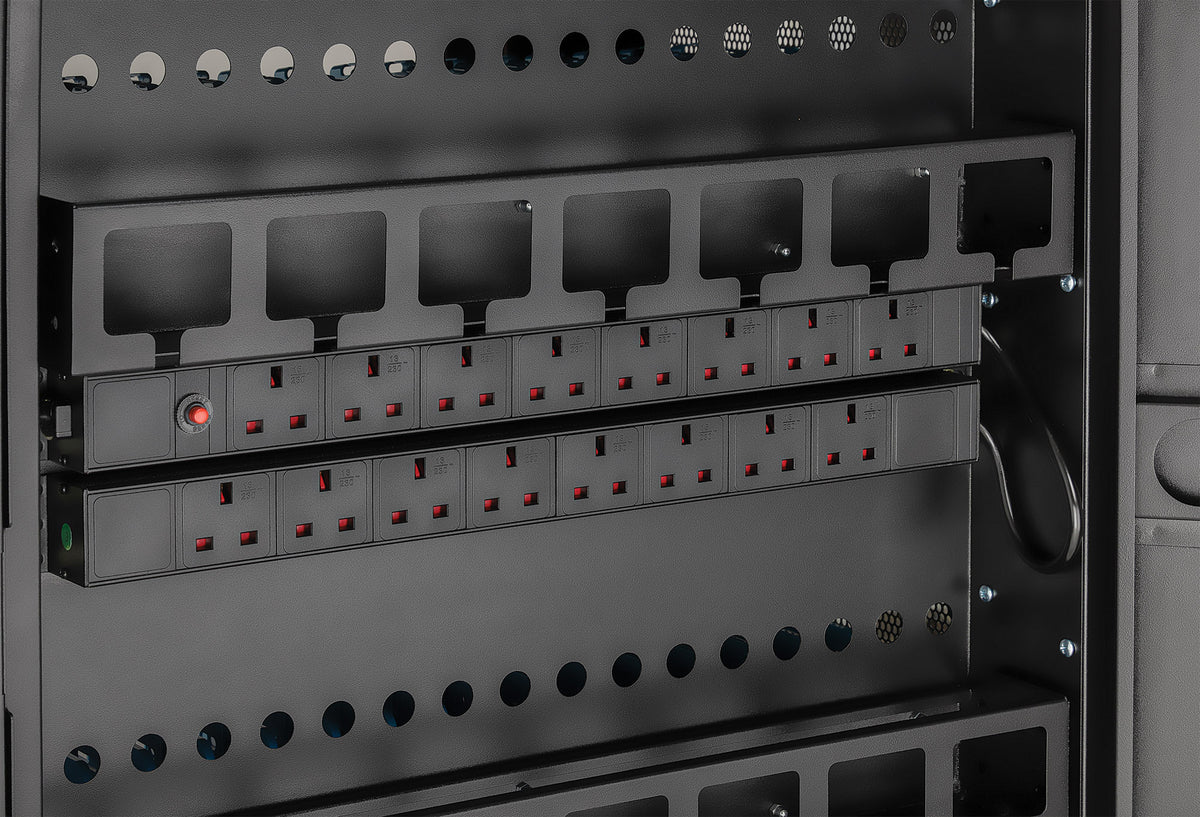

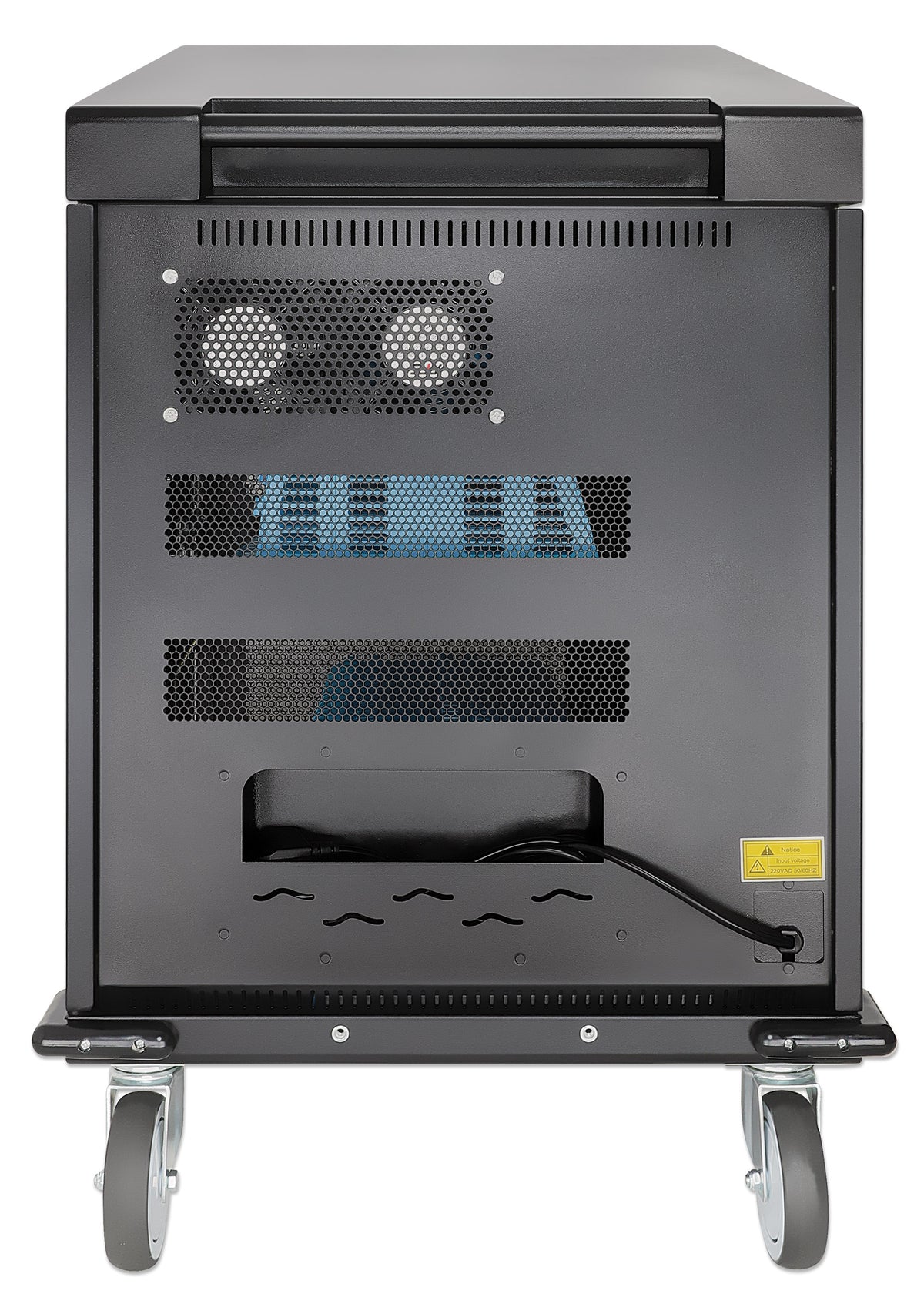

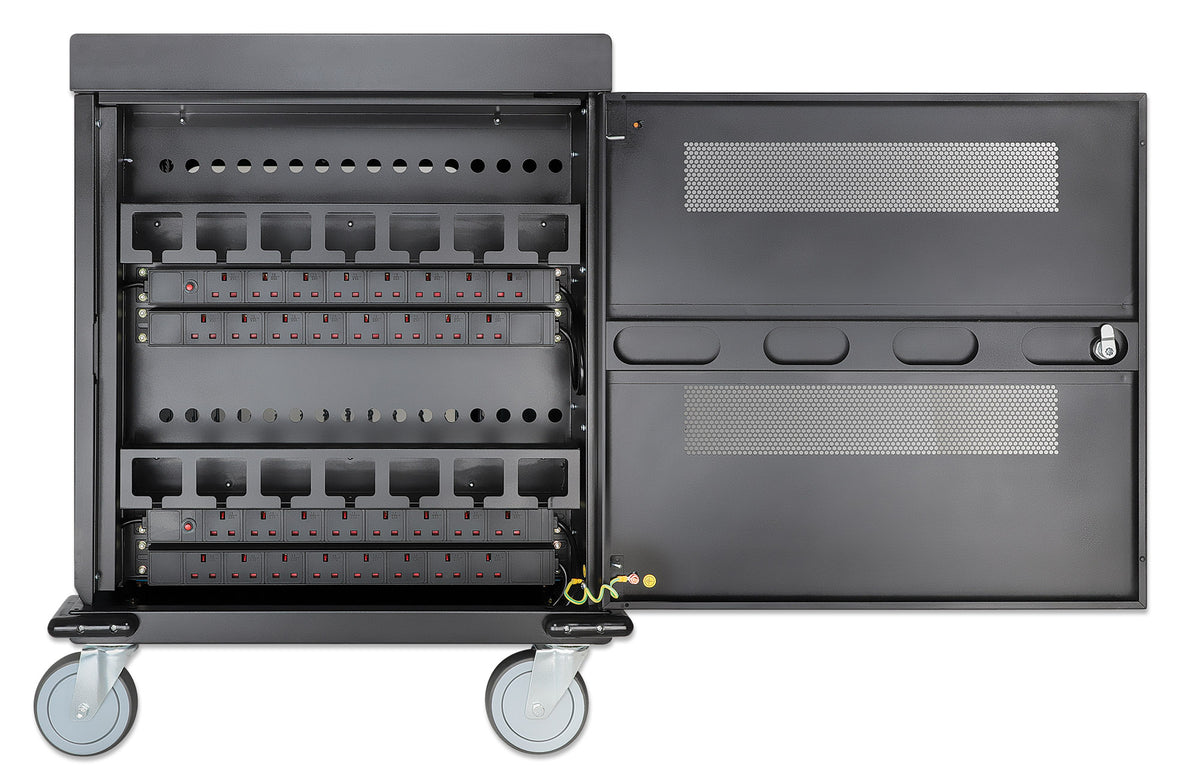

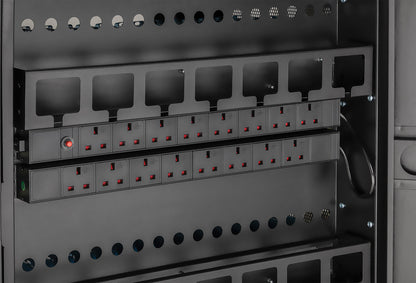

The built-in AC outlets in PDUs at the back of the unit make it easy to charge devices such as laptops, notebooks, tablets, phones and many others using their power adapters or wall chargers. Admins get easy access thought the door on the back of the unit to easily plug into the outlets and feed the cables through to the devices.

Physical security

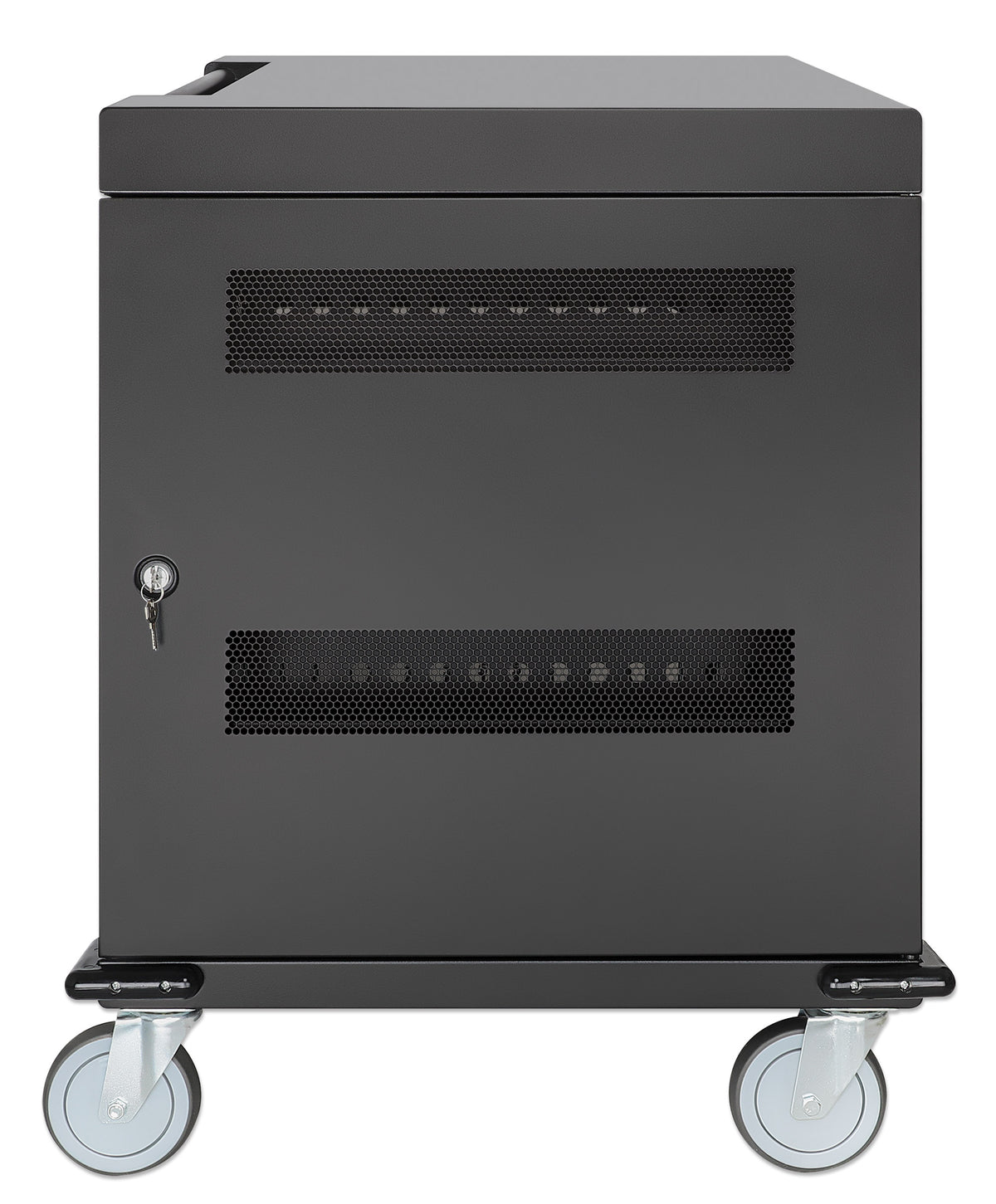

The sturdy, durable steel housing of this Charging Cart offers a visible sign of professional device management and protection. Key-locked front and back doors help keep devices secure while they charge or when they are not in use. The included heavy-duty casters let you roll the cart where you need it; wheel locks let you easily secure it in place.

Organized and versatile

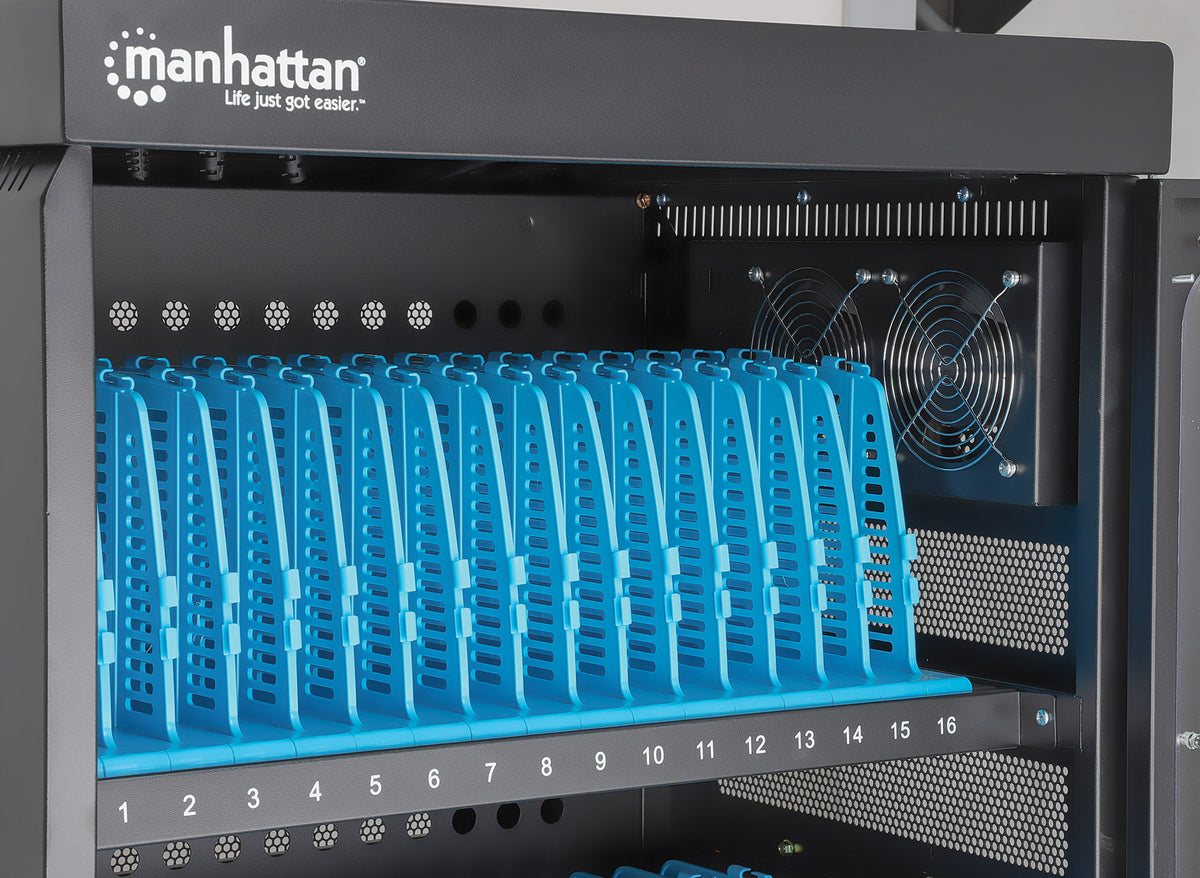

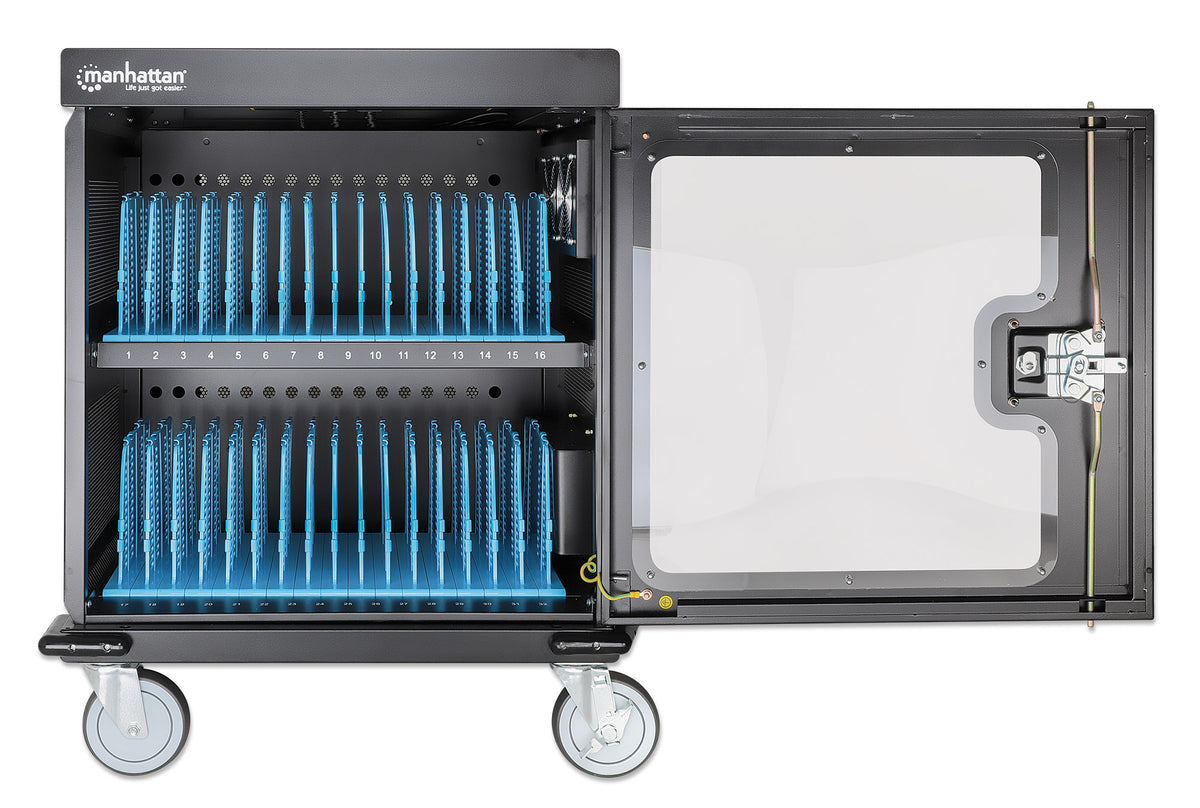

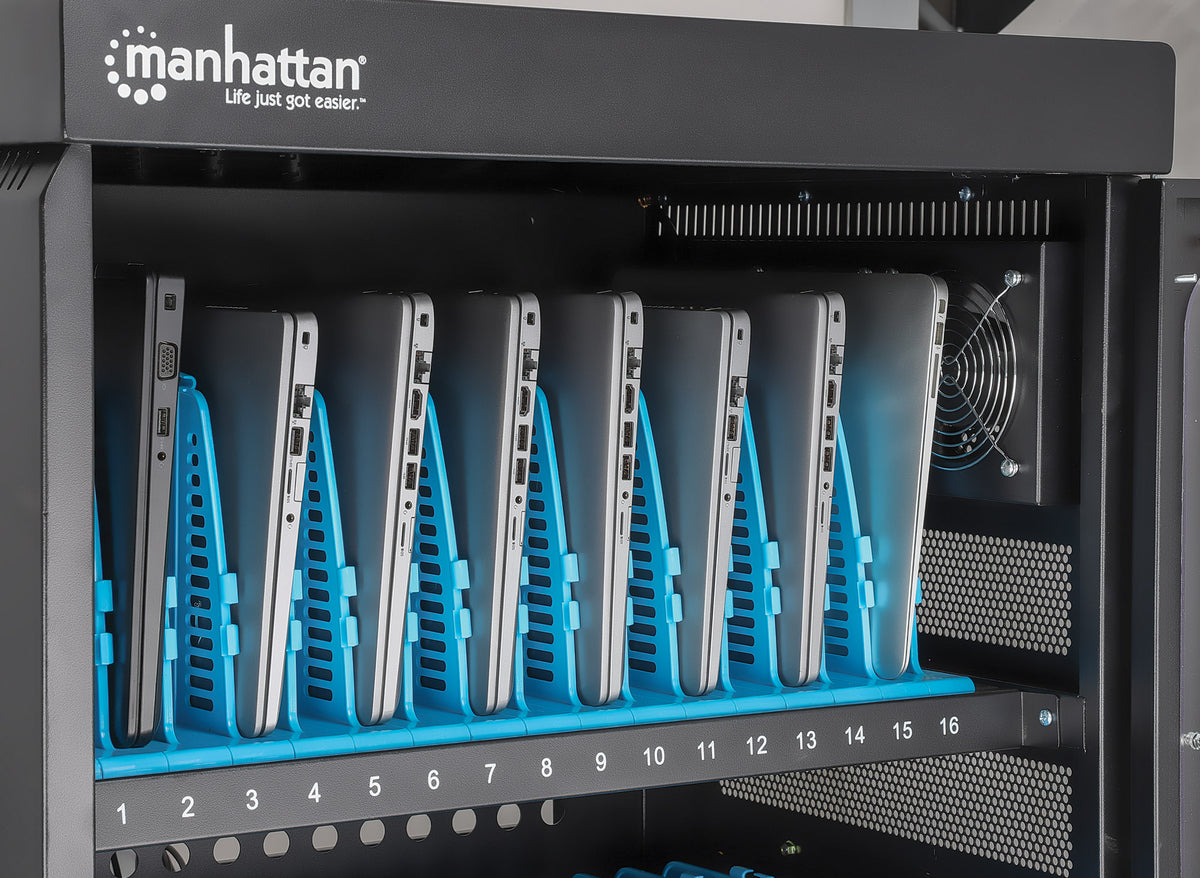

Keep your devices organized in the bay slots that offer plenty of space (400 x 25 x 280 mm), even for bulky cases. The built-in cable-management clips on the bay dividers let you structure your charging cables (USB cables are available from Manhattan) for better organization and a cleaner look. The included power cable is removable for better storage.

  • Safely stores and charges devices up to 15.6"
  • Built-in UK BS1363A outlets (32 total) on the back
  • Protection against overload, overcurrent, short-circuiting and voltage spikes

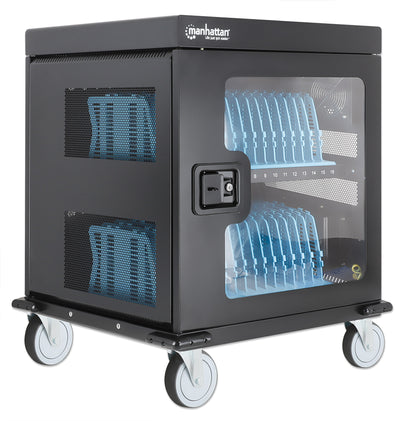

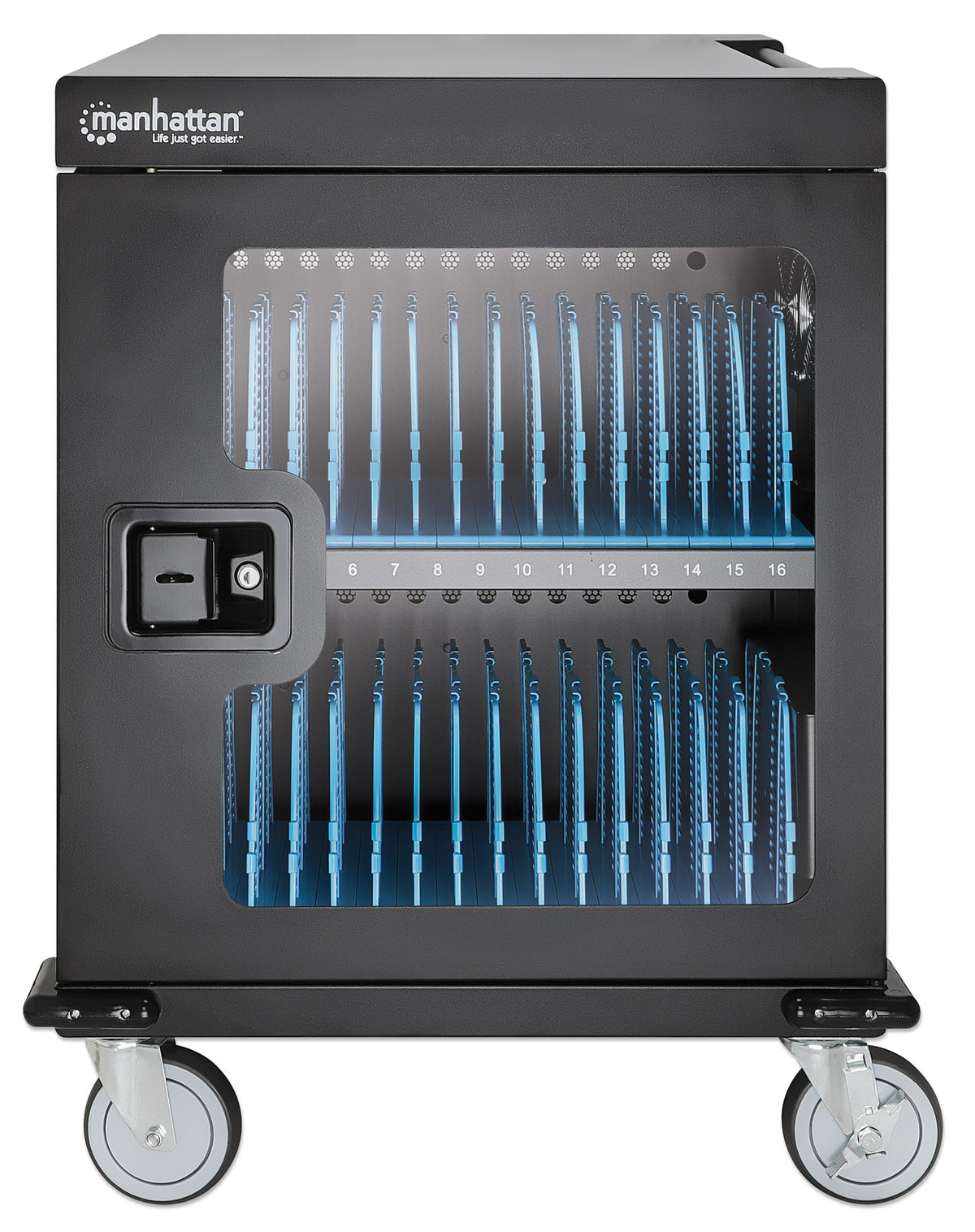

  • Combined steel and safety-glass door on the front
  • Sturdy, secure, powder-coated metal housing; 3-point door lock on front and back; two included keys

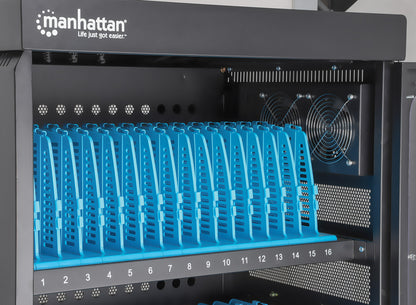

  • Spacious device bays (400 x 25 x 280 mm each) with cable management built into the dividers
  • Integrated fan and ventilation slots for maximum airflow and cooling efficiency
  • Built-in handle and four removable heavy-duty wheels
  • Round edges to avoid injuries in busy environments
  • Earthing kit included
  • Three-year warranty

    Standards and Certifications
  • CE
  • RoHS
  • UKCA
  • Electrical
  • AC input: 100.0 - 250.0 V; 50 - 60 Hz; IEC320 C14
  • British BS1363A AC outlets: 32
  • Protection Characteristics
  • Short-circuit (SCP) with auto-recovery mode
  • Overvoltage (OVP) with auto-recovery mode
  • Overcurrent (OCP) — current limit: 150% (max)
  • Physical
  • Housing: cold-rolled, powder-coated steel
  • Polycarbonate safety-glass door
  • Unit dimensions: 578 (D) x 640 (W) x 876 (H) [mm] 22.76 (D) x 25.2 (W) x 34.49 (H) [in]
  • Slot dimensions (32): 400 x 25 x 280 mm (15.75 x 1.2 x 11 in.)
  • Total internal storage space per shelf (D x W x H): 400 x 400 x 280 mm
  • AC power cable length: 2 m (6.56 ft.)
  • Weight: 56 kg
  • Four heavy-duty casters
  • Caster details
  • - Wheel materials: PVC/PU - Wheel diameter: 125 mm - Caster width: 32 mm - Caster height: 155 mm - Plate size: 92 x 62 mm - Hole spacing: 72 x 45 mm - Bracket thickness: up to 3 mm - Load capacity: 100 kgEnvironment
  • Operation temperature: 0 - 45°C (32 - 113°F)
  • Storage temperature: -15 - 45°C (-5 - 113°F)
  • Humidity (noncondensing): 20 - 80%
  • Package Contents
  • 32-Port AC Charging Cart
  • Two door-keys
  • Documentation

California Proposition 65 WarningWarning

This product can expose you to chemicals including Antimony Trioxide, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • EAN: 0766623180542
    • UPC: 766623180542

  • Physical Specifications

    • Weight: 56 kg
    • Dimensions: 578 (L) x 640 (W) x 876 (H) [mm]
    • Carton Quantity: 1
    • Carton Weight: 78.00 kg

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download

    • Technical Drawing     » Download


  • Manual
    • User Manual     » Download

    • Quick Installation Guide     » Download

    • Smart PDU Function Description     » Download
