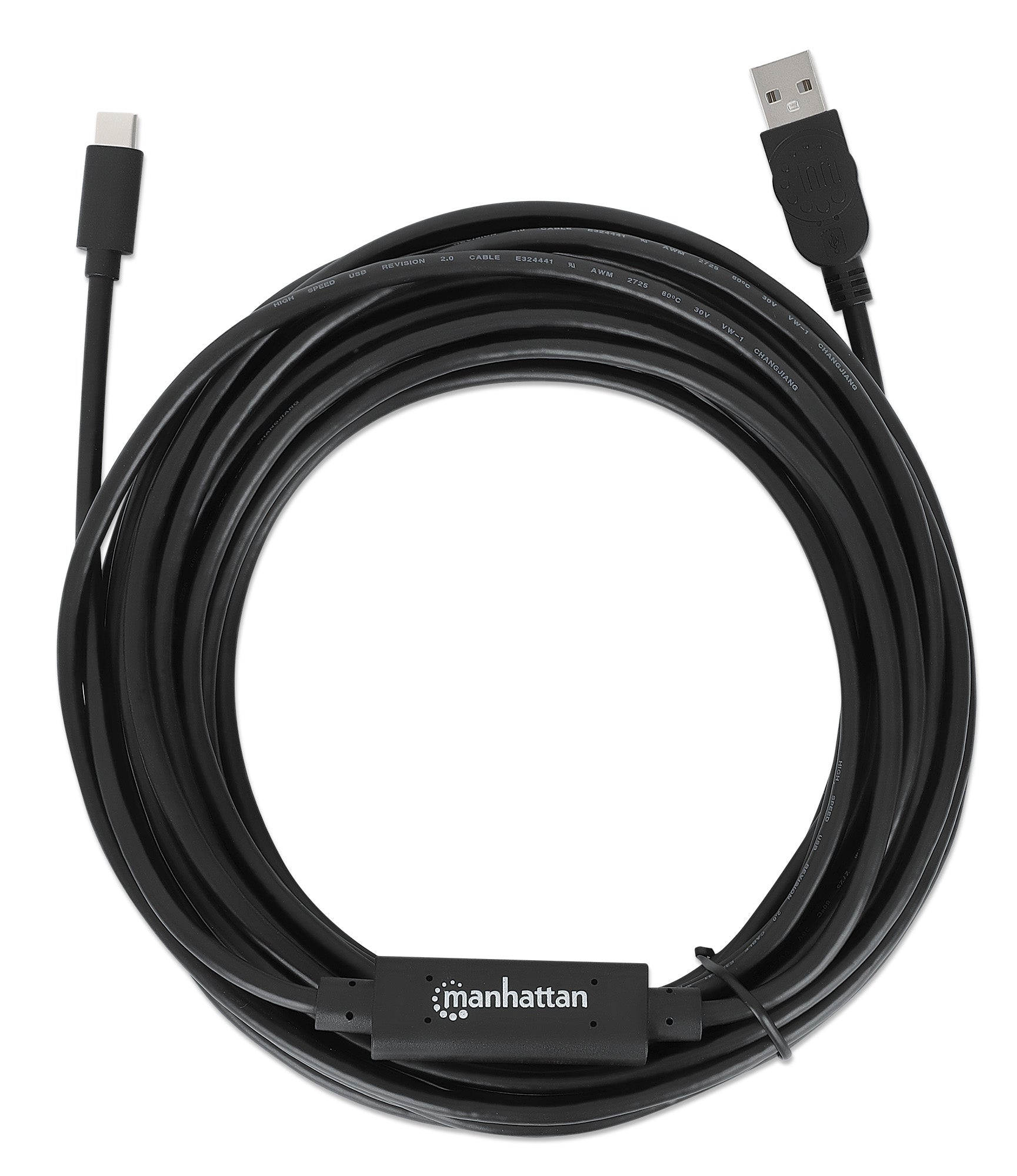

USB 2.0 Type-A to Type-C Active Device Repeater Cable

Active USB Cord / Device Cable - go beyond the length limit of standard USB 2.0 cables

Standard USB 2.0 cables have a length limit of 5 m (16 ft.), which is as far as passive USB cables will carry the signal. The Manhattan USB 2.0 Type-A to Type-C Active Device Repeater Cable lets you overcome that classic limitation to connect a USB-C device, like a smartphone or tablet, at further distances.

Active signal boost

This active USB 2.0 cable beats distance restrictions by incorporating bus-powered active circuitry, which can establish a 10 m (33 ft.) connection distance to your device.

Complete USB 2.0 features

With one USB-A male connector and one USB-C male connector, this USB cord gives you an extra-long range to sync music, photos or data with fast speeds up to 480 Mbps. The double shielding (aluminum foil and braid) and corrosion-resistant contacts provide maximum signal integrity.

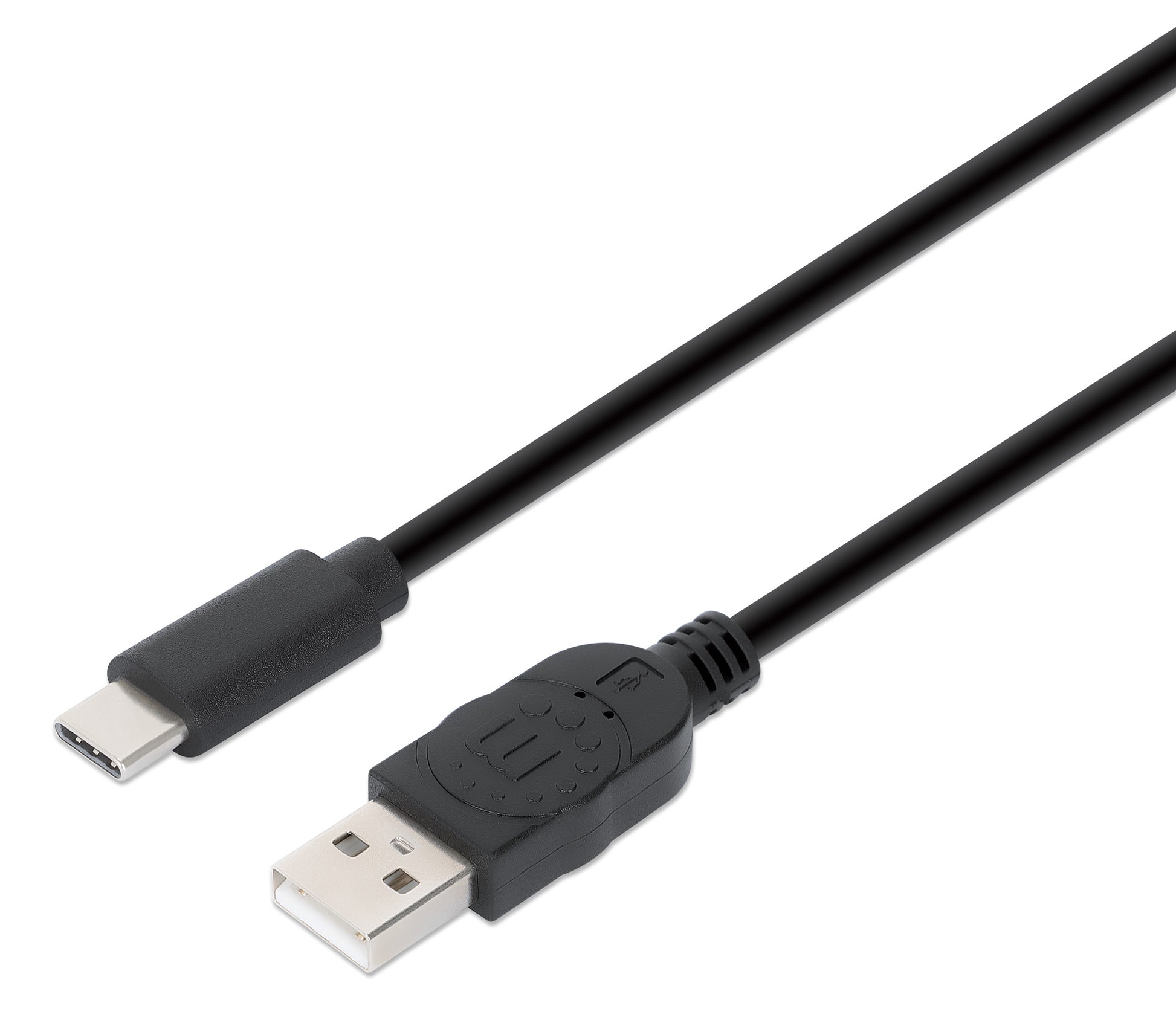

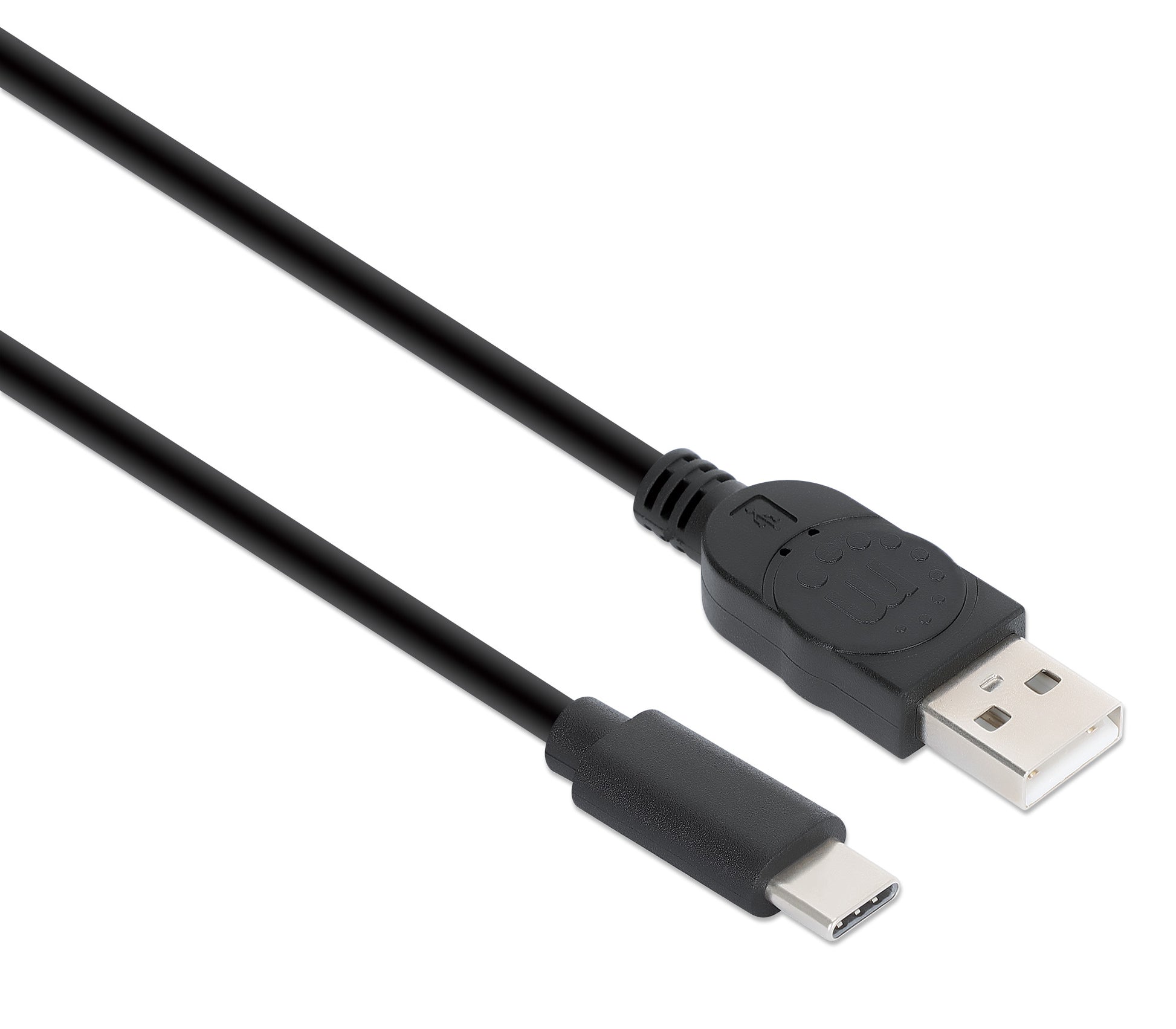

• USB-A male to USB-C male for connecting a Type-A device to a USB-C port over longer distances
• USB 2.0 Hi-Speed transfer rates up to 480 Mbps
• Strong built-in amplifier circuitry to overcome USB distance limitations and reduce signal loss
• Foil and braid double shielding to reduce EMI and other interference sources
• Corrosion-resistant contacts
• Heavy-duty strain relief
• Withstand current up to 5 V / 1 A
• Plug-and-play installation; Windows®, macOS®, Linux® and Chrome OS™ compatible
• Bus powered: no external power supply needed
• Works with standard USB 2.0 devices; backward compatible with USB 1.1
• Unidirectional design - can only connect from a USB-A host device to a USB-C device
• Three-year warranty

Standards and Certifications
• UL
• CE
• FCC
• RoHS
• REACH
• UKCA
General

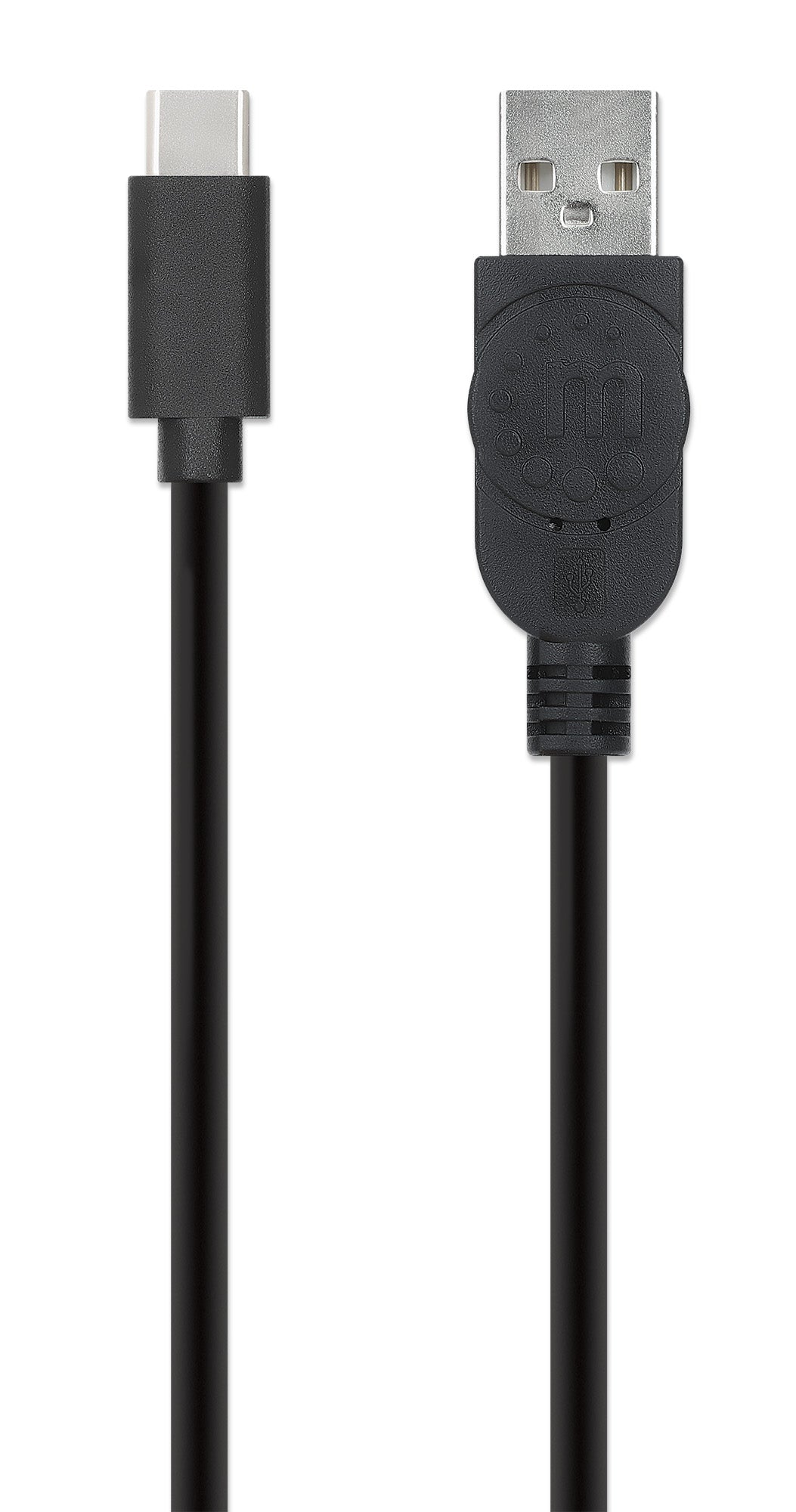

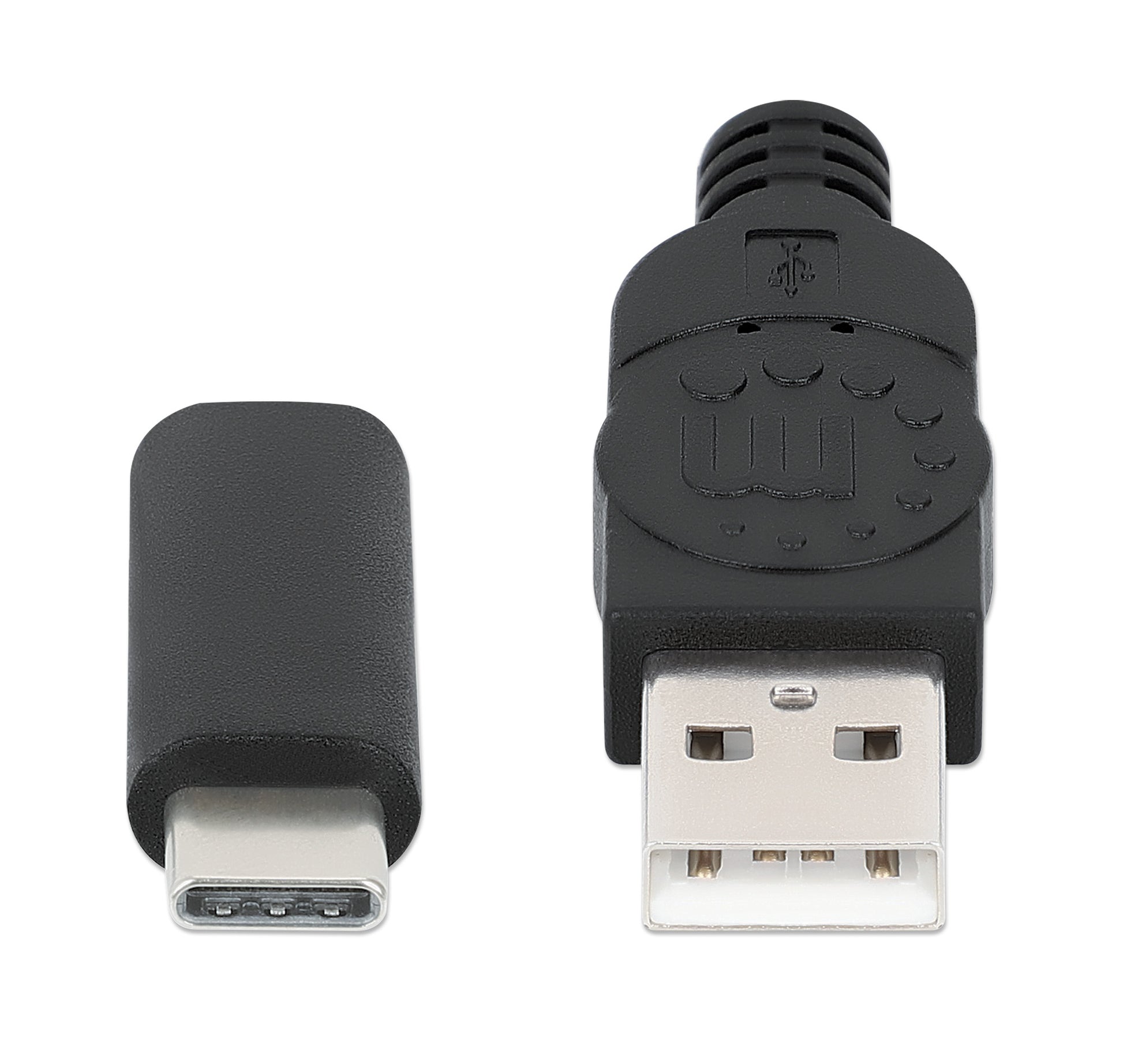

• One USB-A 4-pin male
• One USB-C 24-pin male
• 28/24 AWG
• Double shielding: aluminum foil and braid
• Nickel-plated contacts
• Wire: copper-clad aluminum (CCA)
• Jacket OD: 5.5 mm (0.22 in.)
• Molded PVC boot
• Length: 10 m (33 ft.)
• Net weight: 410 g (0.9 lbs.)
• Gross weight: 475 g (1.05 lbs.)
Electrical
• Withstanding voltage: 300.0 V DC 10 ms
• Insulation resistance: 5 MΩ
• Contact resistance: 2 Ω
• Withstand current up to 5.0 V / 1.0 A
Operating Environment
• Operation temperature: 0 - 40°C (32 - 104°F)
• Storage temperature: -20 - 60°C (-4 - 140°F)
• Humidity (noncondensing): 0 - 96%
Package Contents
• USB 2.0 Type-A to Type-C Active Device Repeater Cable

• Other Part Numbers

• EAN: 0766623153904
• UPC: 766623153904



• Physical Specifications

• Weight: 0.41 kg
• Dimensions: 10 (L) x 0.011 (W) x 0.019 (H) [m]
• Carton Quantity: 60
• Carton Weight: 21.10 kg
