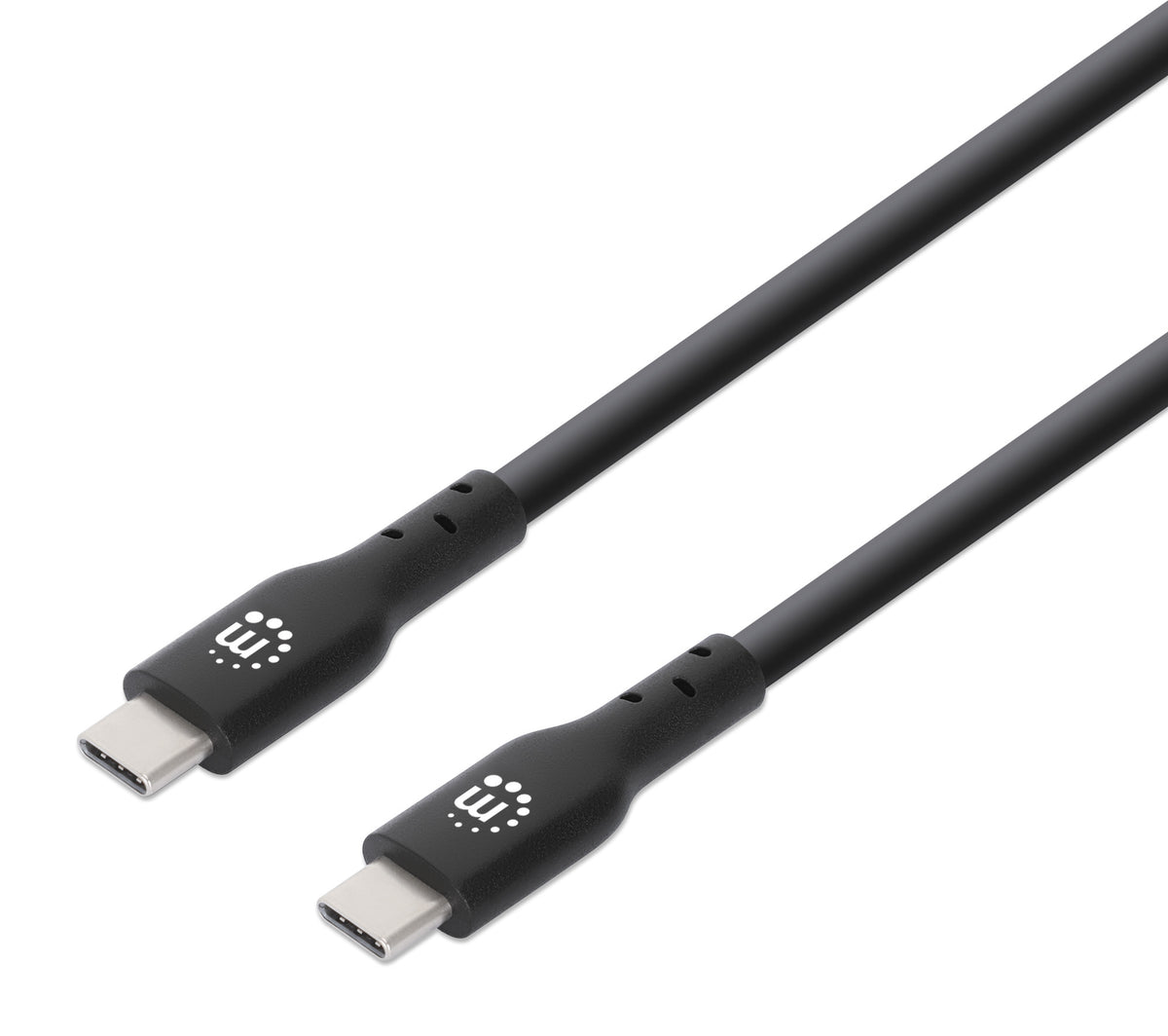

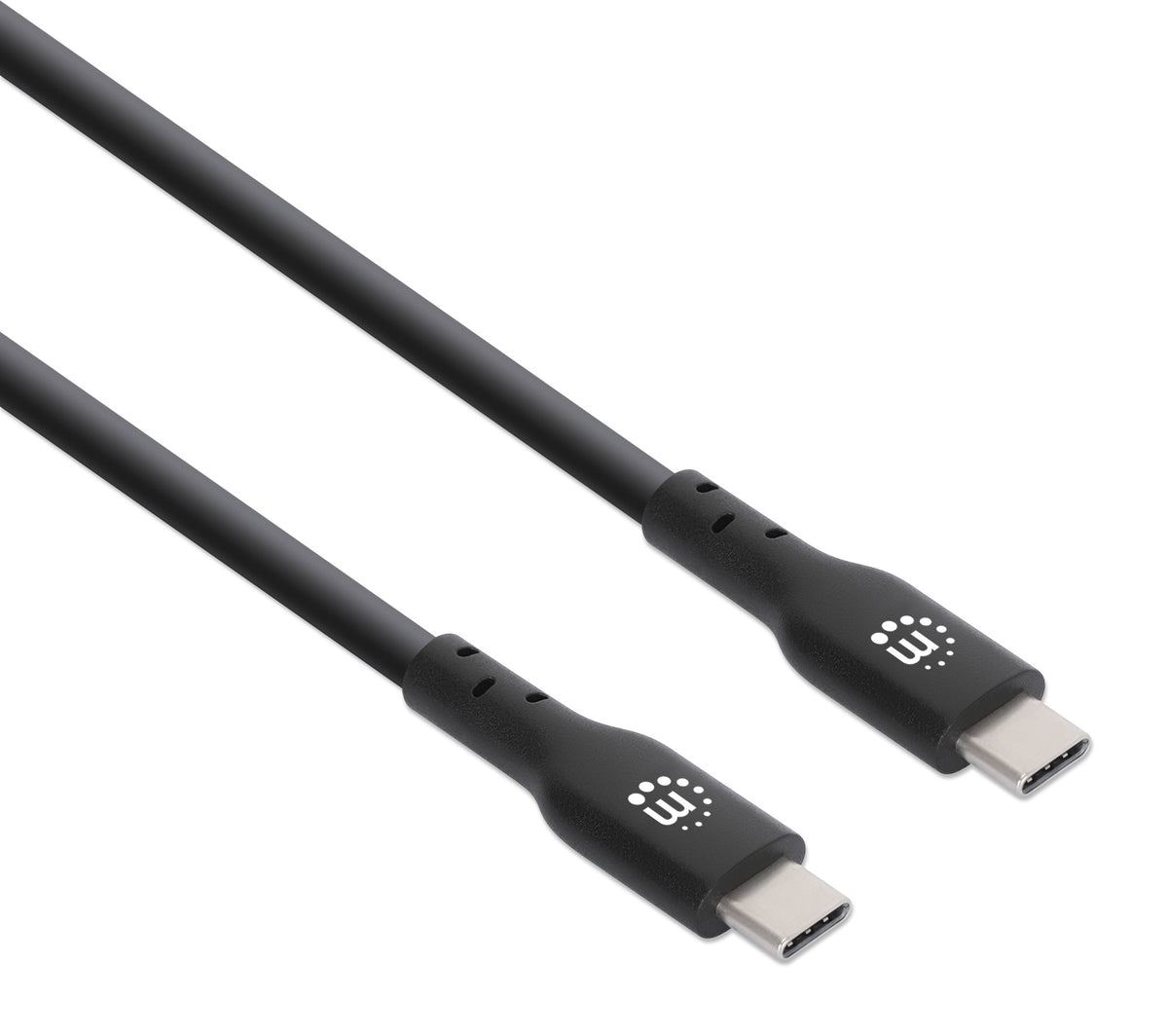

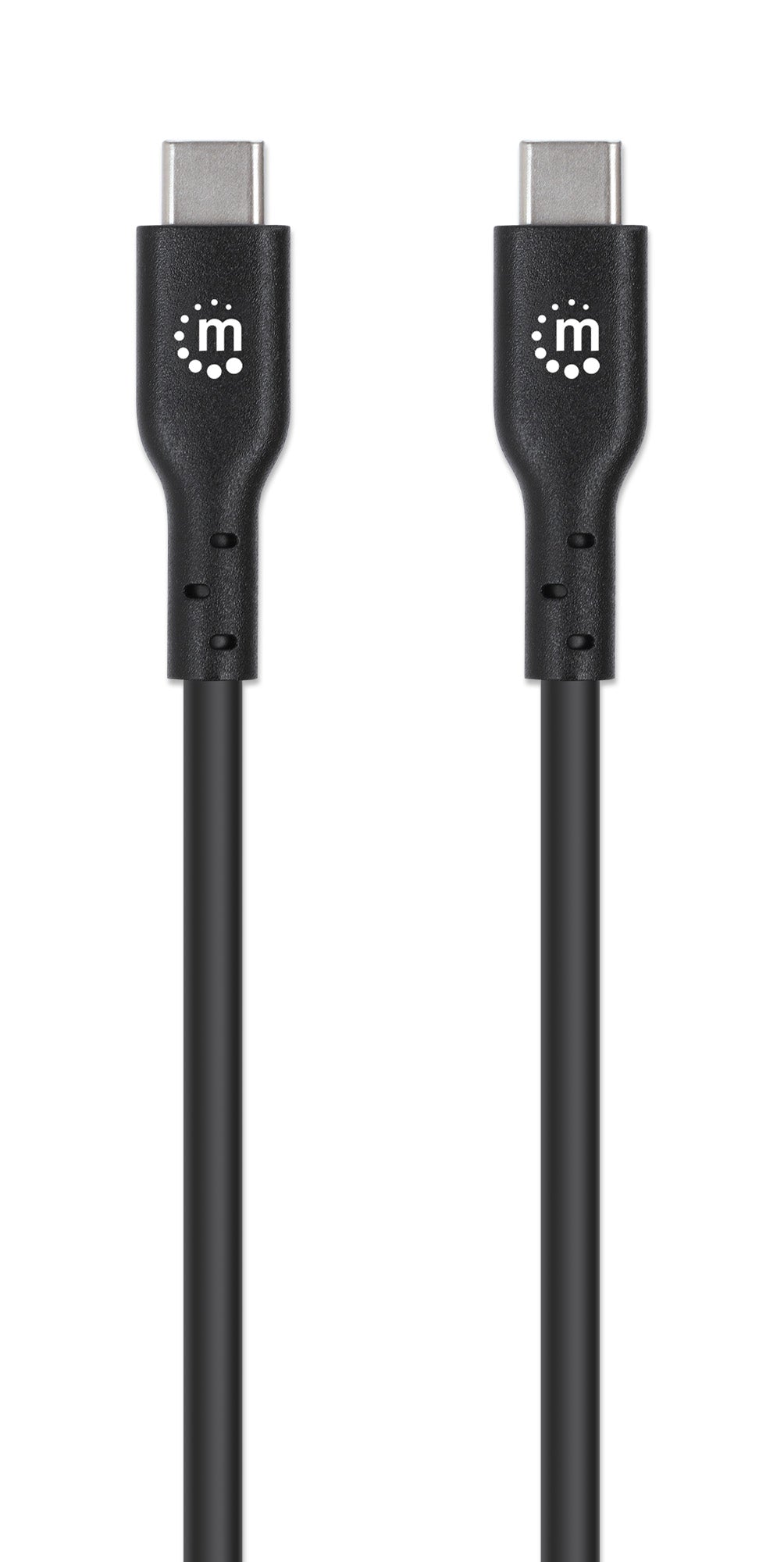

USB 2.0 Type-C Device Cable

Manhattan Hi-Speed USB C Cables easily connect USB peripherals and accessories with USB C peripherals and accessories. Manhattan Hi-Speed USB C Cables support data transfer rates up to 480 Mbps on Windows and Mac systems for fast, reliable transmissions. Nickel-plated contacts, shielding and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB C male to USB C male
• Connects a USB C device to a USB C device
• Supports speeds of up to 480 Mbps and fast charging of up to 3 A (60 W)
• Charges a USB-C powered device such as a notebook, Macbook Pro® or tablet from a USB-C PD wall charger or powerbank
• Hi-Speed USB for ultra-fast data transfer rates with zero data degradation
• Lifetime Warranty

Standards and Certifications
• USB 2.0
Connectors

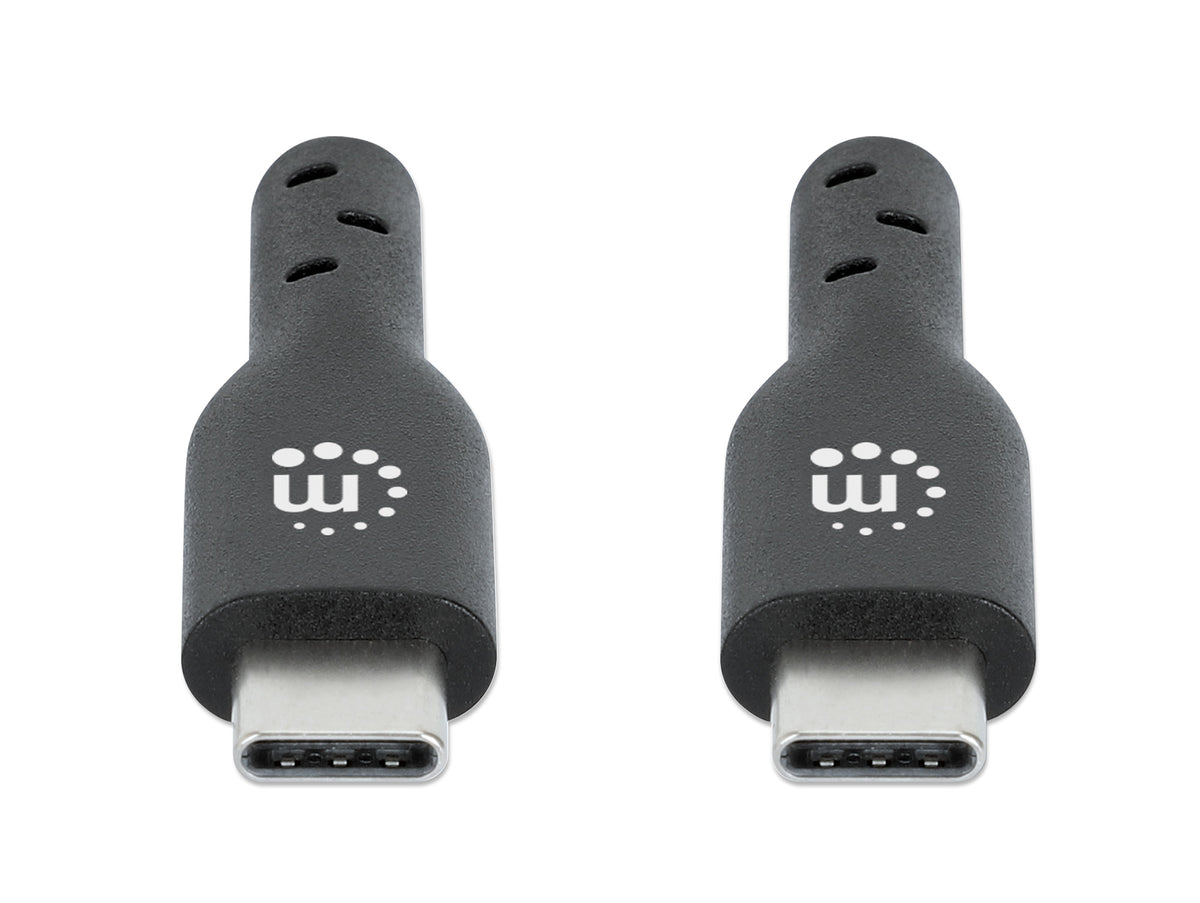

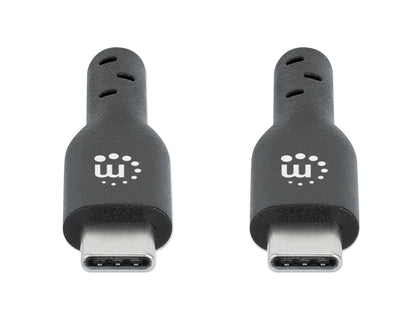

• USB C male (x2)
• Nickel plated
• Molded PVC boot
Cable
• 30 AWG conductors
• Shielded
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 5 MΩ
• Contact resistance: 10 Ω
• Thermal plastic casing
• Outer diameter (OD): 3.8 mm (0.15 in.)
Package Contents
• Hi-Speed USB C Cable

• Other Part Numbers

• EAN: 0766623353342
• UPC: 766623353342



• Physical Specifications

• Weight: 0.02 kg
• Dimensions: 1 m
• Carton Quantity: 360
• Carton Weight: 11.40 kg

• Datasheet
• Datasheet     » Download


• Technical Drawing     » Download


• Declaration of Conformity     » Download
