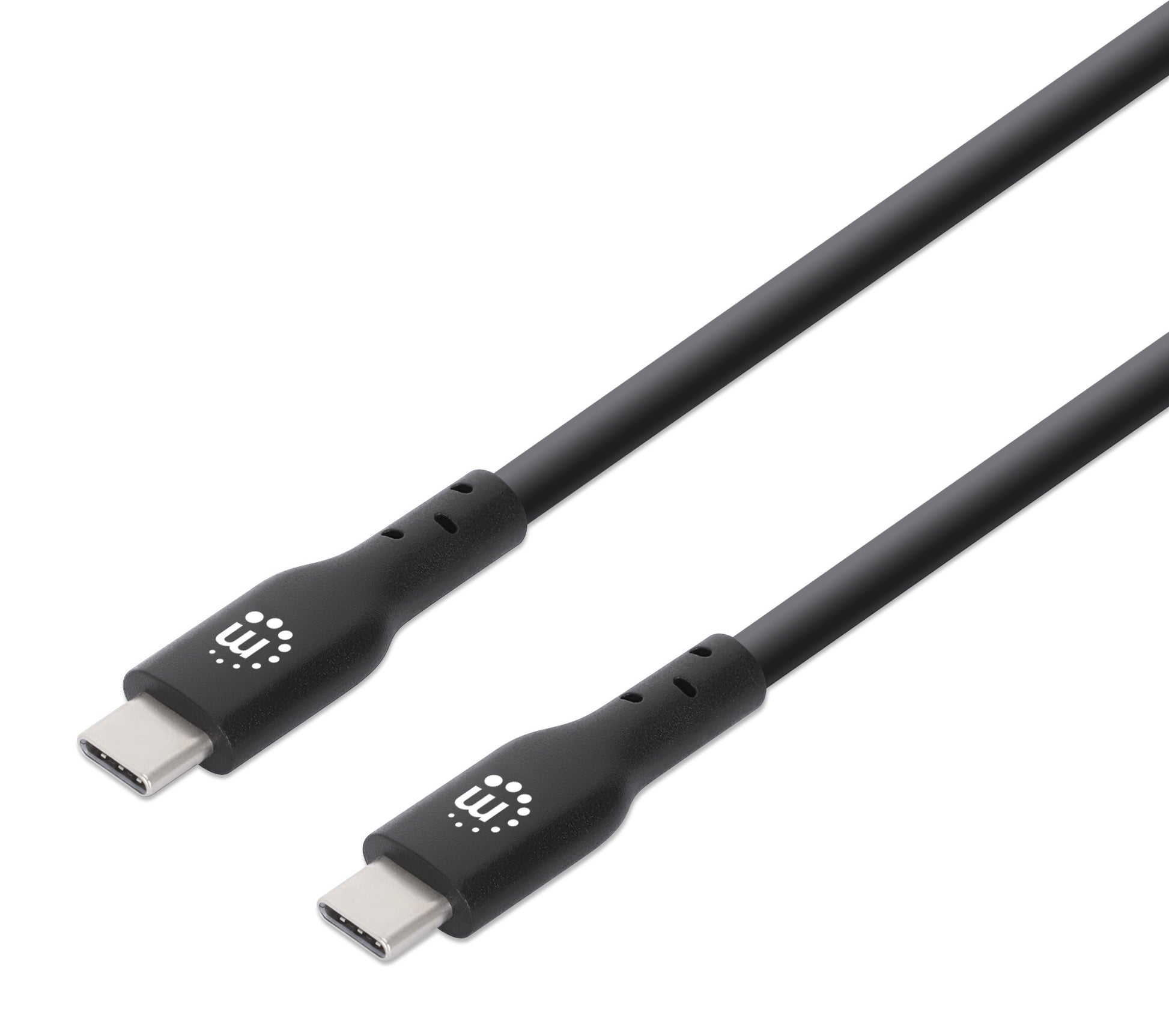

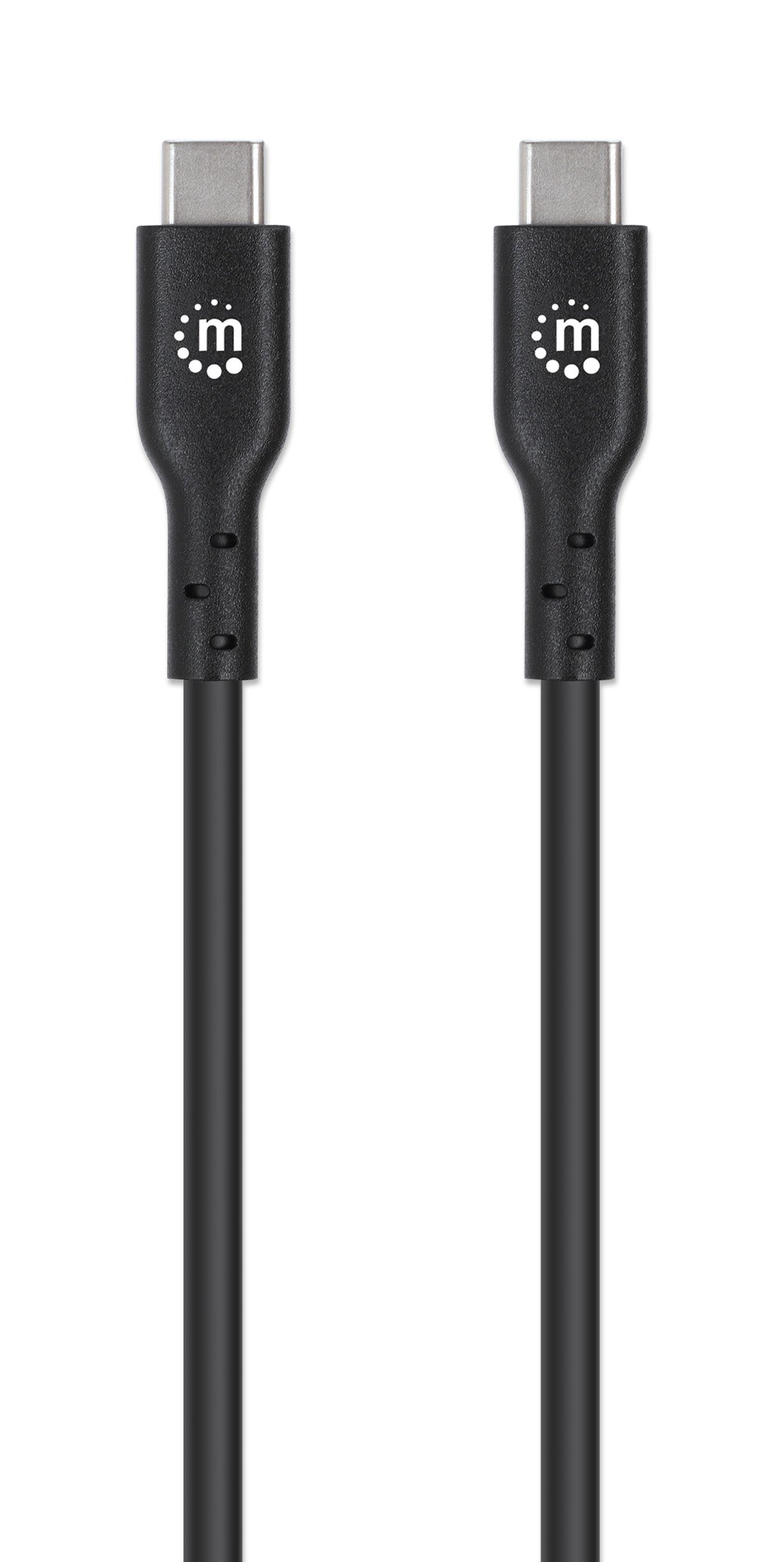

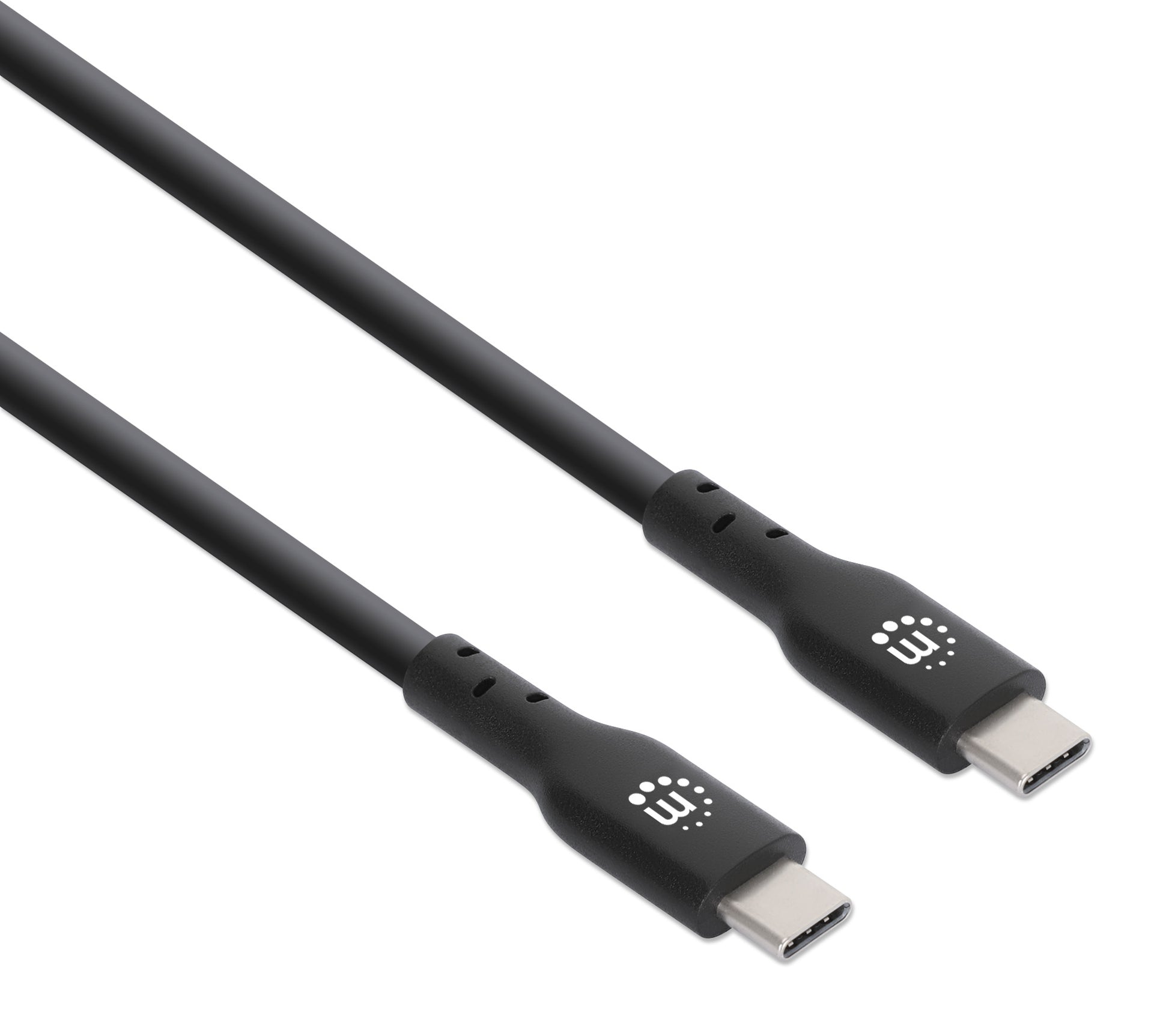

USB 2.0 Type-C Device Cable

Manhattan Hi-Speed USB-C Cables easily connect USB peripherals and accessories to USB-C peripherals and accessories. They support data transfer rates up to 480 Mbps on Windows and Mac systems for fast, reliable transmissions. Nickel-plated contacts, shielding and fully molded boots with strain relief provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB-C male to USB-C male
• Connects a USB-C device to a USB-C device
• Supports speeds of up to 480 Mbps and fast charging of up to 3 A (60 W)
• Charges a USB-C powered device such as a notebook, Macbook Pro® or tablet from a USB-C PD wall charger or powerbank
• Hi-Speed USB for ultra-fast data transfer rates and zero data degradation
• Lifetime Warranty

Standards and Certifications
• USB 2.0
Connectors

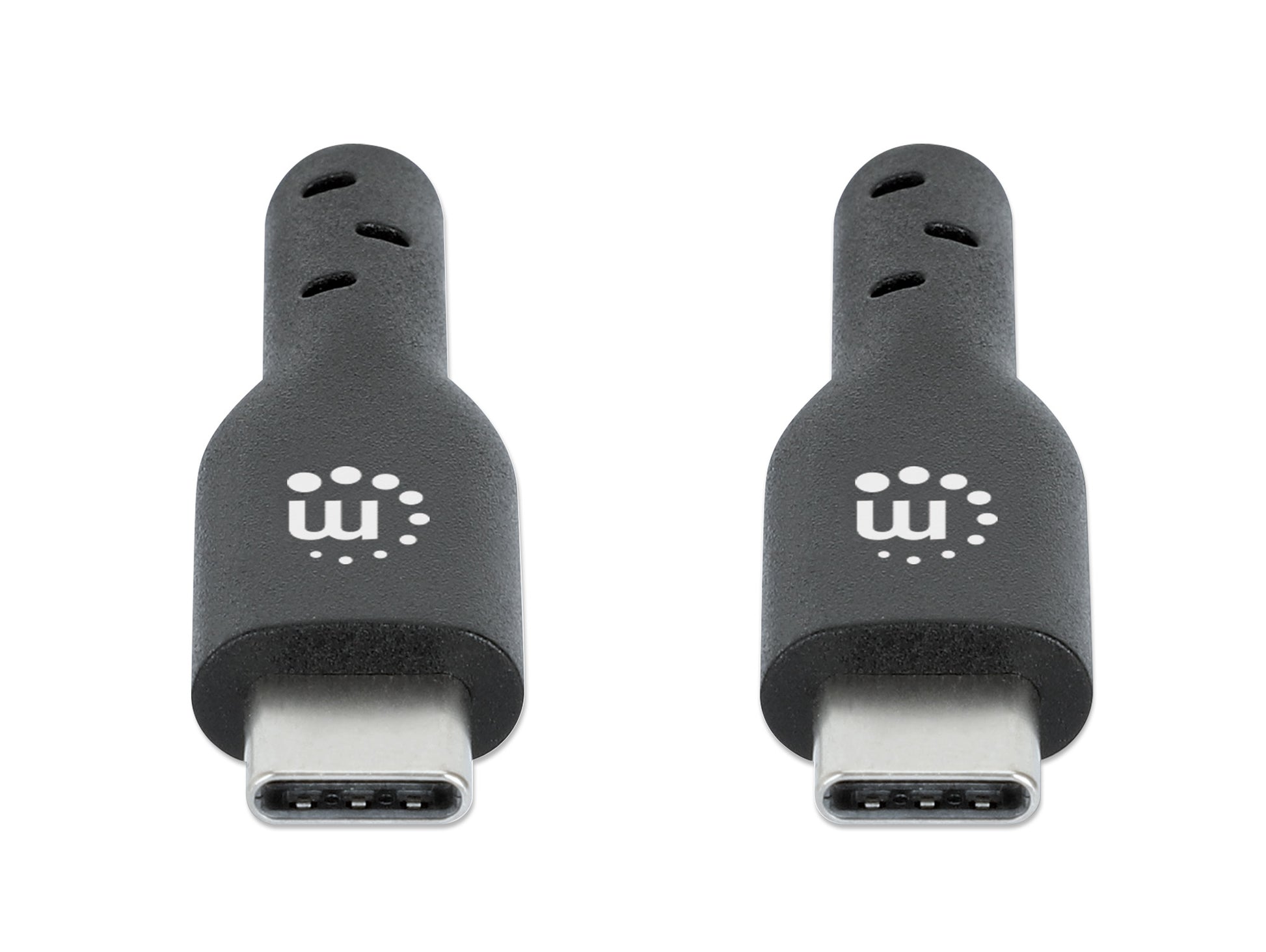

• Two USB-C male
• Nickel plated
• Molded PVC boot
Cable
• 32 + 30 + 24 AWG conductors
• Shielded
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 10 MΩ
• Contact resistance: 2 Ω
• Thermal plastic casing
• Outer diameter (OD): 3.8 mm (0.15 in.)
Package Contents
• Hi-Speed USB-C Cable

• Other Part Numbers

• Amazon ASIN: B07822VT8G
• EAN: 0766623354868
• UPC: 766623354868



• Physical Specifications

• Weight: 0.02 kg
• Dimensions: 500 (L) x 12.2 (W) x 6.7 (H) [mm]
• Carton Quantity: 350
• Carton Weight: 7.20 kg

• Datasheet
• Datasheet     » Download
