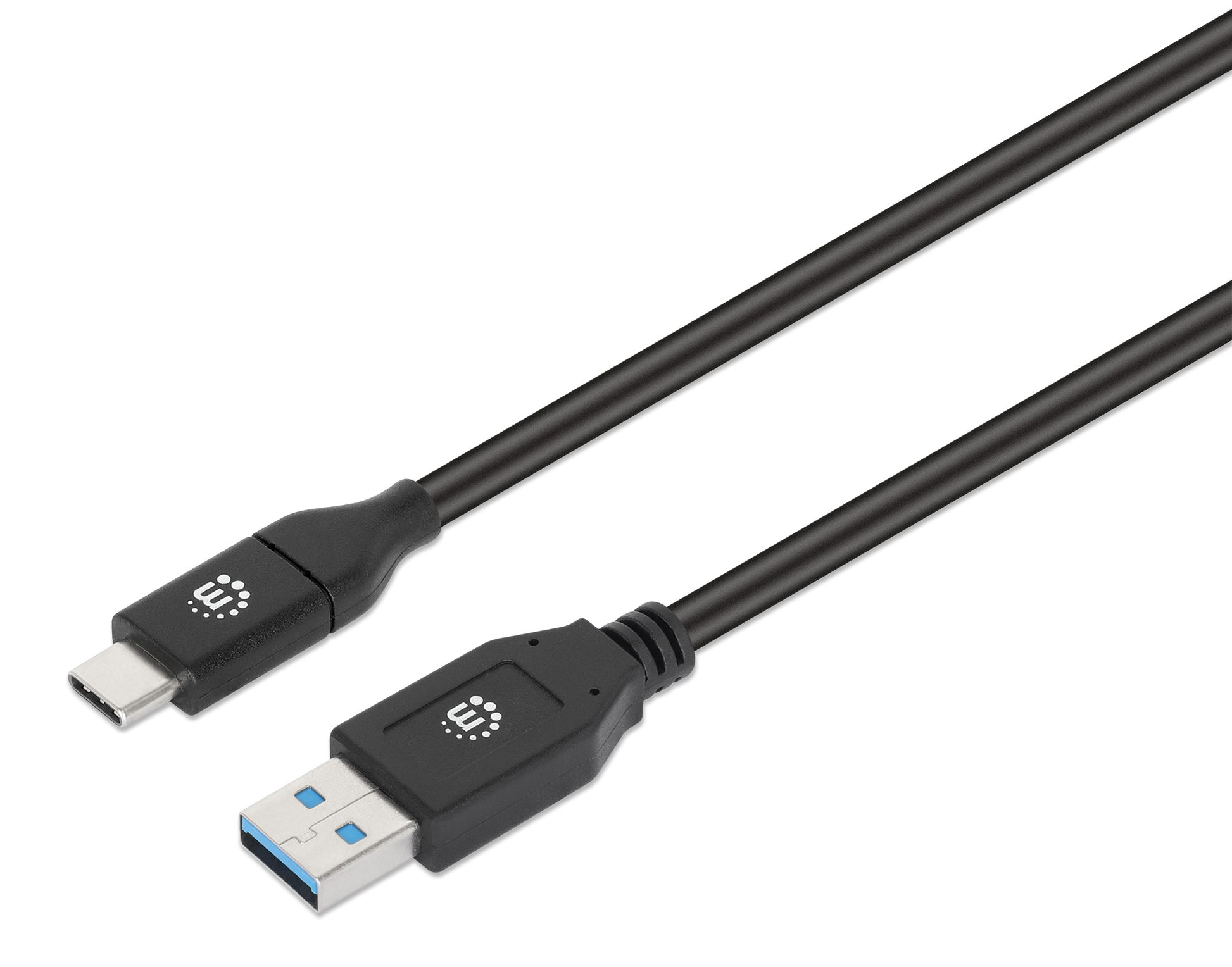

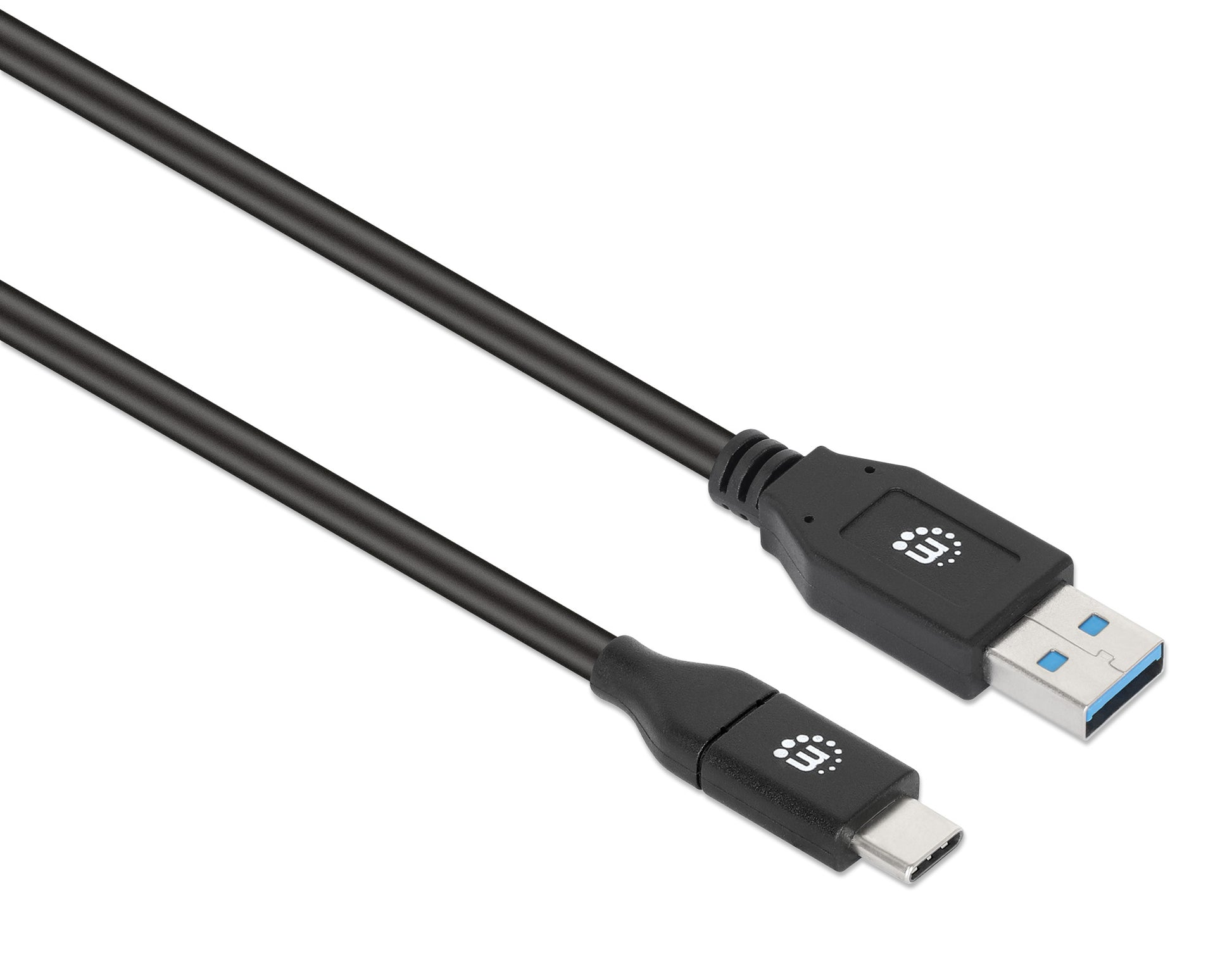

USB 3.0 Type-A to Type-C Cable, 2 m

Manhattan SuperSpeed USB Type-C Cables easily connect USB Type-A peripherals and accessories to Type-C device ports. Ideal for use with any USB Type-A plug-and-play device, these cables support data transfer rates of up to 5 Gbps on Windows and Mac systems for fast, reliable transmissions and current of up to 3 amps. Nickel-plated contacts, shielding and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB-A male to USB-C male

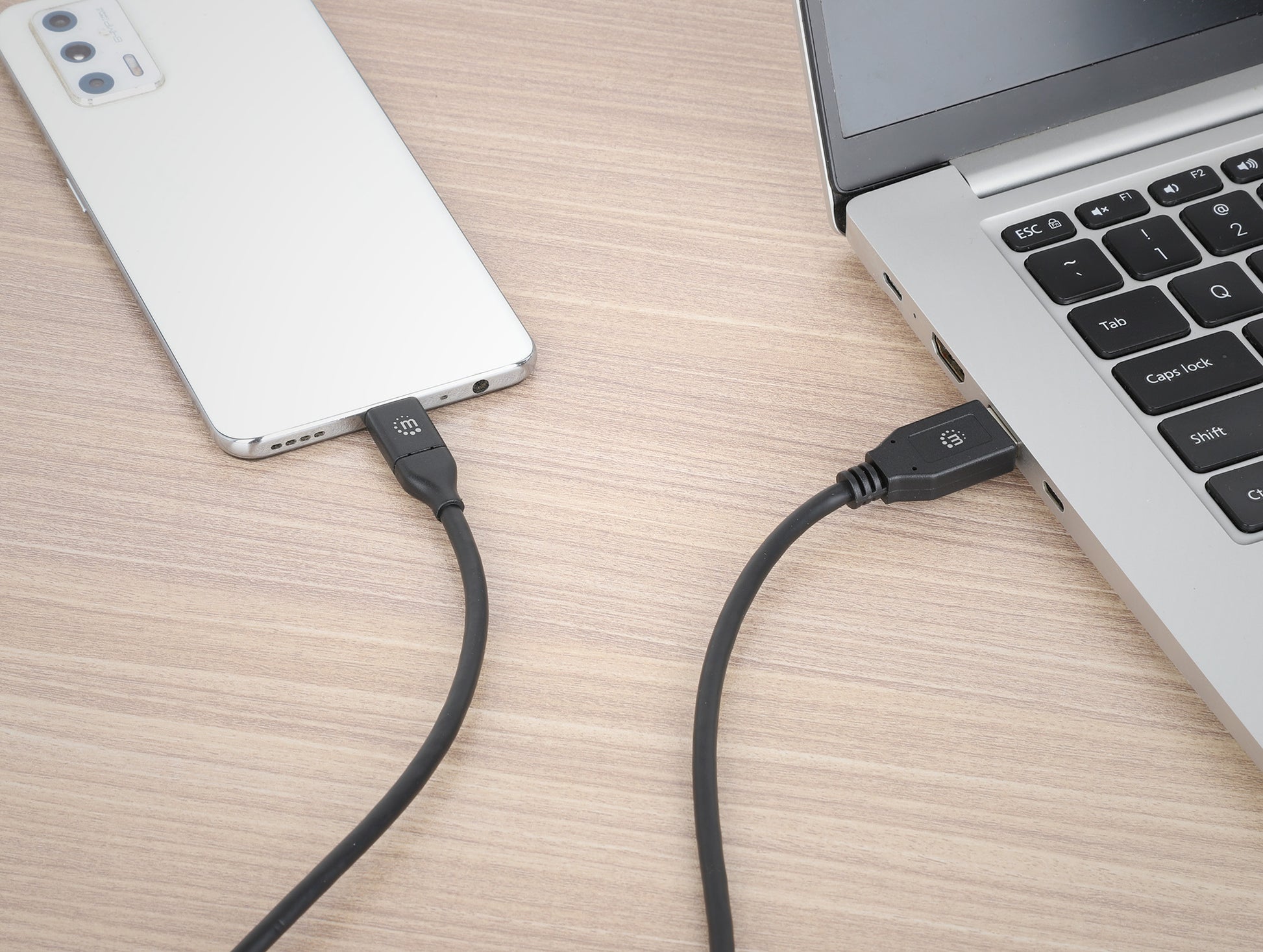

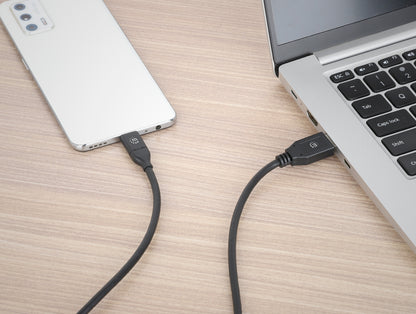

• Connects PCs, laptops, or other host devices to USB-C peripherals or charges USB-C devices from a USB-A port
• USB 3.0 (aka USB 3.2 Gen 1) compliant with SuperSpeed transfer rates up to 5 Gbps and charging up to 3 A
• Lifetime warranty

Standards and Certifications
• CE
• RoHS
• REACH
• UKCA
• USB 3.2 Gen 1 (USB 3.0)
• UL 2725

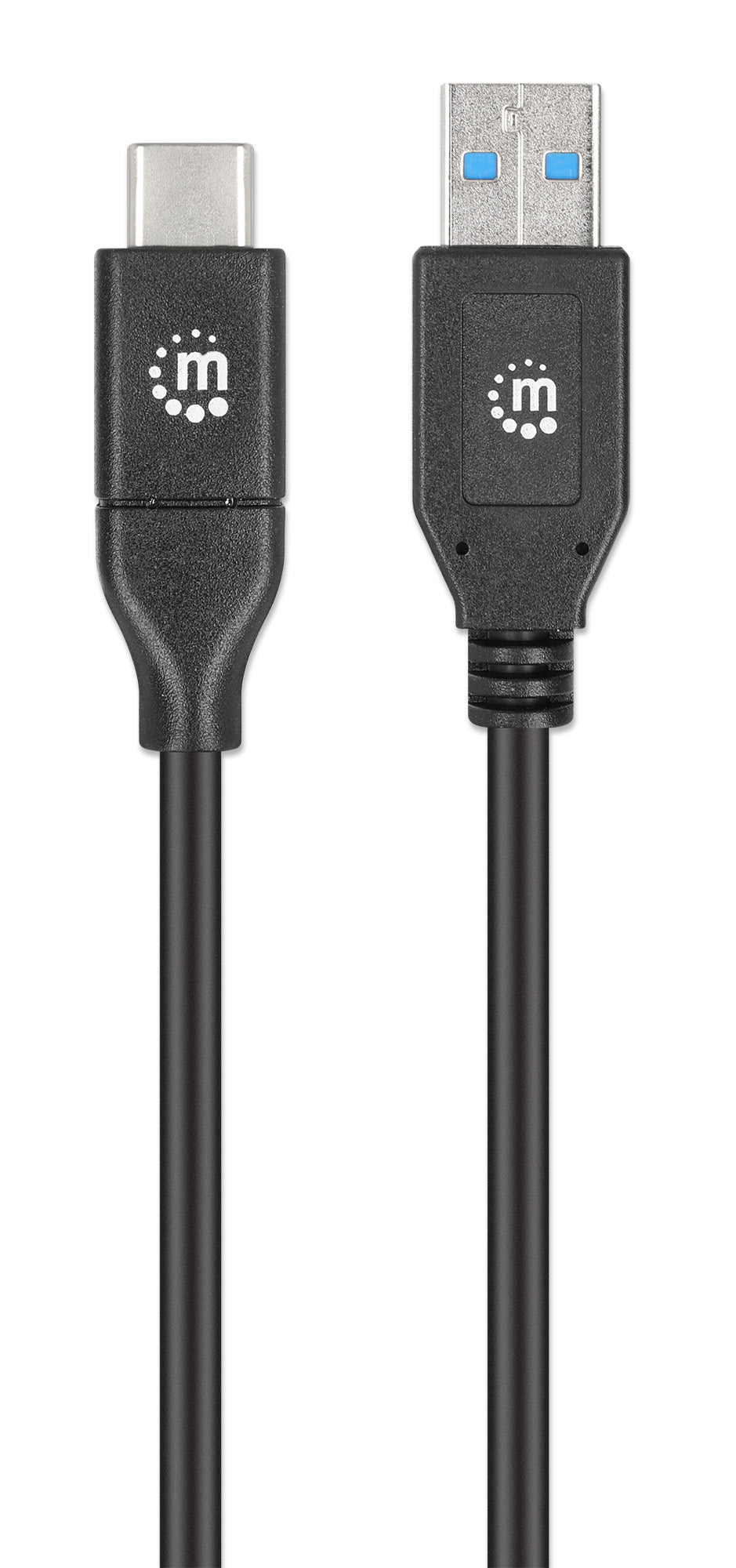

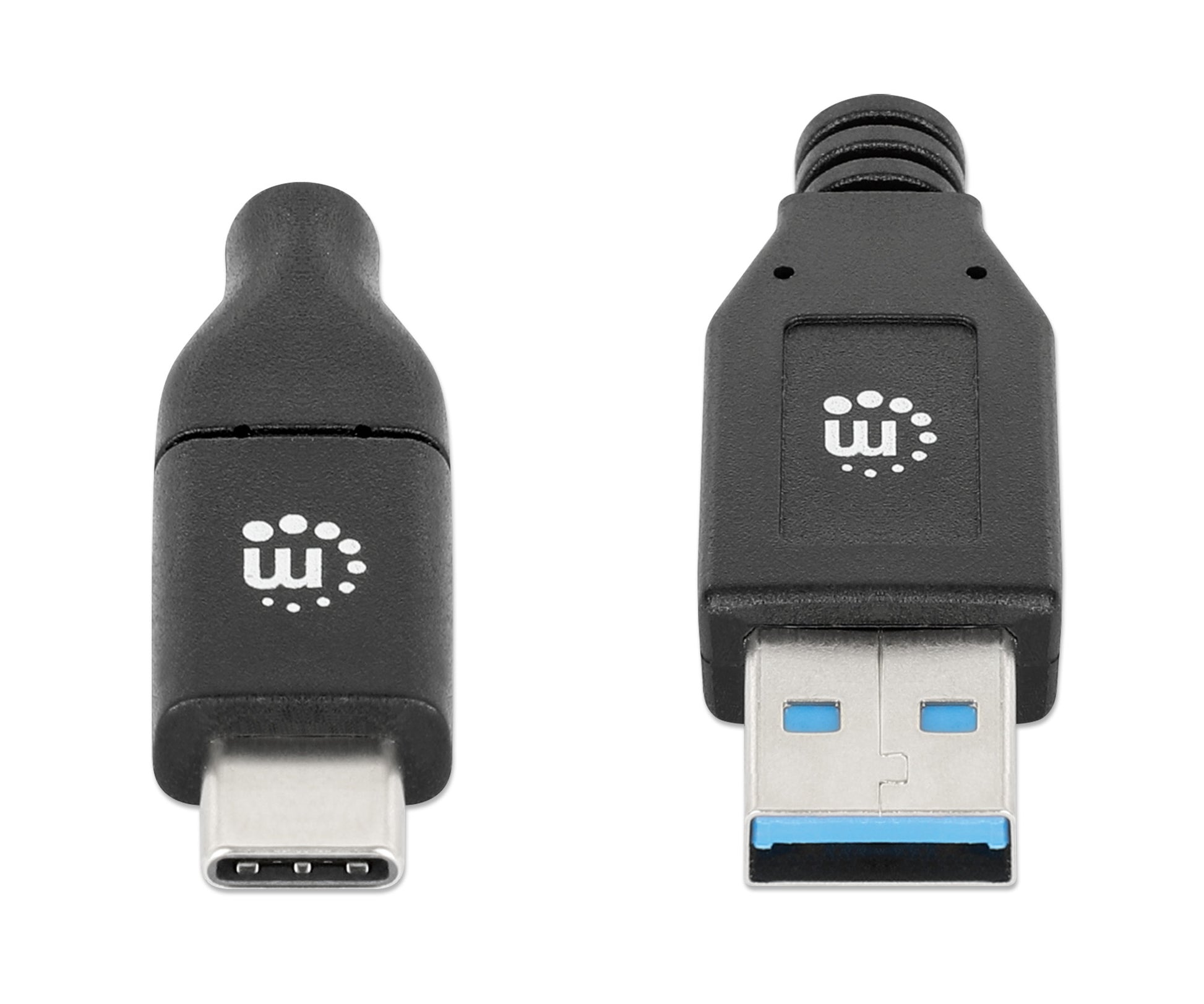

Connectors
• USB-C male
• USB-A male
• Nickel plated
• Molded PVC boot
Cable
• 30 AWG conductors
• Shielded
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 10 MΩ min.
• Contact resistance: 2 Ω max.
• Thermal plastic casing
• Outer diameter (OD): 4.5 mm (0.18 in.)
• Length: 2 m
• Net weight: 78 g
• Gross weight: 102 g
Package Contents
• SuperSpeed USB-A to USB-C Cable

• Other Part Numbers

• Amazon ASIN: B076HG53H9
• EAN: 0766623394871
• UPC: 766623394871



• Physical Specifications

• Weight: 0.08 kg
• Dimensions: 2 (L) x 0.015 (W) x 0.014 (H) [m]
• Carton Quantity: 80
• Carton Weight: 8.90 kg

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download

• Manual
• Quick Installation Guide     » Download
