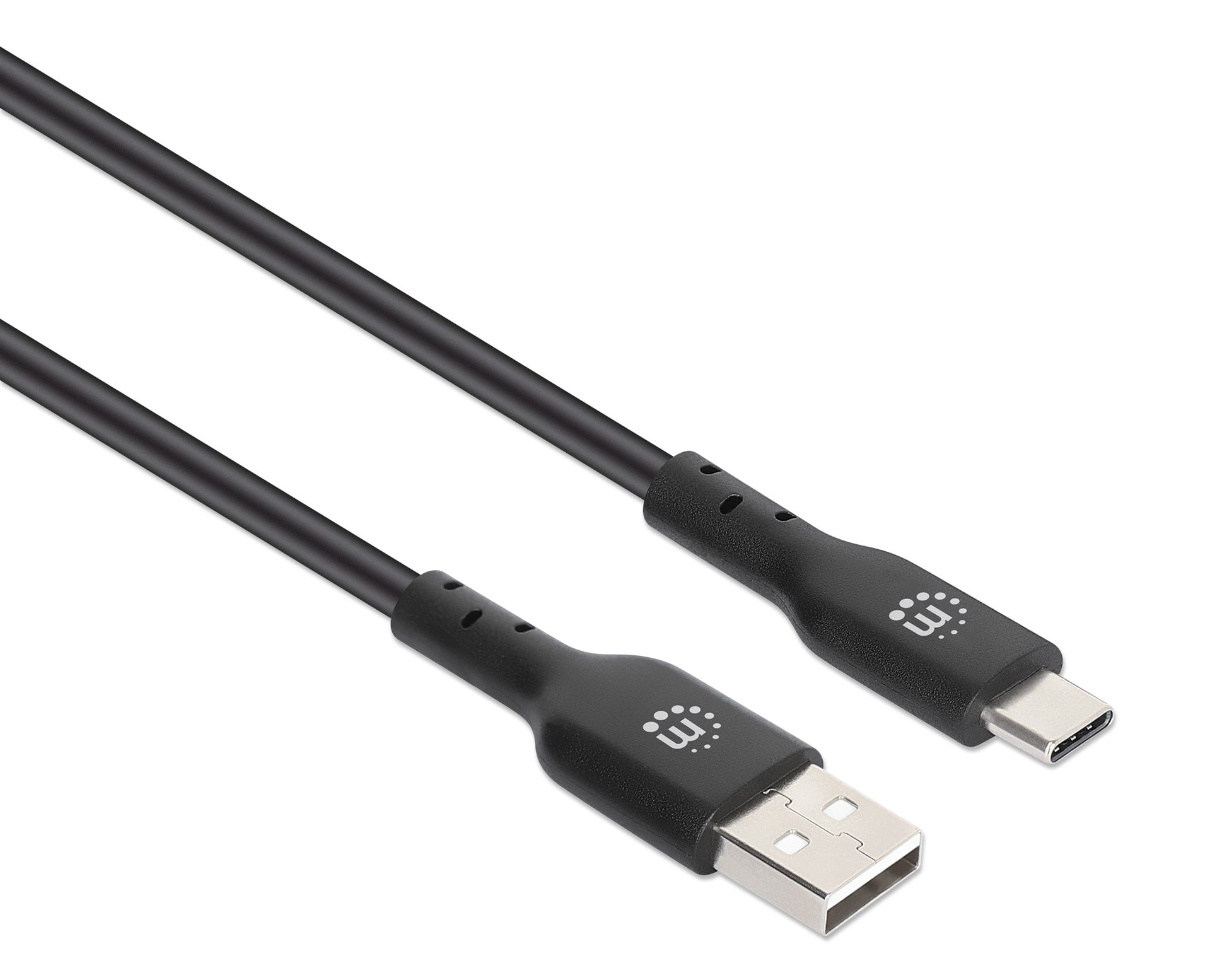

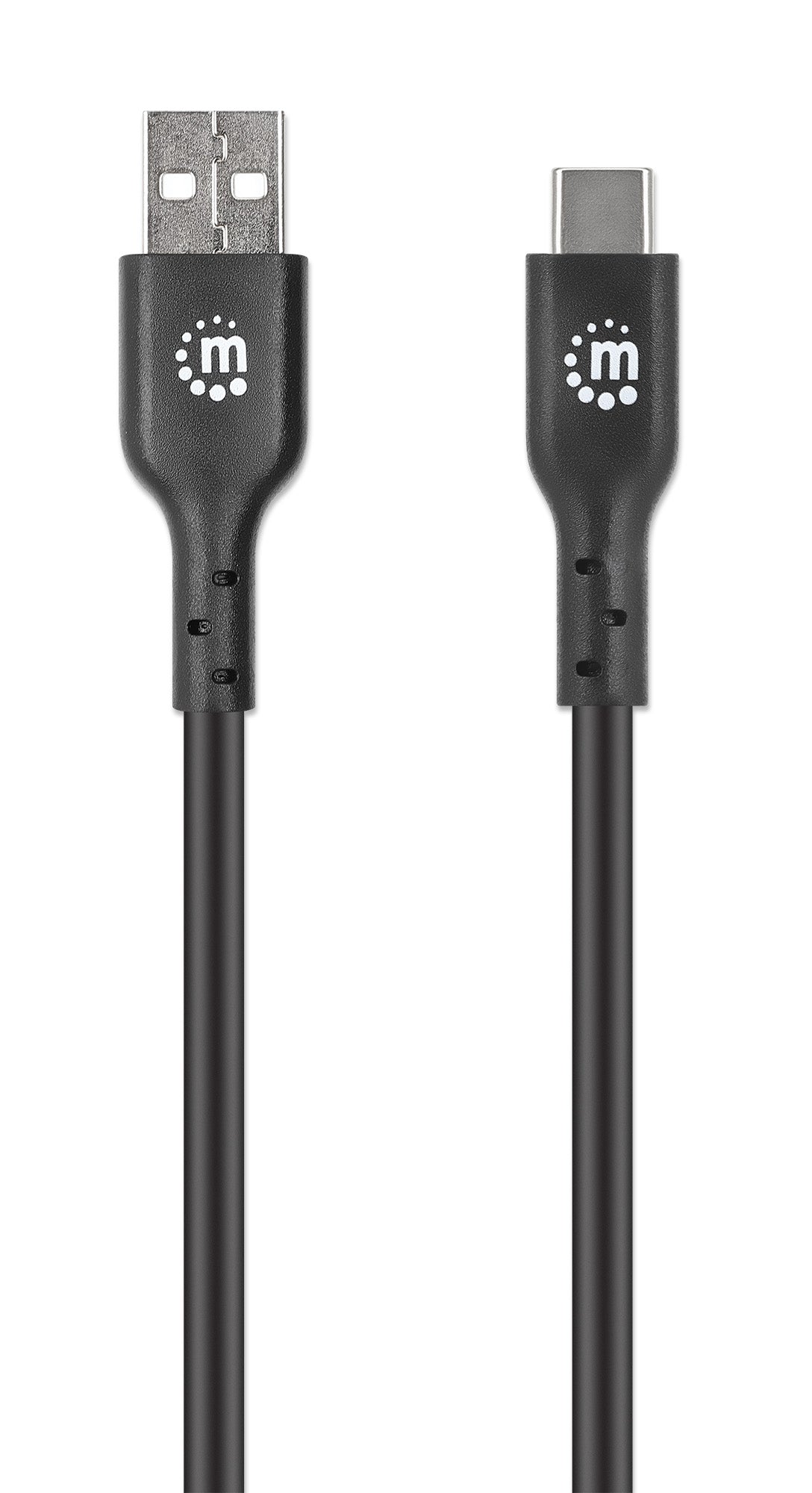

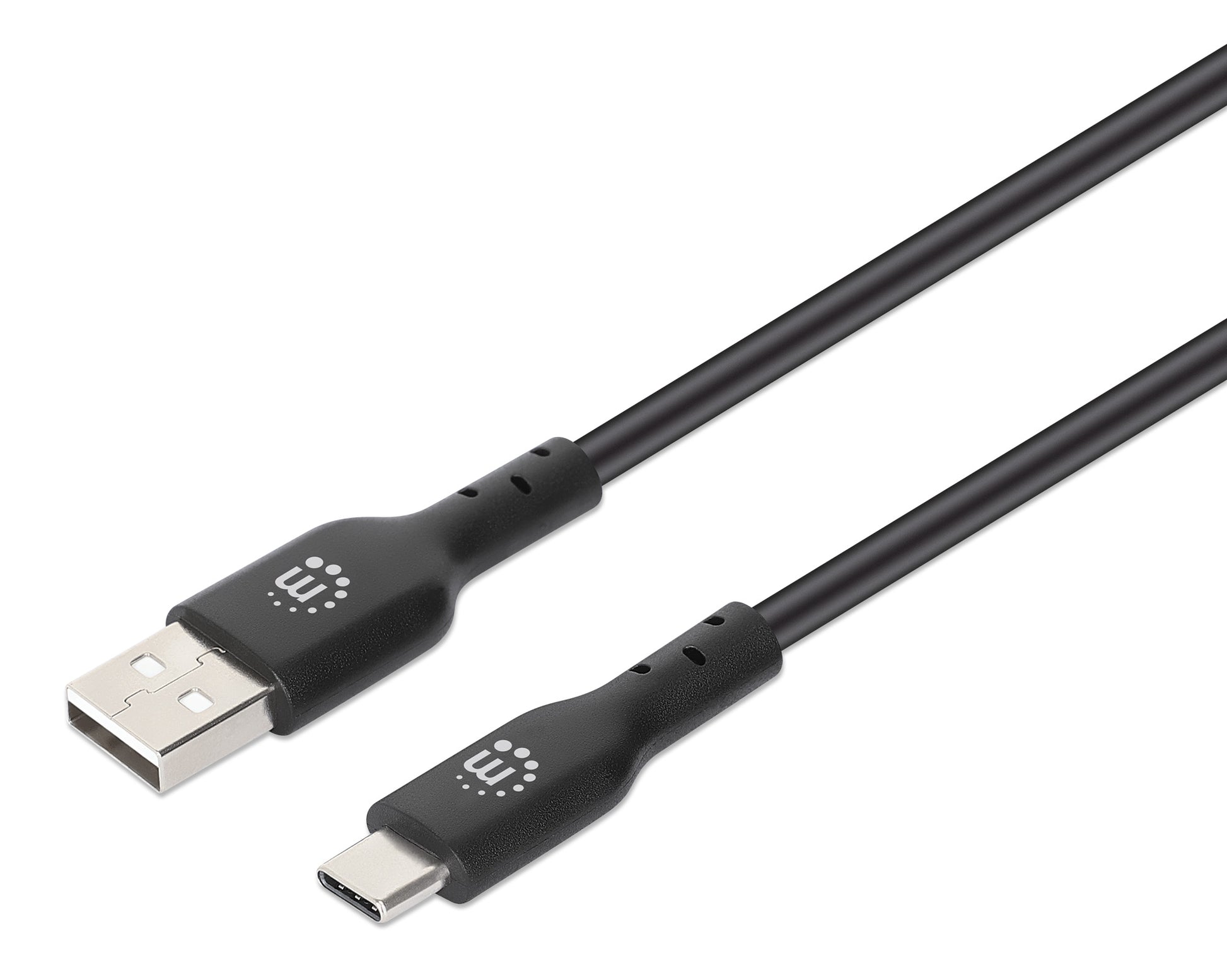

USB 3.0 Type-A to Type-C Device Cable

Manhattan SuperSpeed USB Type-C Cables easily connect USB Type-A peripherals and accessories to Type-C device ports. Ideal for use with any USB Type-A plug-and-play device, these cables support data transfer rates of up to 5 Gbps on Windows and Mac systems for fast, reliable transmissions and current of up to 3 amps. Nickel-plated contacts, shielding and fully molded boots with strain relief provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB Type-C male to Type-A male
• Connects a USB 3.0 or 2.0 Type-A device to a Type-C port
• Supports speeds of up to 5 Gbps
• Supports current of up to 3.0 A
• SuperSpeed USB for ultra-fast data transfer rates and zero data degradation
• Lifetime Warranty

Standards and Certifications
• UL 2725
• USB 3.2 Gen 1 (USB 3.0)
Connectors

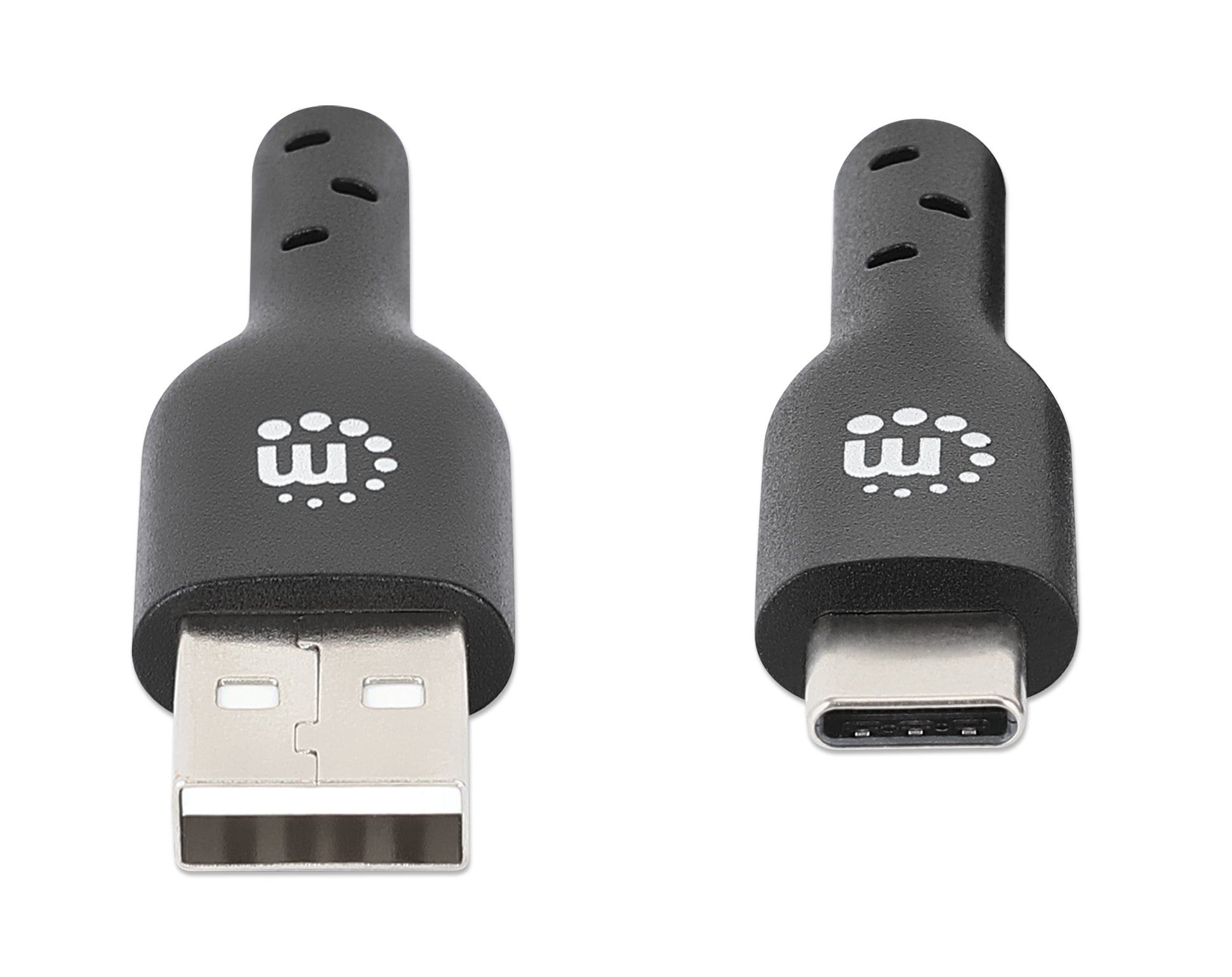

• USB-C male
• USB-A male
• Nickel plated
• Molded PVC boot
Cable
• 28 + 23 AWG conductors
• Shielded
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 10 MΩ min.
• Contact resistance: 2 Ω max.
• Thermal plastic casing
• Outer diameter (OD): 5.2 mm (0.2 in.)

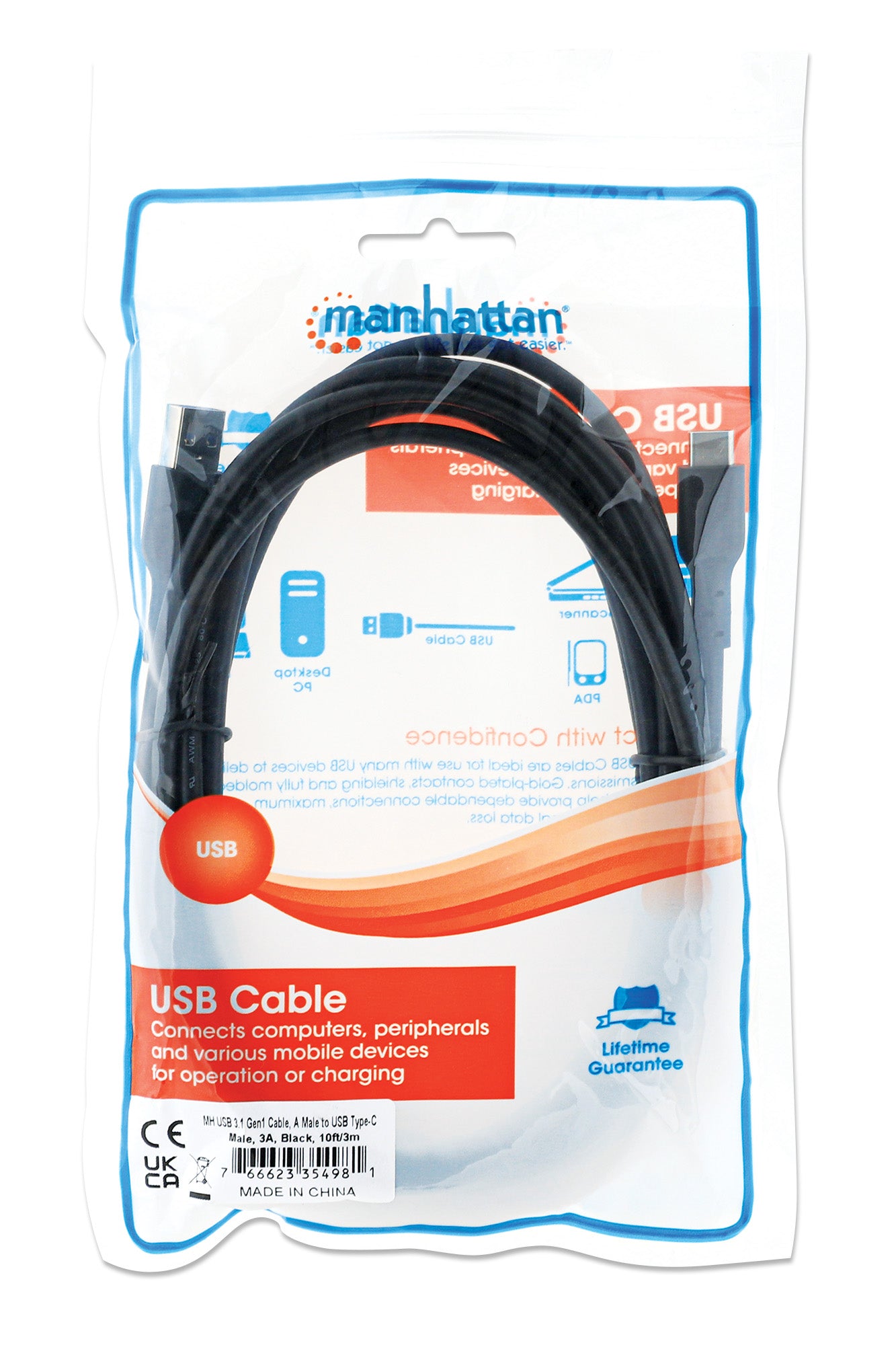

Package Contents
• USB 3.0 Type-A to Type-C Device Cable

• Other Part Numbers

• Amazon ASIN: B076HCL5PV
• EAN: 0766623354981
• UPC: 766623354981



• Physical Specifications

• Weight: 0.11 kg
• Dimensions: 3000 (L) x 16 (W) x 8 (H) [mm]
• Carton Quantity: 60
• Carton Weight: 7.60 kg
