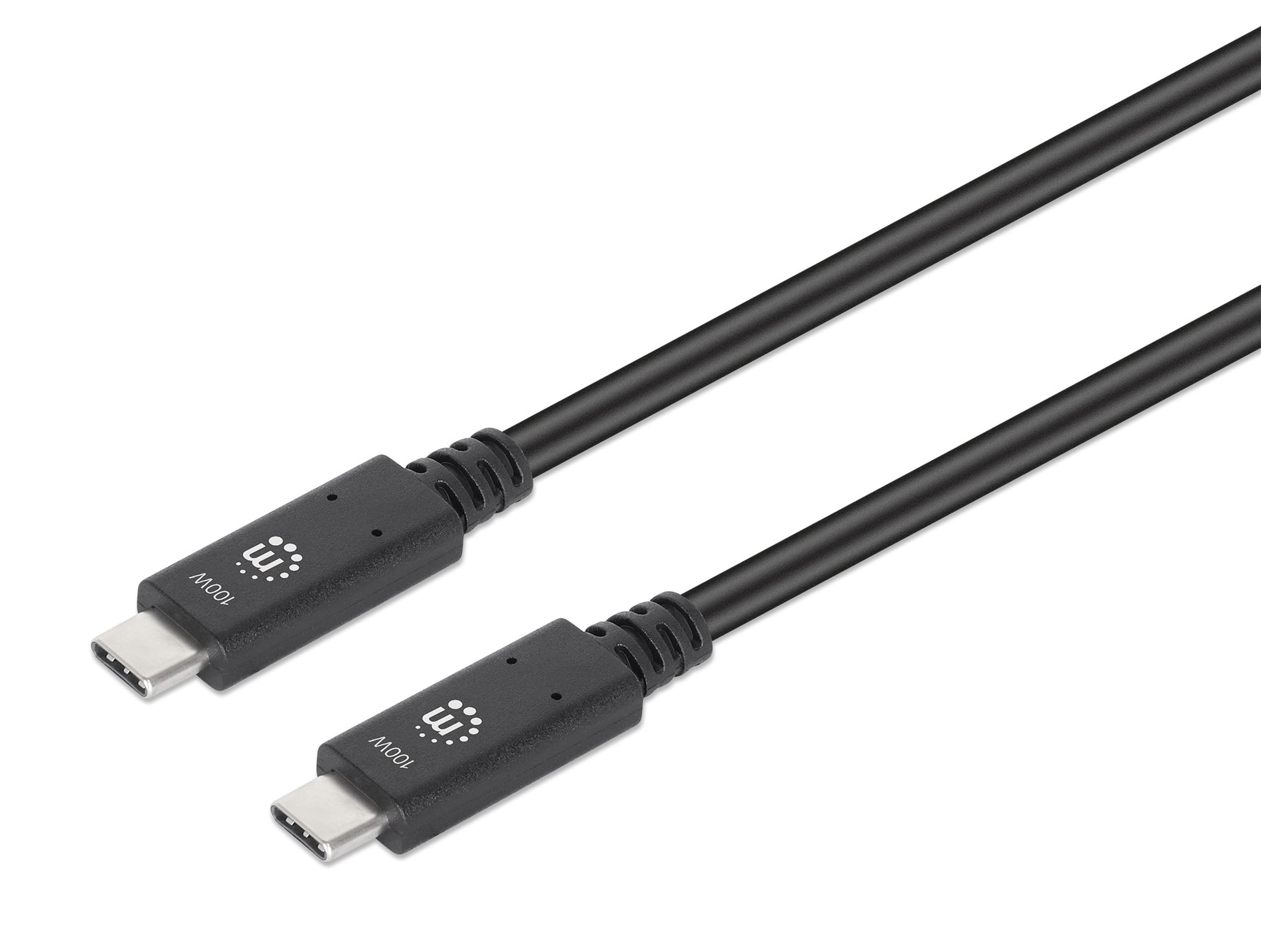

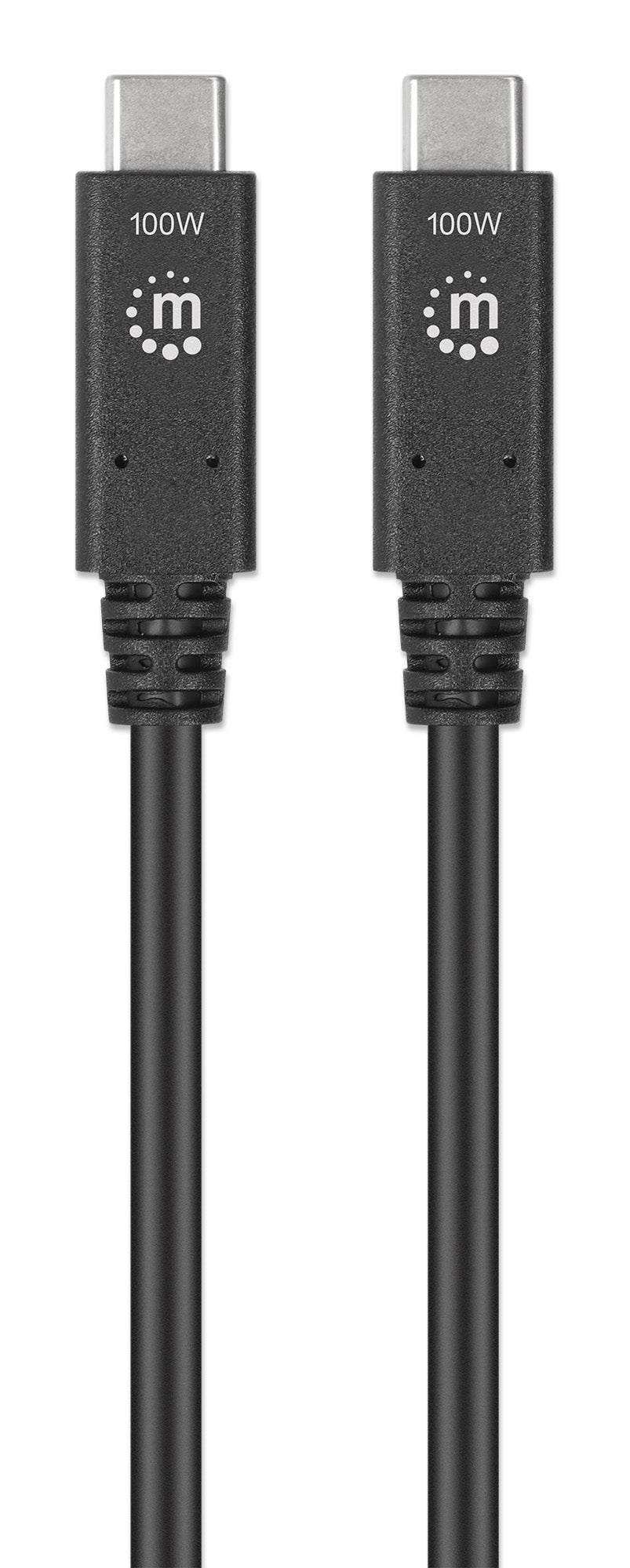

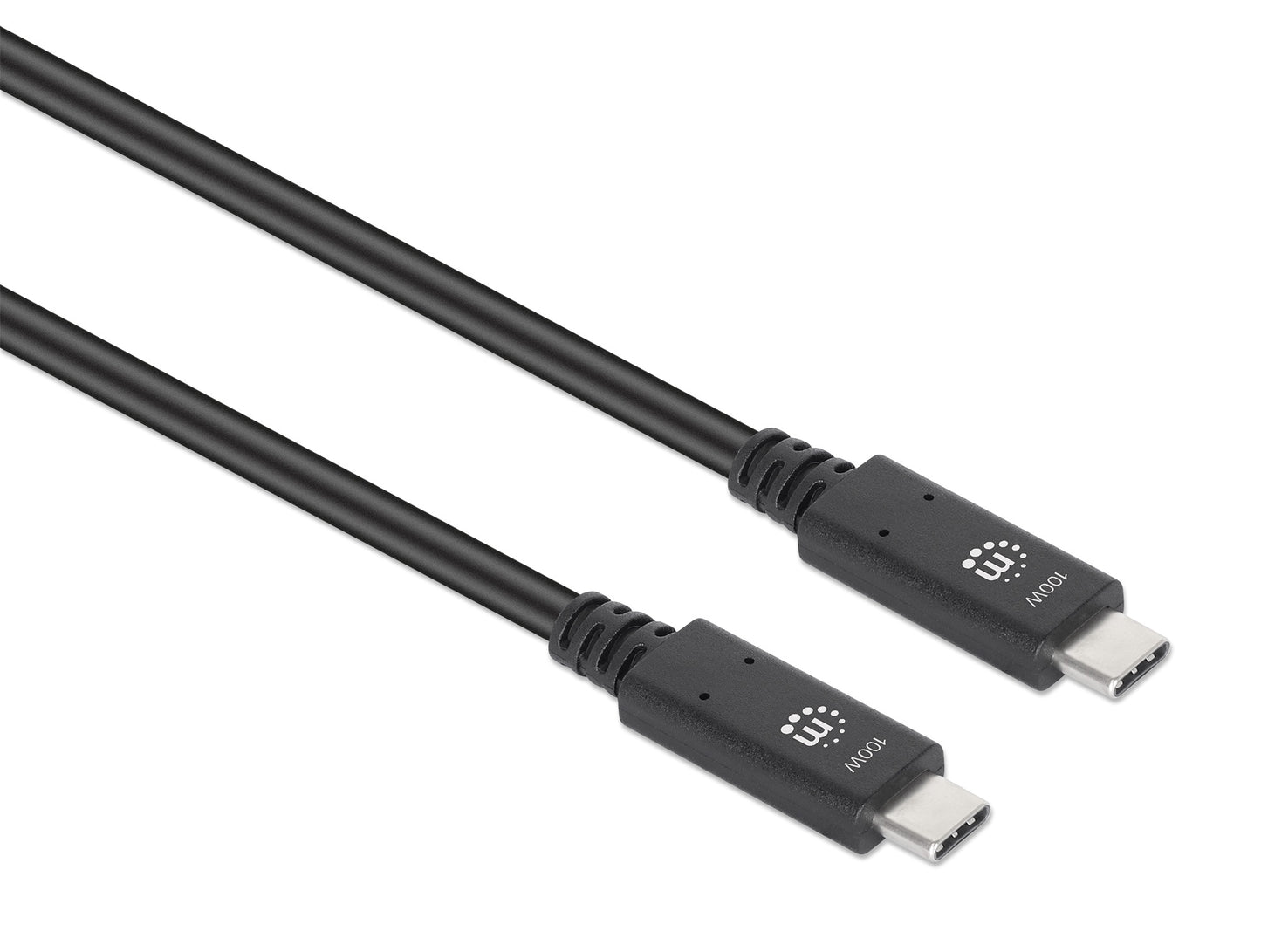

USB 3.2 Gen 2 Type-C Cable, 100 W, 1 m (3 ft.)

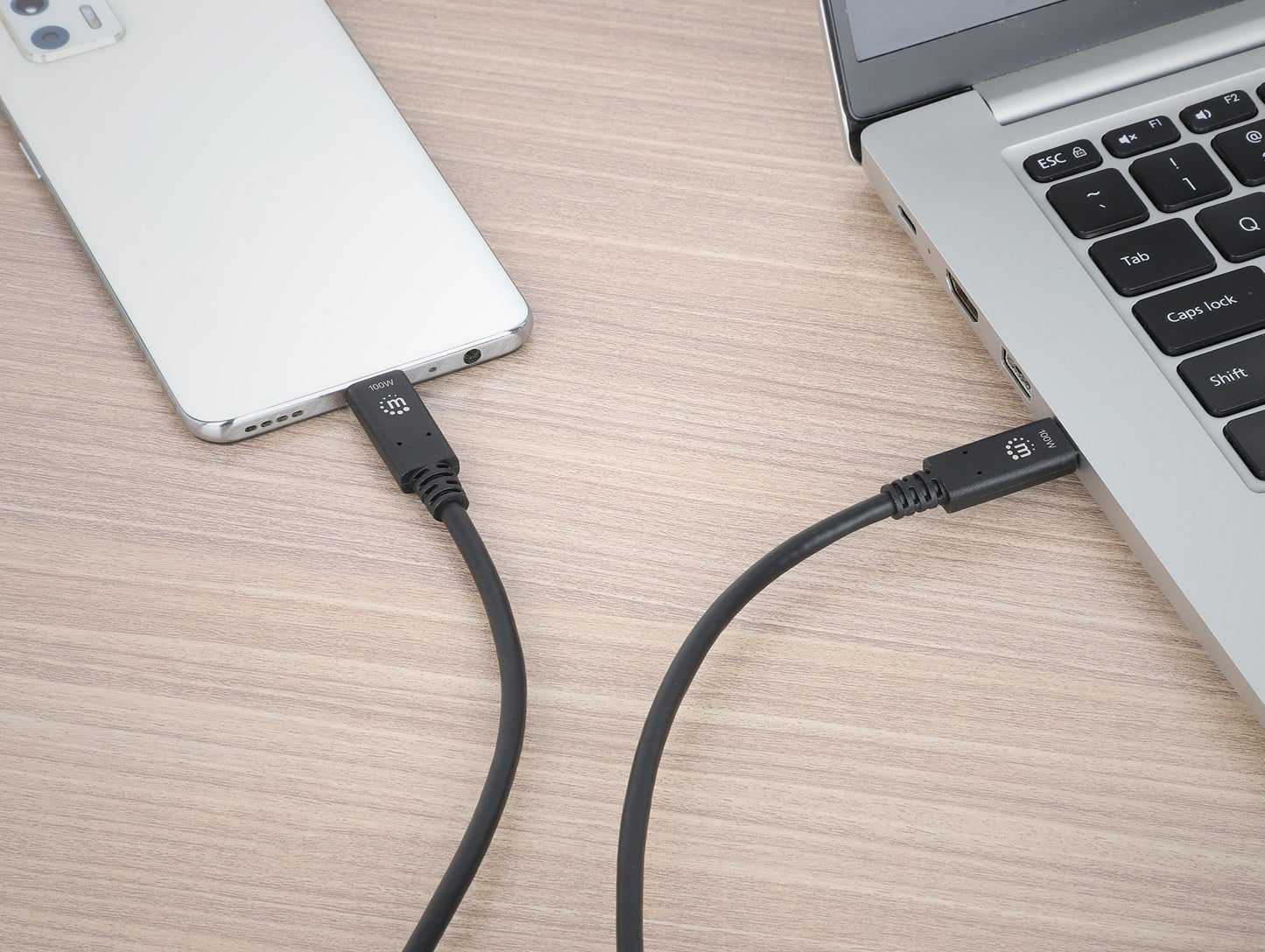

The Manhattan SuperSpeed+ USB-C Device Cable easily connects a USB Type-C peripheral or accessory to a Type-C device port. Ideal for use with any USB Type-C plug-and-play device, this cable supports fast, reliable data transfer rates up to 10 Gbps on Windows and Mac as well as current up to 5 amps (100 W). Nickel-plated contacts, shielding and fully molded boots with strain relief provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB-C male to USB-C male
• Connects a USB 3.2 Gen 2 Type-C device to a Gen 2 Type-C port
• Supports speeds of up to 10 Gbps
• Supports current of up to 5 A (100 W)
• USB-C compliance with DisplayPort 1.2 Alternate Mode (DP Alt Mode) for resolutions up to 4K@60Hz on supported devices and displays
• SuperSpeed+ USB for ultra-fast data transfer rates with zero data degradation
• Lifetime Warranty

Standards and Certifications
• UL 2725
• USB 3.2 Gen 2
Connectors

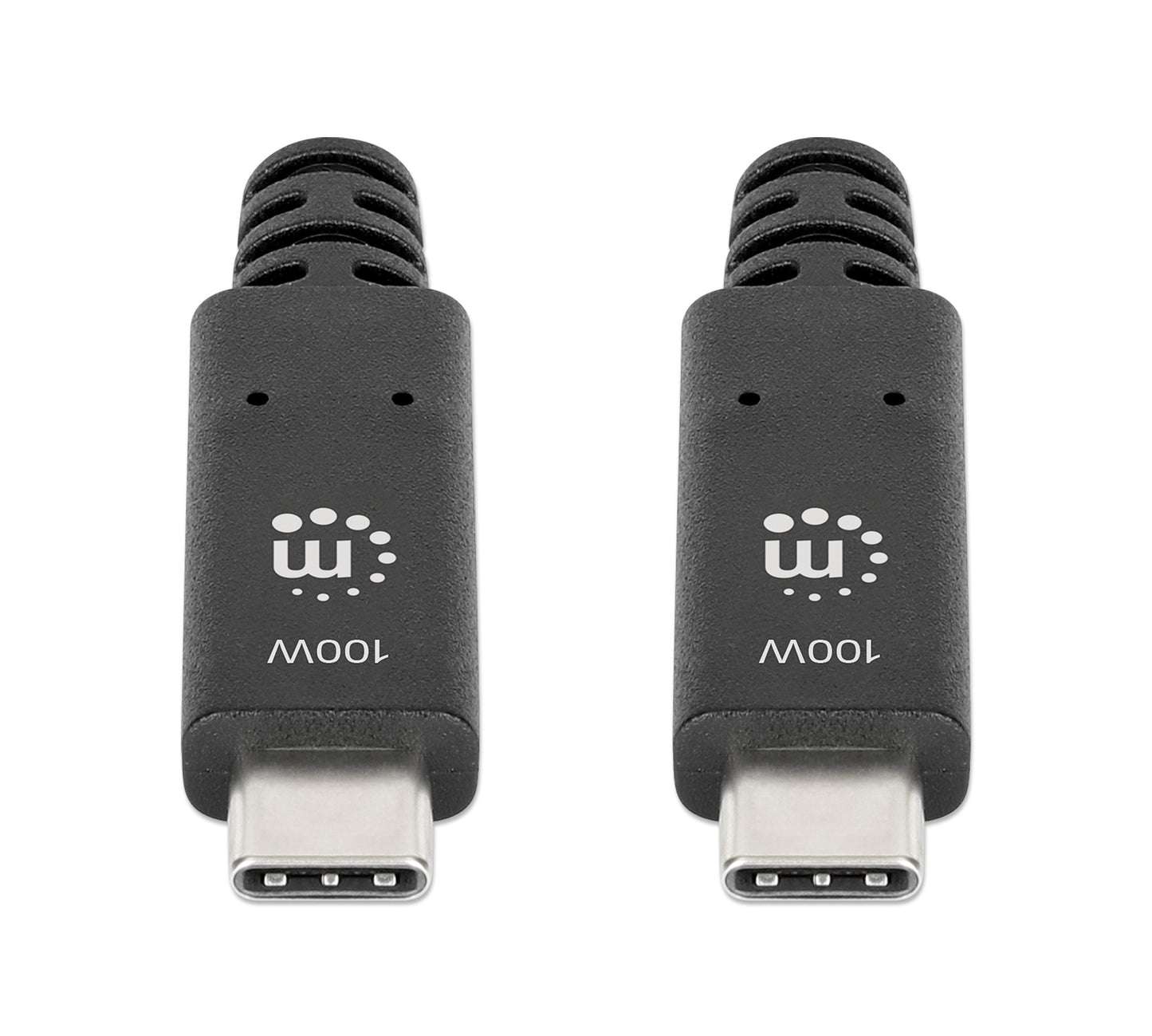

• Two USB-C males
• Nickel plated
• Molded PVC boot
Cable
• Shielded
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 10 MΩ min.
• Contact resistance: 2 Ω max.
• Supported power throughput: 100 W
• Thermal plastic casing
• Outer diameter (OD): 5.8 mm (0.23 in.)
Package Contents
• SuperSpeed+ USB-C Device Cable

• Other Part Numbers

• Amazon ASIN: B079SV386F
• EAN: 0766623355223
• UPC: 766623355223



• Physical Specifications

• Weight: 0.05 kg
• Dimensions: 1 m
• Carton Quantity: 200
• Carton Weight: 10.90 kg

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download
