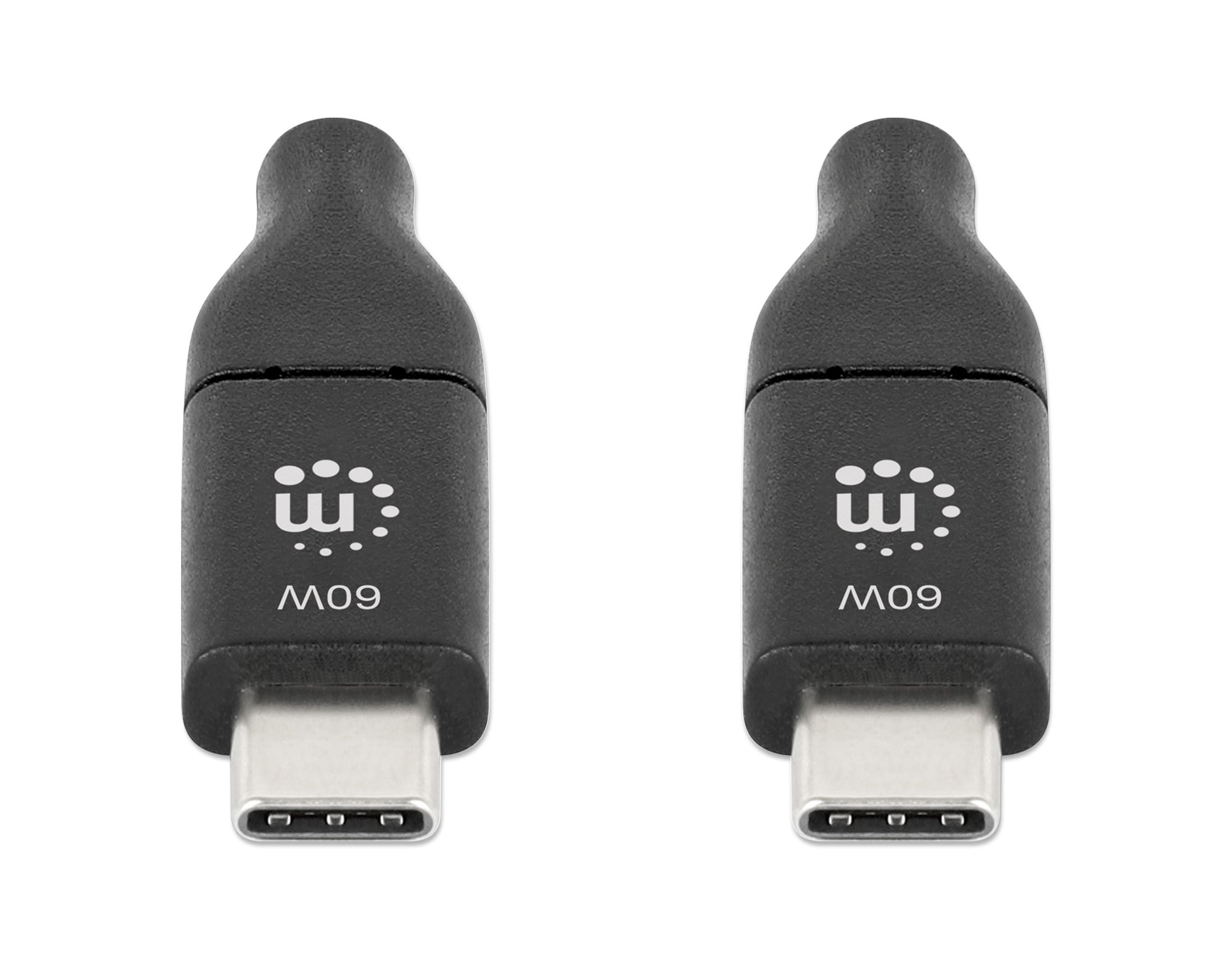

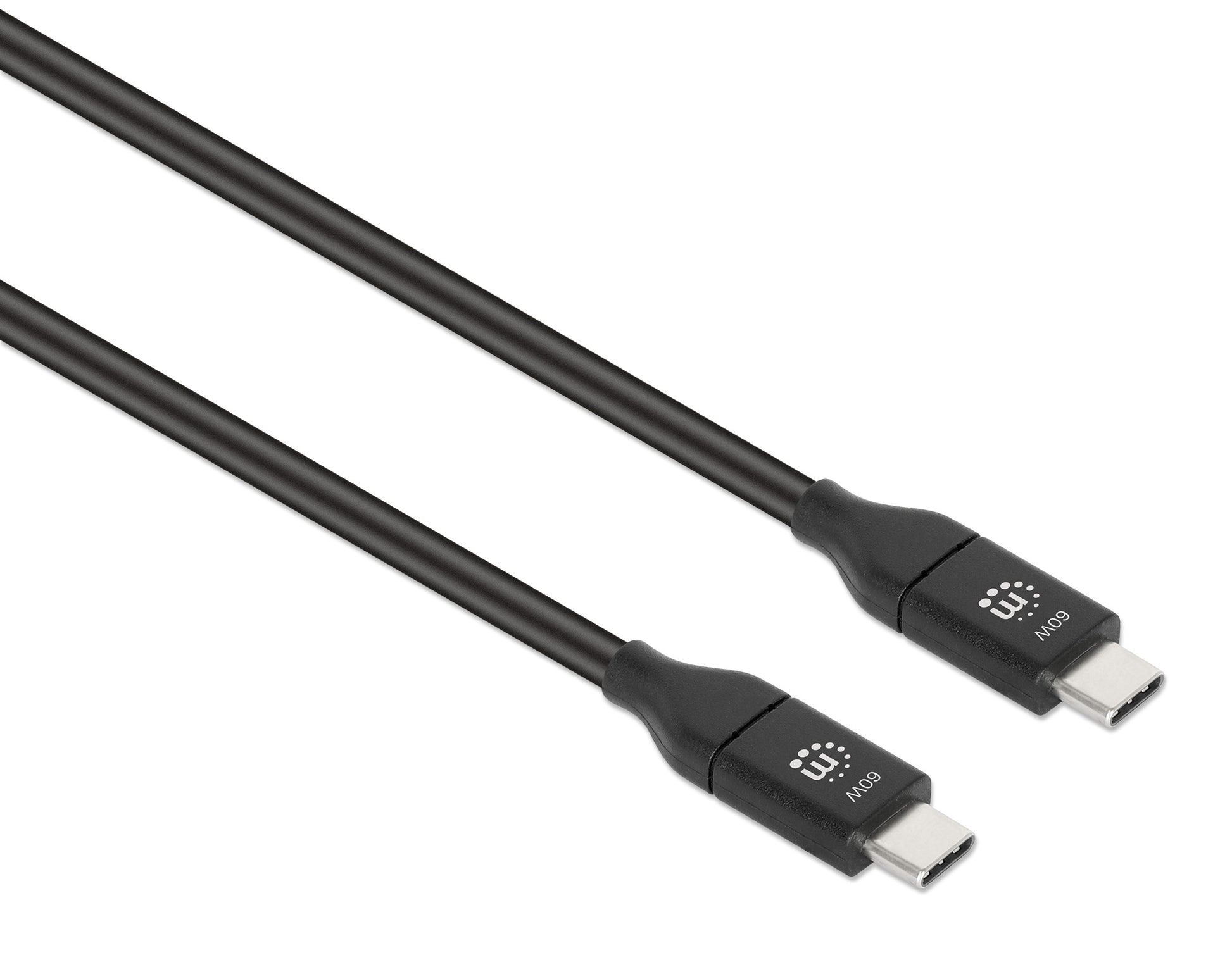

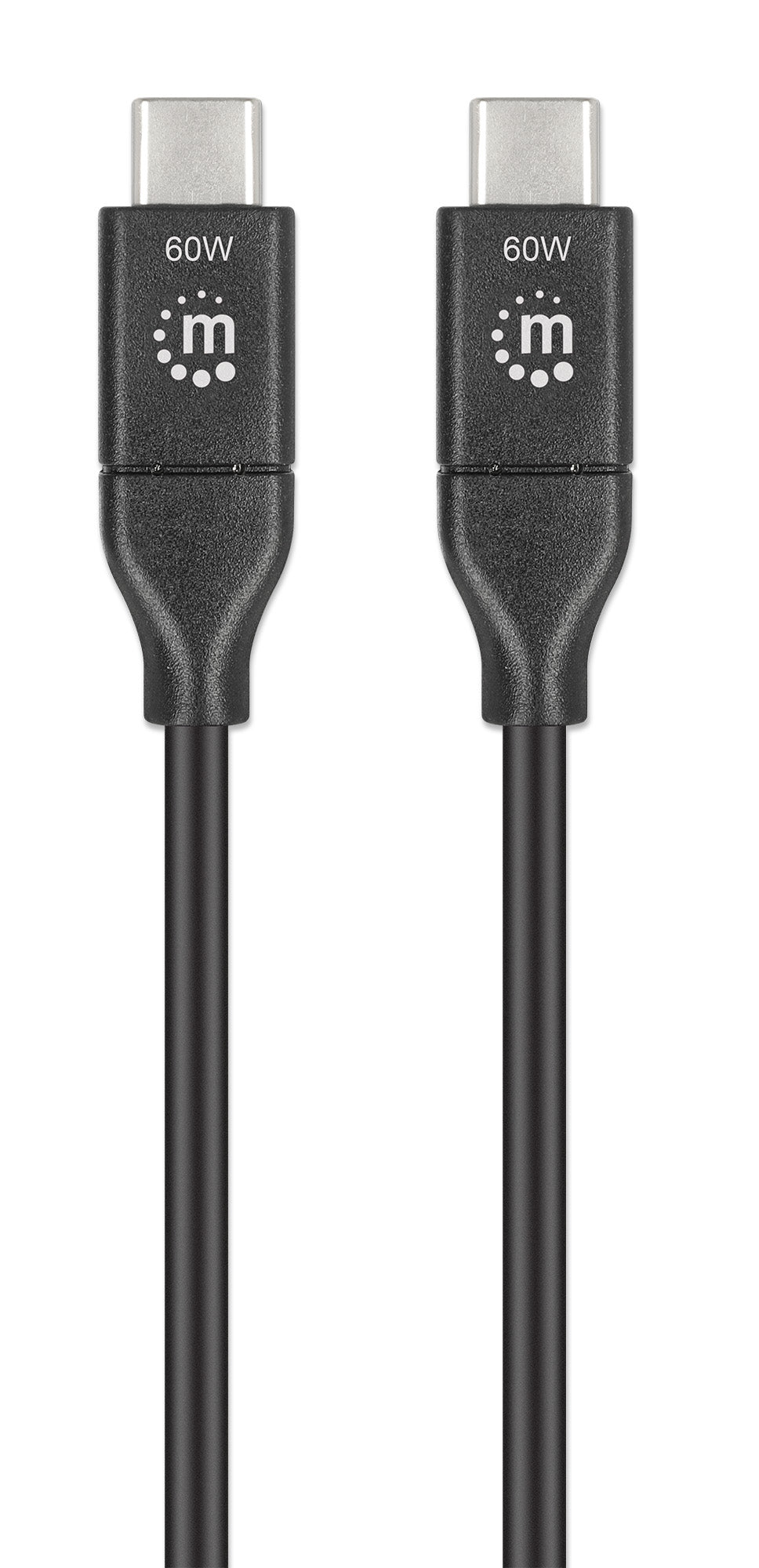

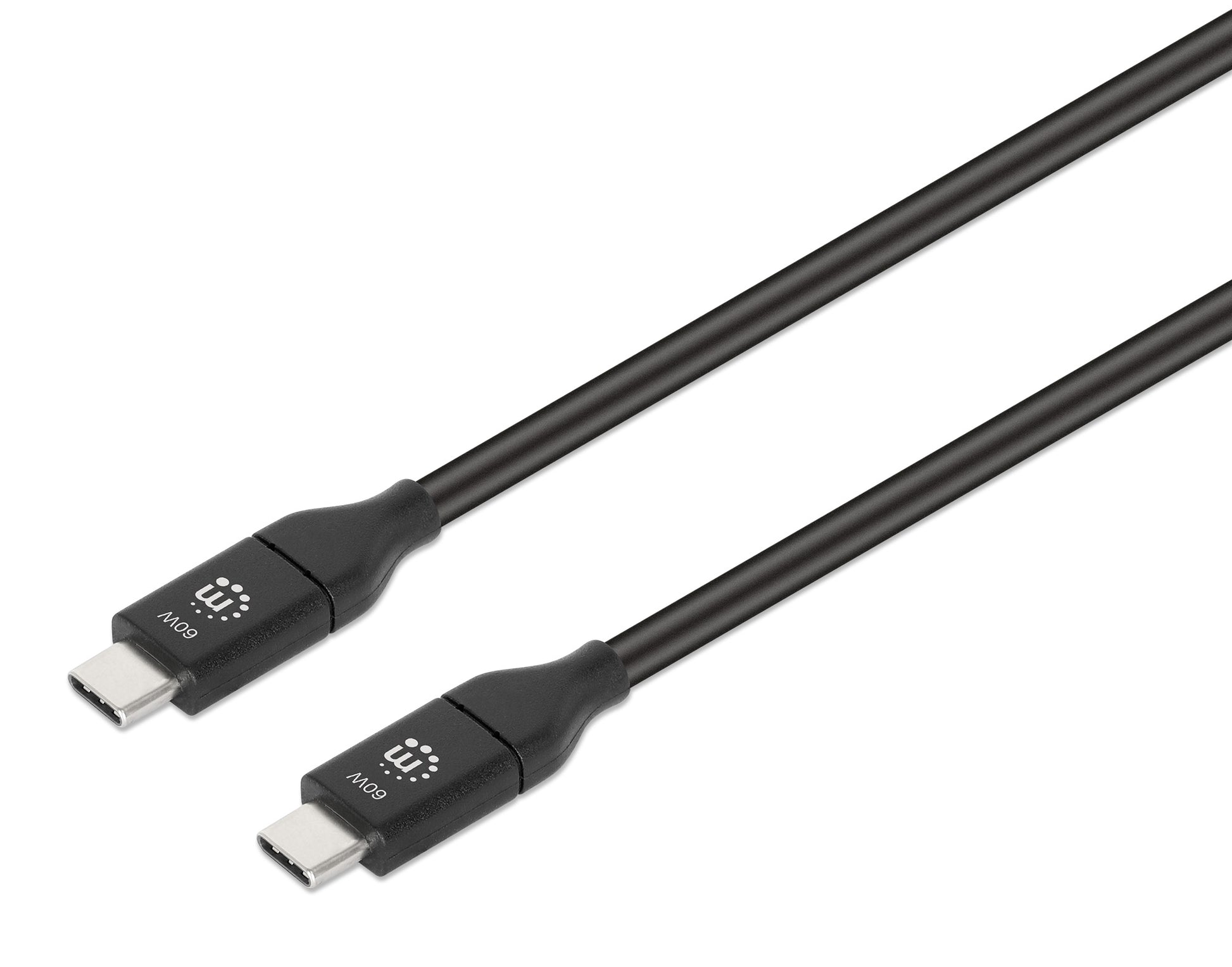

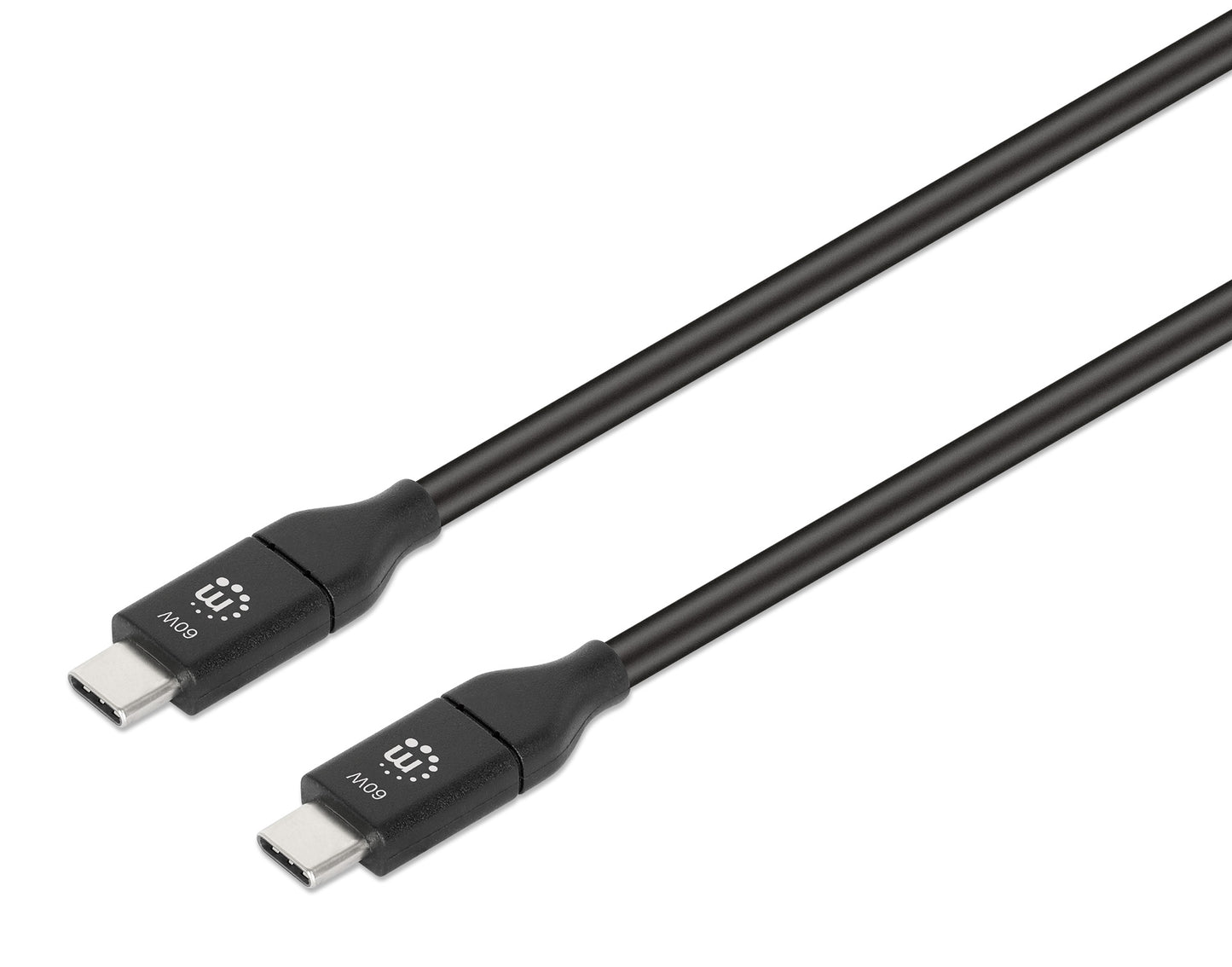

USB 3.2 Gen 2 Type-C Cable, 60 W, 1 m

Manhattan SuperSpeed USB Type-C Cables easily connect USB type-C peripherals and accessories with type-C device ports. Ideal for use with any USB type-C, plug-and-play devices. Manhattan SuperSpeed USB Type-C Cables support data transfer rates up to 10 Gbps on Windows and Mac systems for fast, reliable transmissions and current up to 3 amps. Nickel-plated contacts, shielding and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB-C male to USB-C male

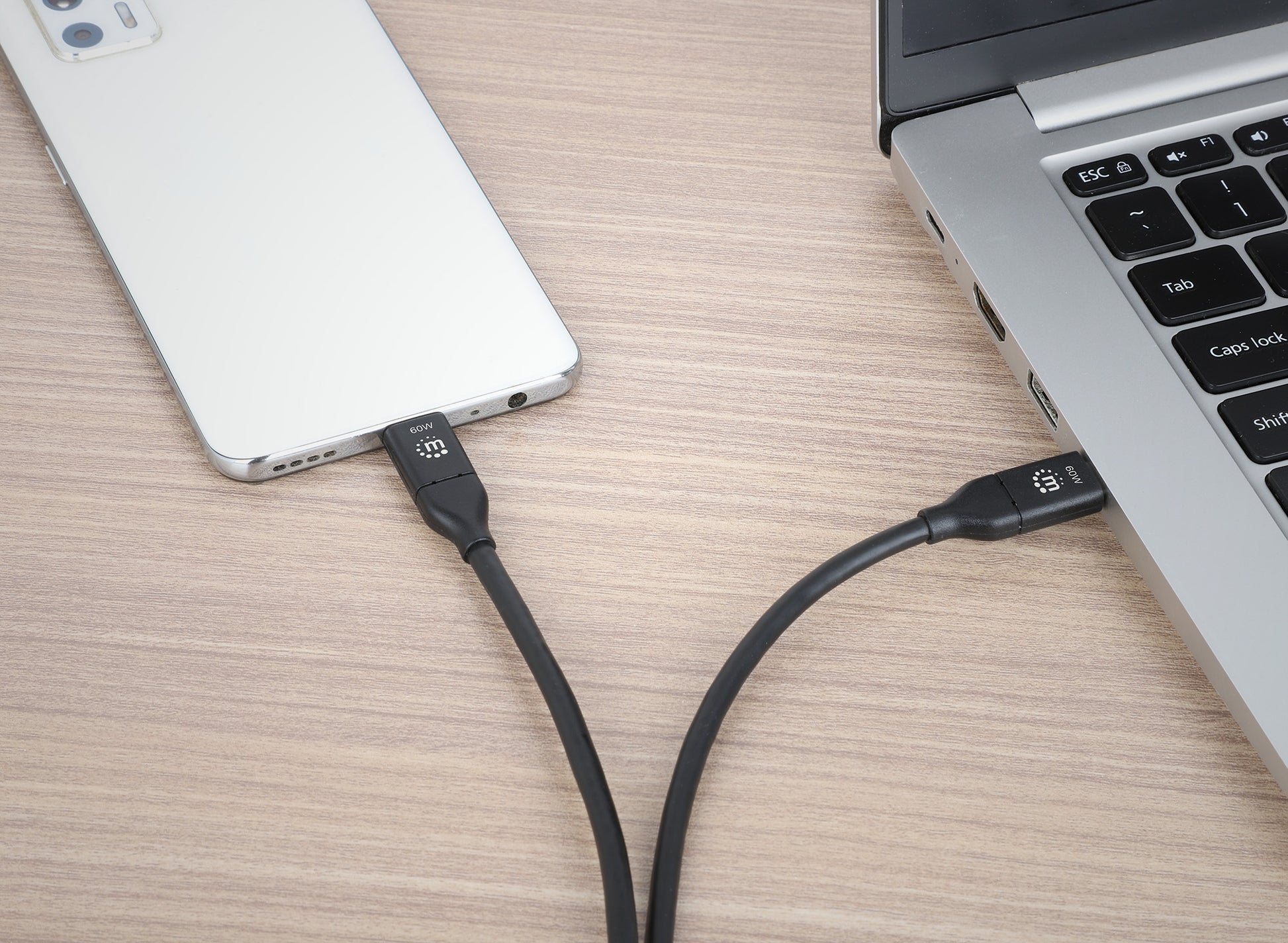

• Connects and charges phones, laptops, tablets or other USB-C devices
• USB 3.2 Gen 2 compliant with SuperSpeed+ transfer rates up to 10 Gbps and charging up to 60 W
• Compliant with DP Alt Mode 1.2 for resolutions up to 4K@60Hz on supported devices and displays
• Lifetime warranty

Standards and Certifications
• CE
• RoHS
• REACH
• UKCA
• USB 3.2 Gen 2
• UL 2725
Connectors
• Two USB-C males
• Nickel plated
• Molded PVC boot
Cable
• Shielded
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 10 MΩ
• Contact resistance: 2 Ω
• Supported power throughput: 60 W
• Thermal plastic casing
• Outer diameter (OD): 5.2 mm (0.2 in.)
• Length: 1 m
• Net weight: 38 g
• Gross weight: 61 g
Package Contents
• SuperSpeed+ USB-C to USB-C Cable

• Other Part Numbers

• Amazon ASIN: B0FHX2D58N
• EAN: 0766623394918
• UPC: 766623394918



• Physical Specifications

• Weight: 0.04 kg
• Dimensions: 1 (L) x 0.015 (W) x 0.014 (H) [m]
• Carton Quantity: 80
• Carton Weight: 5.80 kg

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download

• Manual
• Quick Installation Guide     » Download
