Manhattan

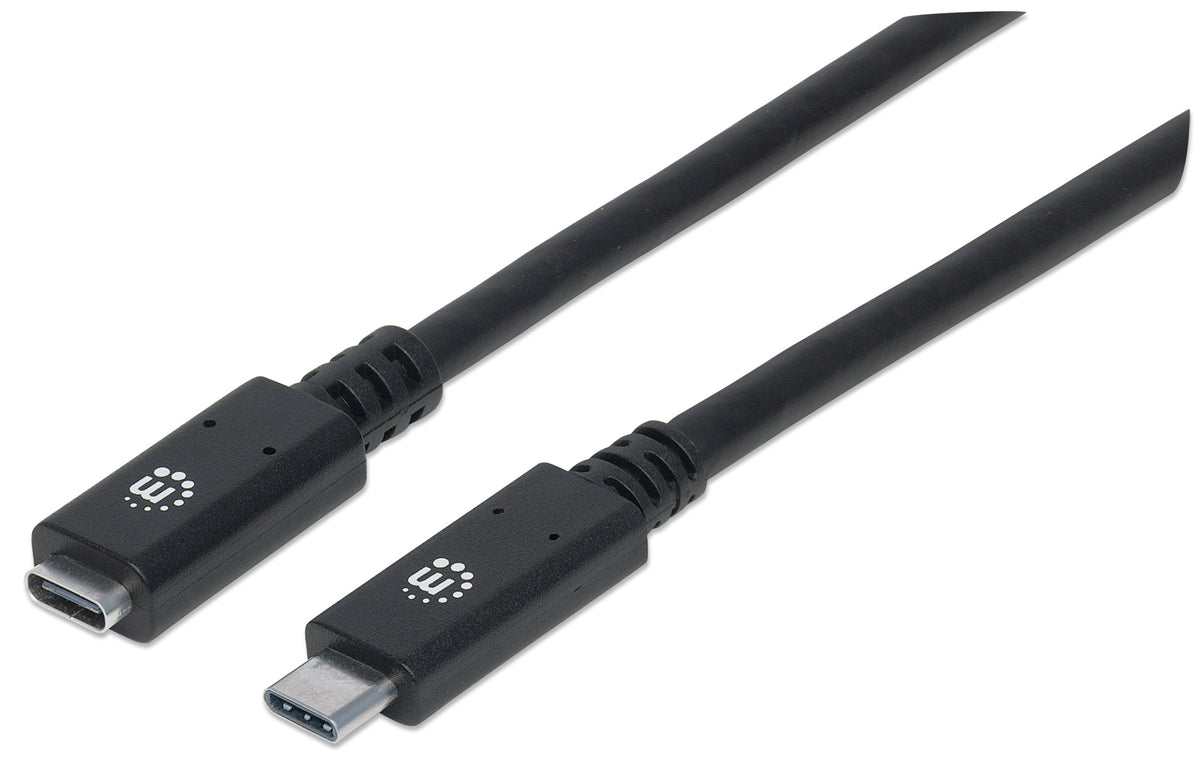

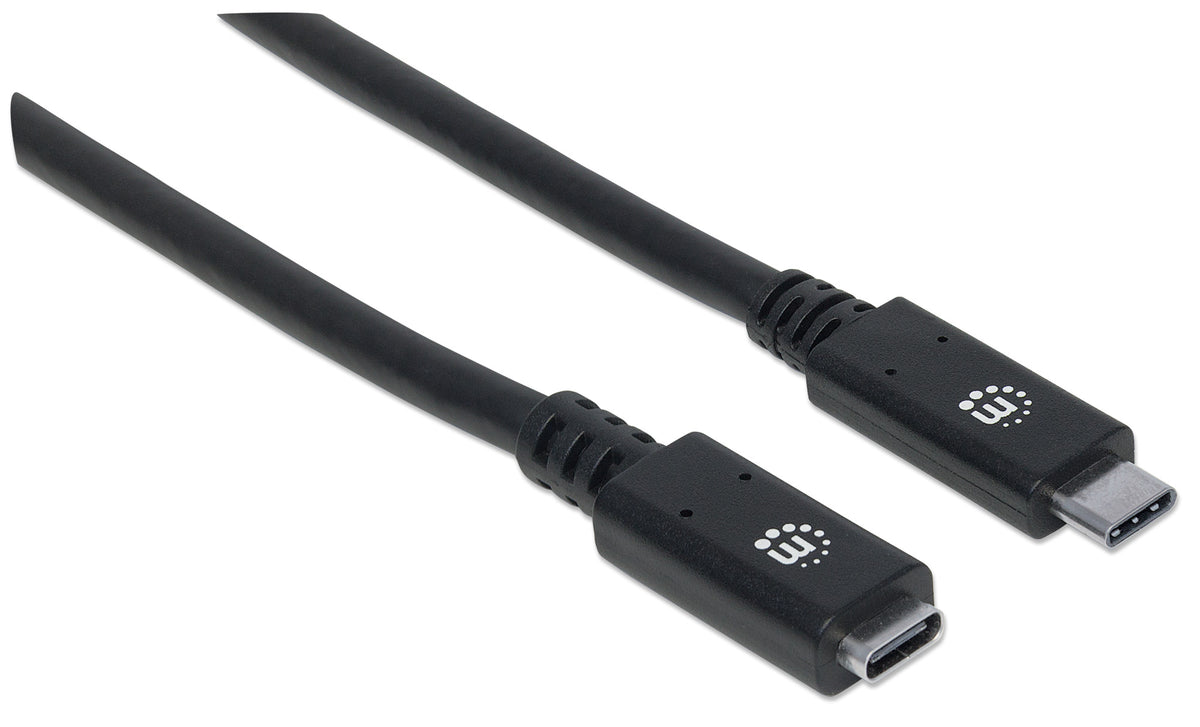

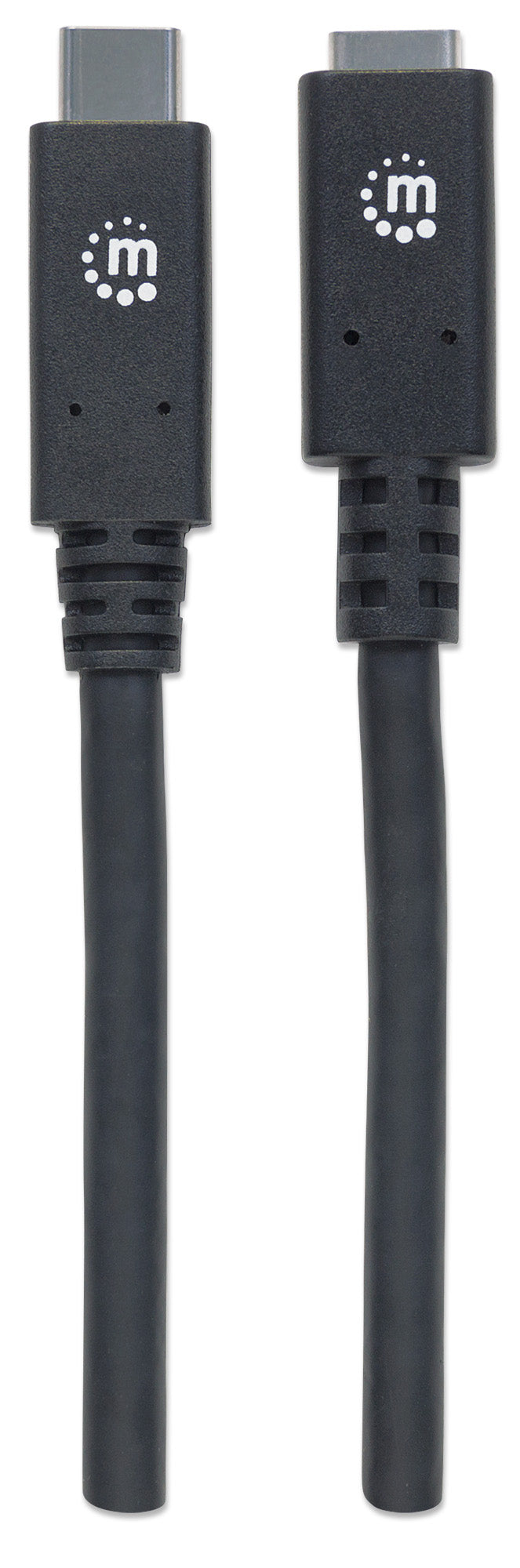

USB 3.2 Gen 2 Type-C Extension Cable

USB 3.2 Gen 2 Type-C Extension Cable

USB-C Male to USB-C Female, 0.5 m (1.5 ft.), SuperSpeed+ USB, 10 Gbps, 100 W / 5 A, 4K@60Hz, Black

Highlights

  • Extends port access for easier device management or adds length to a shorter cable
  • USB-C male to USB-C female
  • Connects and extends a USB 3.2 Gen 2 Type-C device cable to a Gen 2 Type-C port

SKU: 355230

NDAA Compliant
[ view high resolution images ]

The Manhattan SuperSpeed+ USB-C Extension Cable achieves better access to a Type-C port or connection. This extension cable can be used to extend the distance of a Type-C cable, create easier access to a Type-C port, or prevent port wear and tear. Ideal for use with any USB Type-C plug-and-play device, the Manhattan SuperSpeed+ USB-C Extension Cable supports fast, reliable data transfer rates up to 10 Gbps on Windows and Mac systems and current up to 5 amps (100 W). Nickel-plated contacts, shielding and fully molded boots with strain relief provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

  • Extends port access for easier device management or adds length to a shorter cable
  • USB-C male to USB-C female
  • Connects and extends a USB 3.2 Gen 2 Type-C device cable to a Gen 2 Type-C port
  • Supports speeds of up to 10 Gbps
  • Supports current of up to 5 A (100 W)
  • USB-C compliance with DisplayPort 1.2 Alternate Mode (DP Alt Mode) for resolutions up to 4K@60Hz on supported devices and displays
  • SuperSpeed+ USB for ultra-fast data transfer rates with zero data degradation
  • Lifetime Warranty

    Standards and Certifications
  • UL 2725
  • USB 3.2 Gen 2

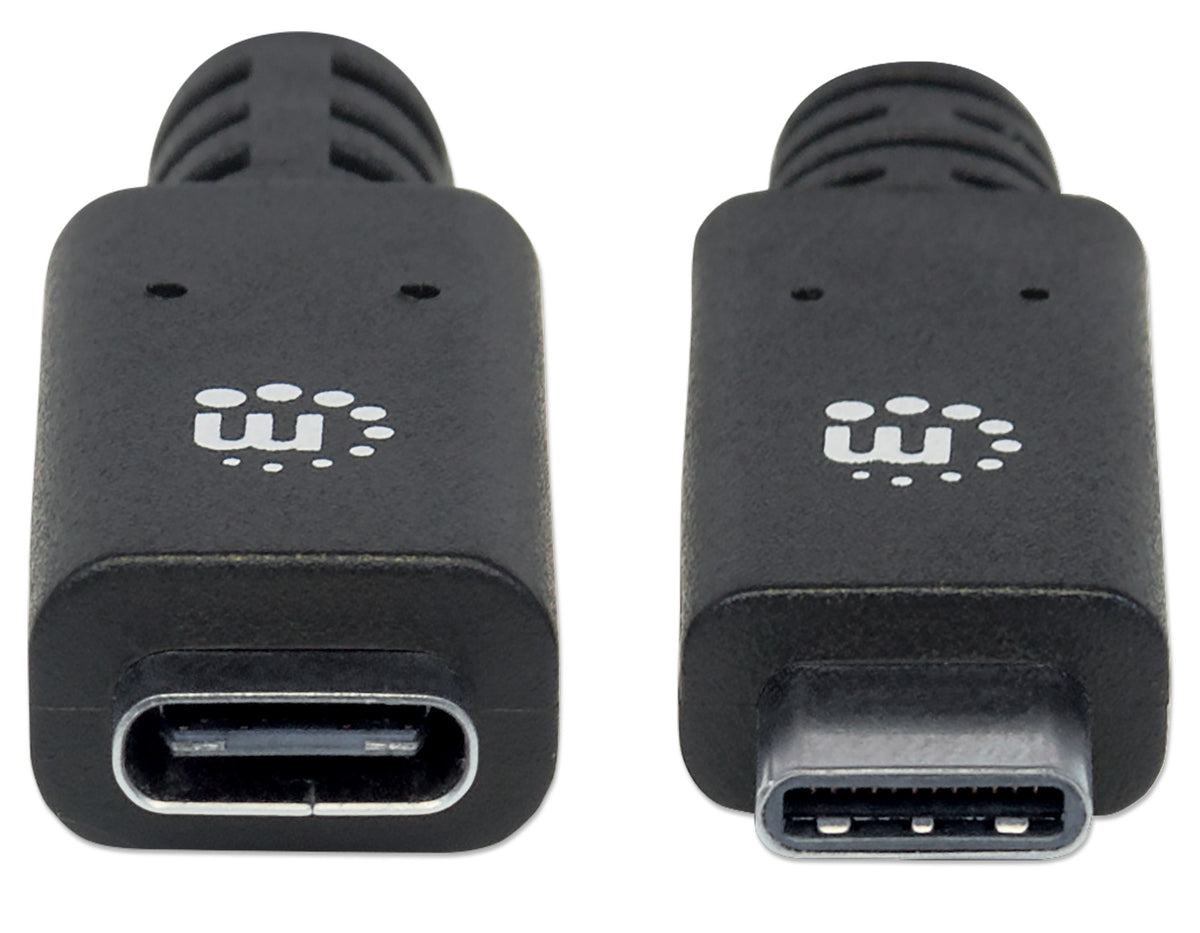

  • Connectors
  • USB-C male
  • USB-C female
  • Nickel plated
  • Molded PVC boot
  • Cable
  • Shielded
  • Withstanding voltage: 300 VDC 10 ms
  • Insulation resistance: 10 MΩ min.
  • Contact resistance: 2 Ω max.
  • Thermal plastic casing
  • Outer diameter (OD): 5.8 mm (0.23 in.)

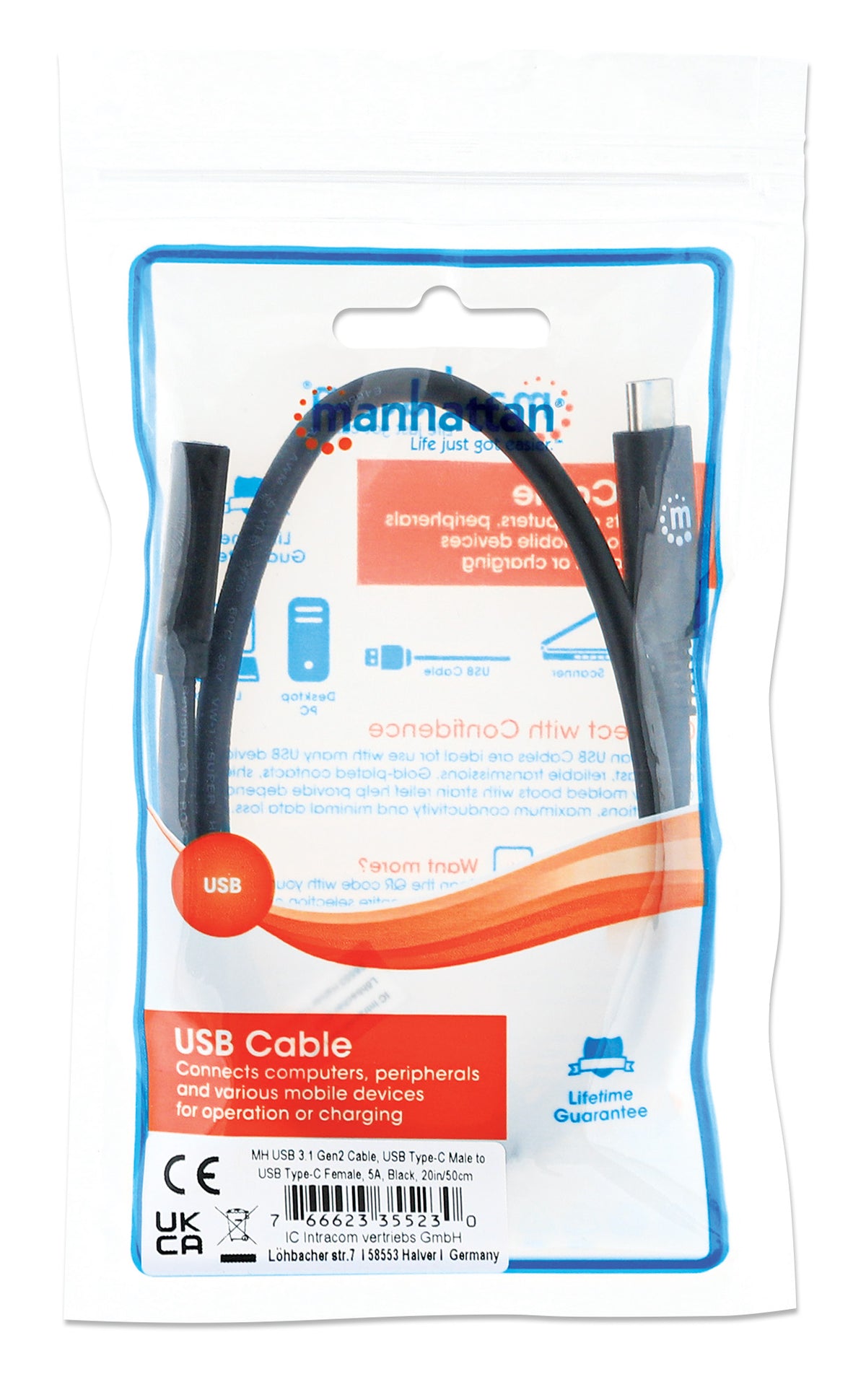

  • Package Contents
  • SuperSpeed+ USB-C Extension Cable

  • Other Part Numbers

    • Amazon ASIN: B079T12PGY
    • EAN: 0766623355230
    • UPC: 766623355230

  • Physical Specifications

    • Weight: 0.03 kg
    • Dimensions: 500 mm
    • Carton Quantity: 150
    • Carton Weight: 5.40 kg

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download

    • Declaration of Conformity     » Download
