Manhattan

USB-A to Serial Converter, 1.8 m (6 ft.)

Prolific PL-2303 Chip, Polybag, DB9 / RS232 Adapter Connects One Serial Device to a USB Port

Highlights

Quickly converts a USB port to a Serial/RS232/COM/DB9 port
The customizable and compatible Prolific PL-2303 chipset makes it the ideal solution for many OSs and platforms
Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more

SKU: 151849

[ view high resolution images ]

Easily connect serial devices through a USB port

Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and Prolific PL-2303 chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.

Quality Construction and Easy Installation

Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.

Quickly converts a USB port to a Serial/RS232/COM/DB9 port
The customizable and compatible Prolific PL-2303 chipset makes it the ideal solution for many OSs and platforms
Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech. devices
Chipsets PL-2303 and FTDI FT232RL configurations are also available at ManhattanProducts.com
Windows compatible; plug and play; hot-swappable
Three-year warranty

CE
FCC
USB 1.0
USB 1.1
RoHS
WEEE
USB port; type-A male

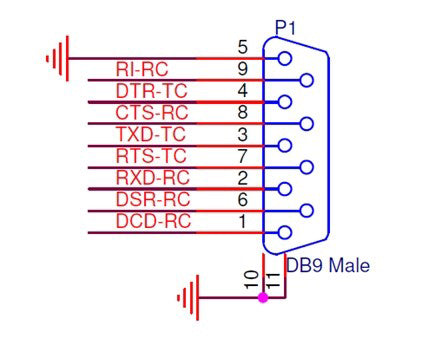

Serial/COM/RS232/DB9 port; 9-pin male
Transfer rate: up to 115 kbps
Bus powered
Prolific PL-2303 chipset
24 AWG cable gauge
Cable length: 1.8 m (6 ft.)
Weight: 165 g (5.8 oz.)
Windows XP/Vista/7/8/8.1/10 or Linux or Mac 9.x/10.x or above
USB to Serial Converter
Instructions

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Other Part Numbers

Amazon ASIN: B01E0R8KIM
EAN: 0766623151849
UPC: 766623151849

Physical Specifications

Weight: 0.07 kg
Dimensions: 1.8 (L) x 0 (W) x 0 (H) [m]
Carton Quantity: 100
Carton Weight: 8.80 kg

Datasheet

Datasheet » Download

Declaration of Conformity » Download

Driver

Driver (MAC OS X)
(10.6 -> 10.12) » Download

Driver (Linux) » Download

Driver Installer for Windows
- WDF Driver: v3.8.25.0 (7/12/2018) - Windows 7/8.1/10
- WDM Driver: v3.8.24.0 (7/05/2018) - Windows XP » Download

Driver 1.12.0 for Windows
For Windows 10 (32 & 64-bit), Windows Vista, 7, 8, 8.1 (32 & 64-bit), Windows Server 2008, 2008R2, Server 2012, Server 2012R2 (64-bit), Windows 2000, XP, Server 2003 (32 & 64-bit) » Download

Mac OS X Universal Binary Driver v2.1.0
For Mac OS Big Sur (version 11) - see NOTE below
For Mac OS Catalina (version 10.15) .
For Mac OS High Sierra (version 10.14)
For Mac OS High Sierra (version 10.13)
For Mac OS X Sierra (version 10.12)
For Mac OS X El Capitan (version 10.11)
For Mac OS X Yosemite (version 10.10)
For Mac OS X Mavericks (version 10.9)
For PL2303 H/HX/HXD/EA/RA/SA/TA/TB chip versions
For Prolific USB VID_067B&PID_2303 Only
For PL2303GC, GS, GT, GL, GE , GD, GR chip versions
Includes Driver Installation Manual » Download
