Manhattan

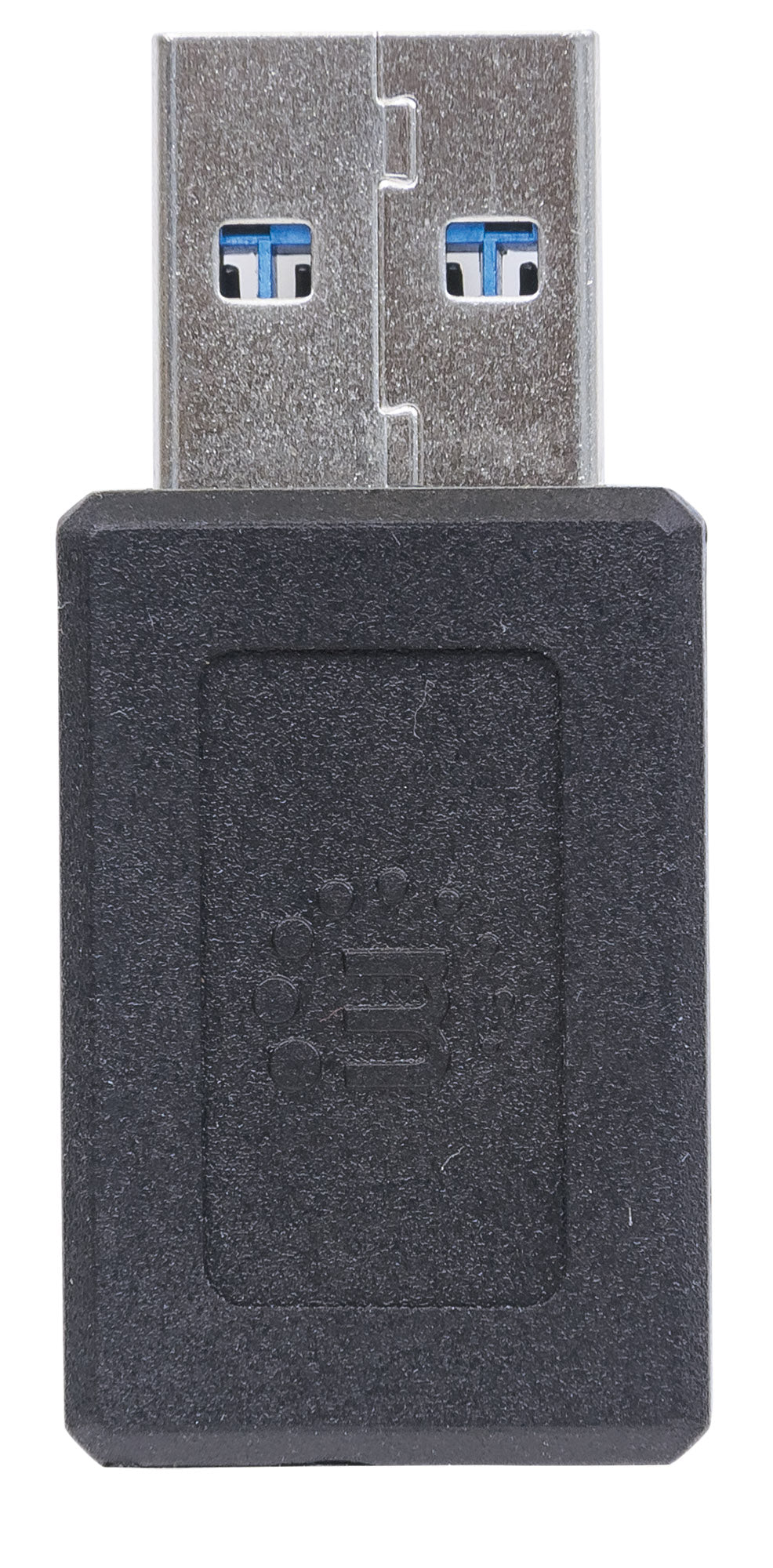

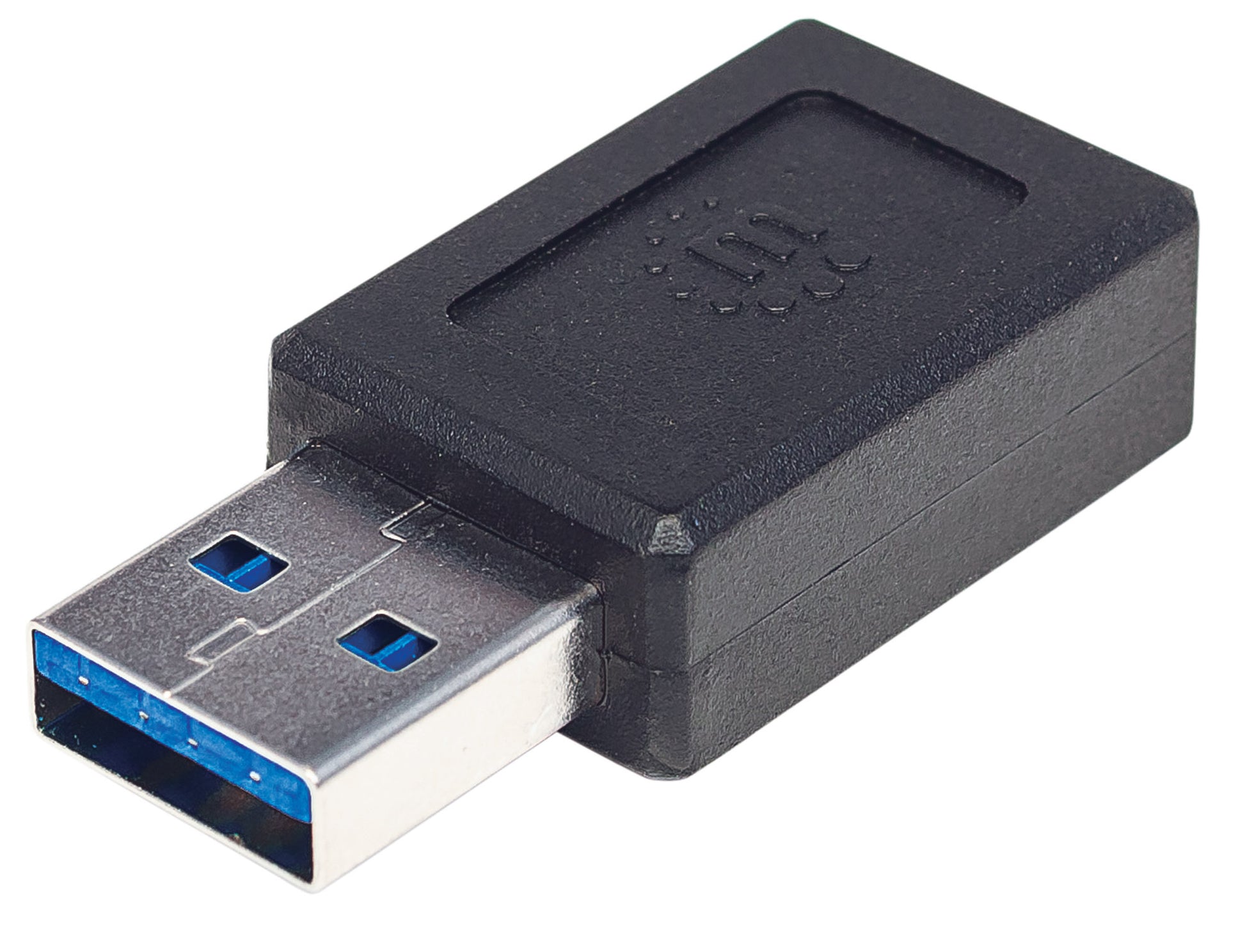

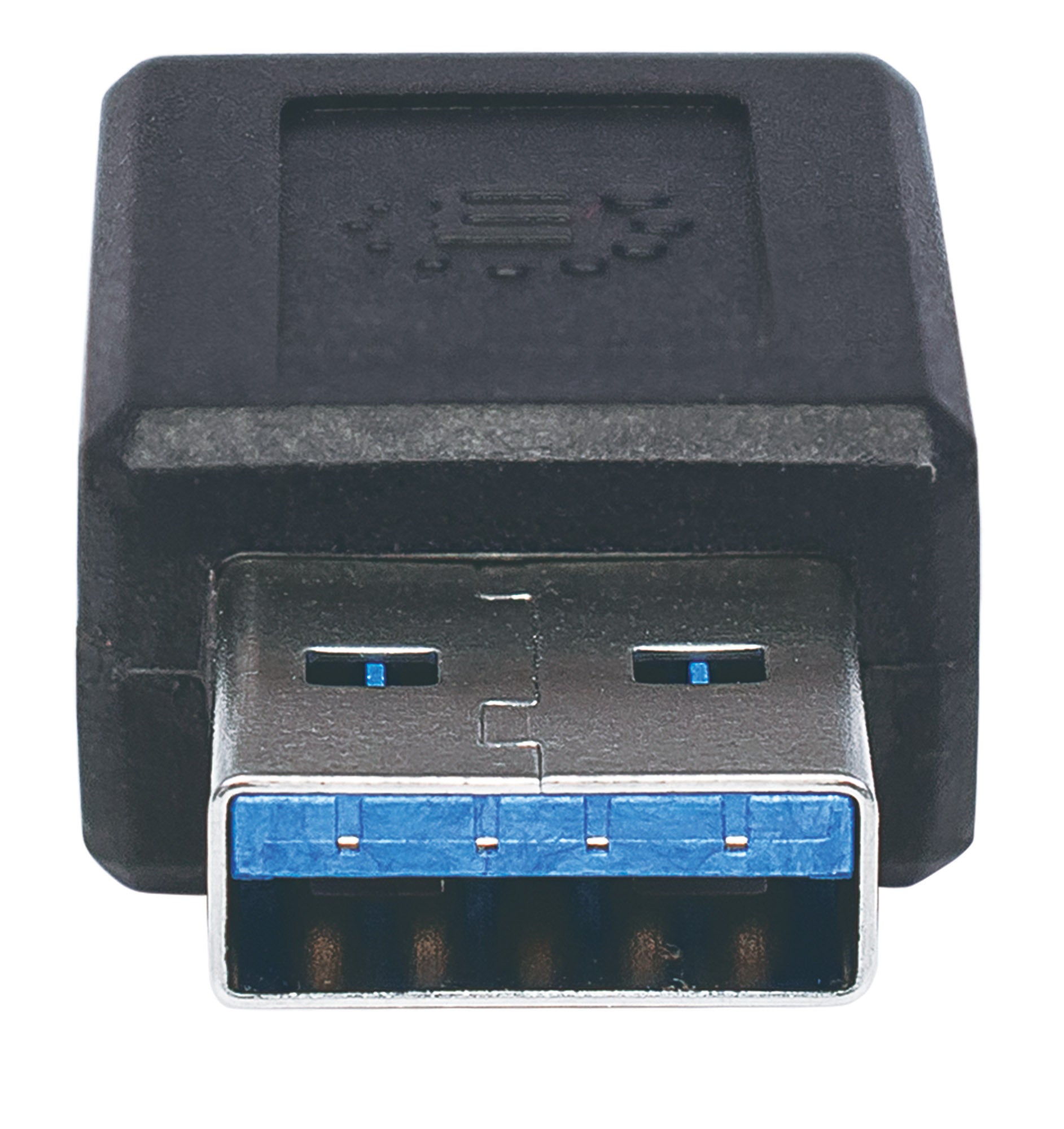

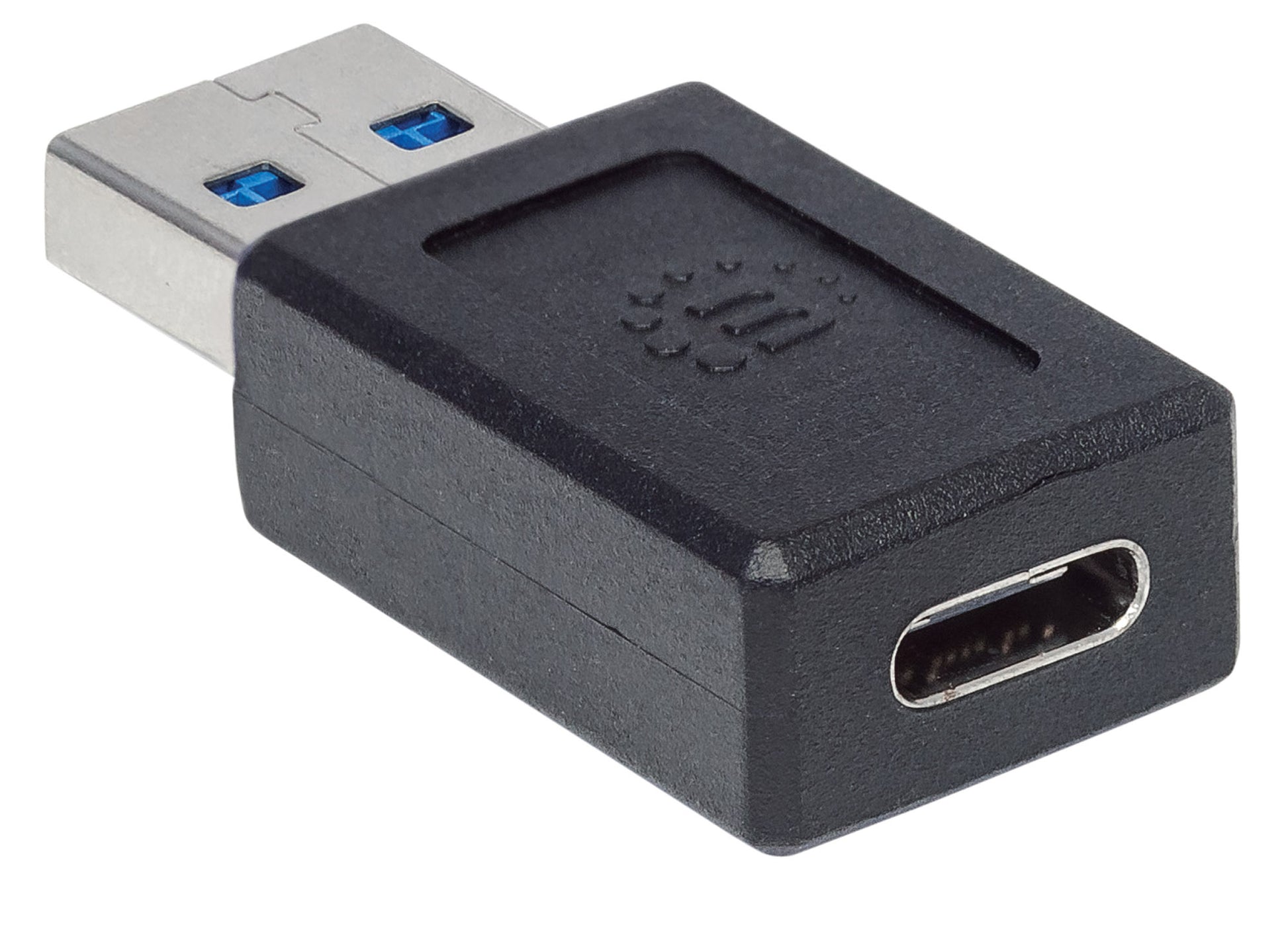

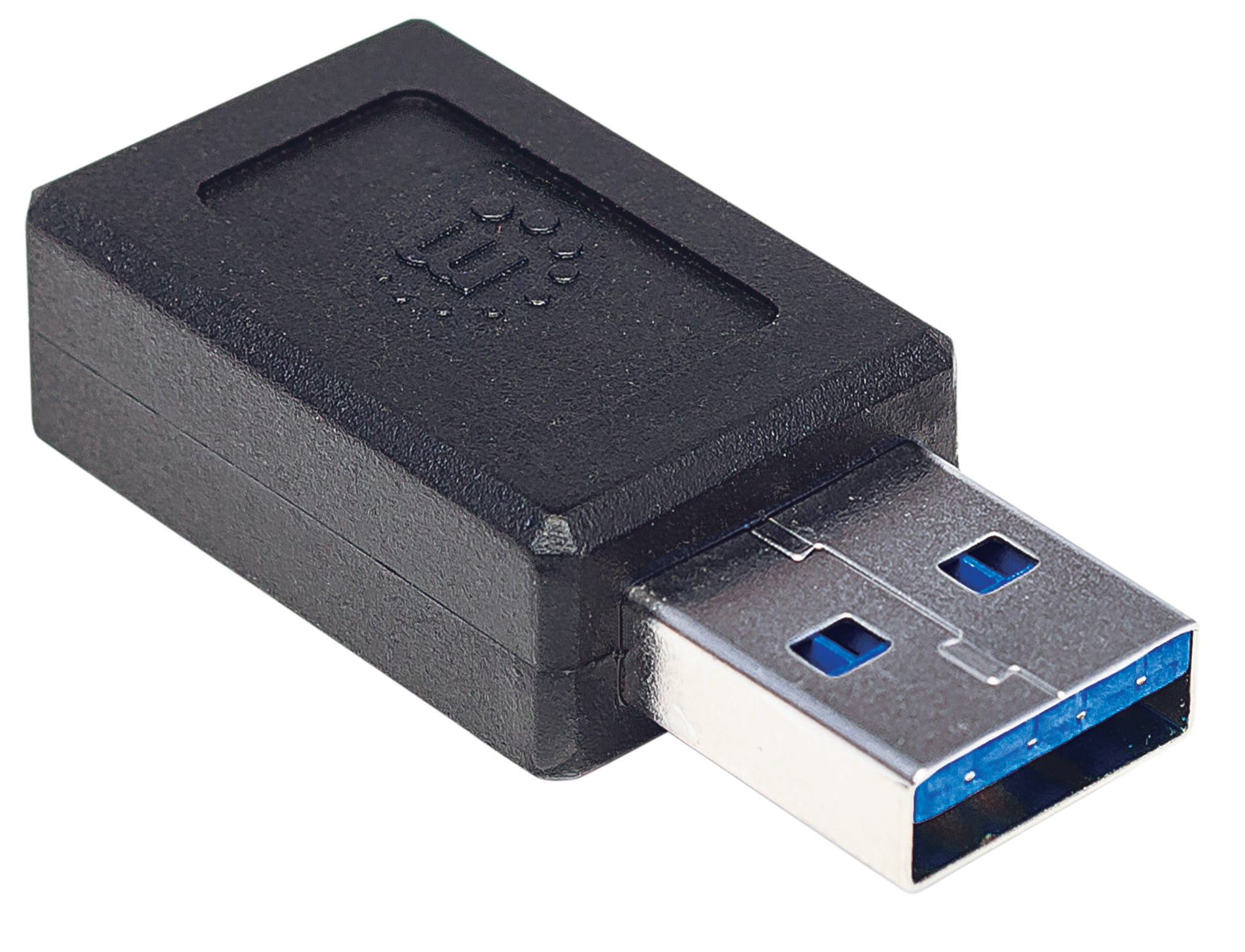

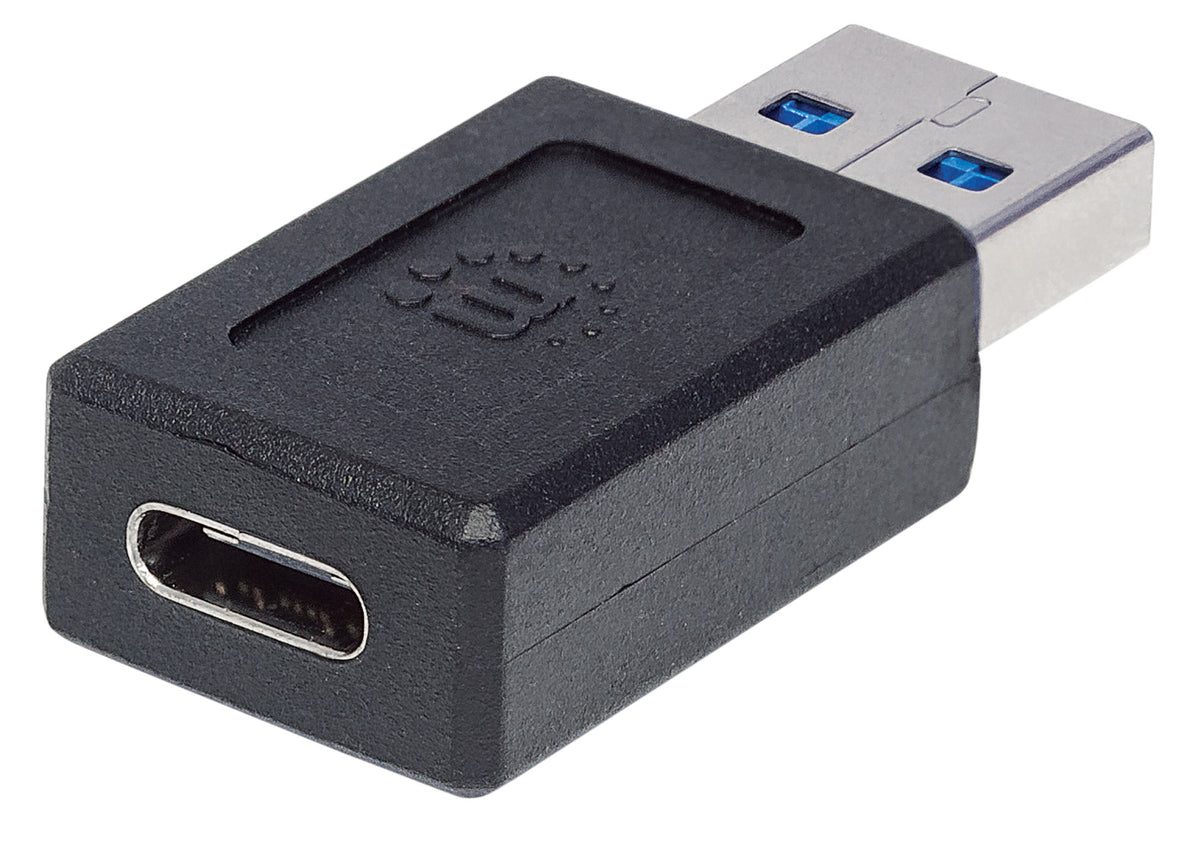

USB-A to USB-C Adapter

USB-A to USB-C Adapter

USB 3.2 Gen 2 Type-A Male to Type-C Female, 10 Gbps SuperSpeed+ USB, 3 A, Black

Highlights

  • USB-A adapter for use with USB-C cables
  • Connects USB-C cable or device — i.e. hub, card reader, etc. — to Type-A port, allowing devices to charge and sync
  • Supports speeds up to 10 Gbps and 3 A charging

SKU: 354714

NDAA Compliant
[ view high resolution images ]

Type-A to Type-C USB Adapter - Connect new technology to legacy ones with ultra-fast 10G

The Manhattan USB 3.2 Gen 2 Type-C to Type-A Adapter is an ultra-compact adapter that allows a USB-C cable or device to connect to a USB Type-A port. Measuring only 27 millimeters (1 in.), the adapter is designed with portability and simplicity in mind. With charge and sync capabilities at up to 3 A and 10 Gbps respectively, you will quickly and easily keep your device ready for whatever is next.

  • USB-A adapter for use with USB-C cables
  • Connects USB-C cable or device — i.e. hub, card reader, etc. — to Type-A port, allowing devices to charge and sync
  • Supports speeds up to 10 Gbps and 3 A charging
  • Nickel-plated connections for best performance
  • Ultra-compact, portable design
  • Lifetime Warranty

    Standards and Certifications
  • USB 3.2 Gen 2
  • General
  • Nickel plated
  • Molded ABS boot
  • 56K Ω resistor
  • Connections
  • One 9-pin USB Type-A (male)
  • One 24-pin USB Type-C (female)
  • Electrical
  • Insulation resistance: 5M Ω
  • Contact resistance: 2 Ω
  • Physical
  • 27 x 17 x 10 mm (1 x 0.7 x 0.4 in.)
  • 8.5 g (0.3 oz)
  • Operating Environment
  • Operation Temperature: 32 – 104°F (0 – 40°C)
  • Storage Temperature: -4 – 140°F (-20 – 60°C)
  • Humidity (noncondensing): 0 – 96%

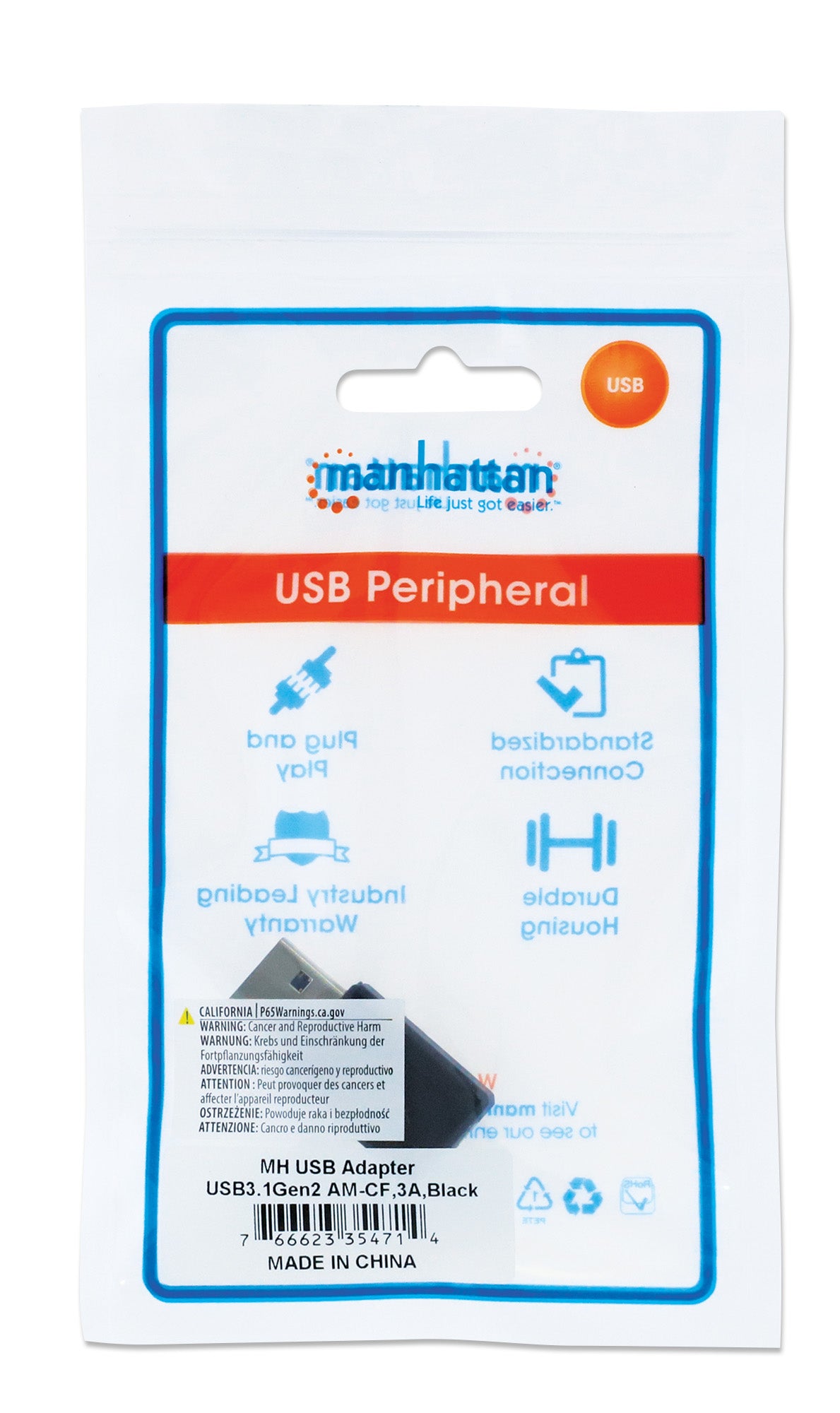

  • Package contents
  • USB 3.1 Gen2 Type-C to Type-A Adapter

California Proposition 65 WarningWarning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • Amazon ASIN: B0765SGJ68
    • EAN: 0766623354714
    • UPC: 766623354714

  • Physical Specifications

    • Weight: 0.01 kg
    • Dimensions: 38 (L) x 17.2 (W) x 10.2 (H) [mm]
    • Carton Quantity: 500
    • Carton Weight: 7.00 kg

  • Datasheet
    • Datasheet     » Download

    • Technical Drawing     » Download

    • Declaration of Conformity     » Download
